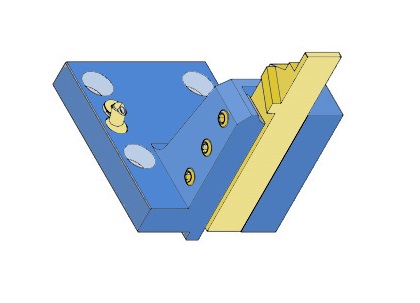

BMT BOLT PATTERN 69x71 CUT OFF HOLDER R=20 mm REVERSE SPINDLE ROTATION FOR NAKAMURA WT300
THS007327
Compatible lathes
- NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809,
- NAKAMURA SC-300L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, BEVEL GEAR,
- NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
$ USD
58600
58600

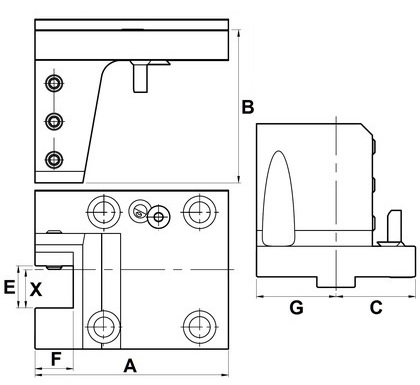

| SKU | NAKAMURA LATHE | X | A | B | C | E | F |
| THS007325 | NAKAMURA WT-150 | 20 | 101 | 80 | 41.5 | 22 | 20 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS007324 BMT44 BOLT PATTERN 40x55 CUT OFF HOLDER H=20 mm REVERSE ROTATION FOR NAKAMURA NTJ100 | ||||||
| STRIGHT | 20 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT | |
| THS007325 BMT BOLT PATTERN 50x60 CUT OFF HOLDER R=25 mm SPINDLE REVERSE ROTATION FOR NAKAMURA WT150 | ||||||
| STRIGHT |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT | ||
| THS007326 BMT44 BOLT PATTERN 40x55 CUT OFF HOLDER H=20 mm REVERSE FOR NAKAMURA WT100 | ||||||
| STRIGHT | 20 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT | |
| THS007327 BMT BOLT PATTERN 69x71 CUT OFF HOLDER R=20 mm REVERSE SPINDLE ROTATION FOR NAKAMURA WT300 | ||||||
| STRIGHT |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT | ||
Updated 202305
Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-BOLT PATTERN 69x71 NAKAMURA WT300, STATIC, ANY
COMPATIBLE LATHES
NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, ; NAKAMURA SC-300L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, BEVEL GEAR, ; NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS;
