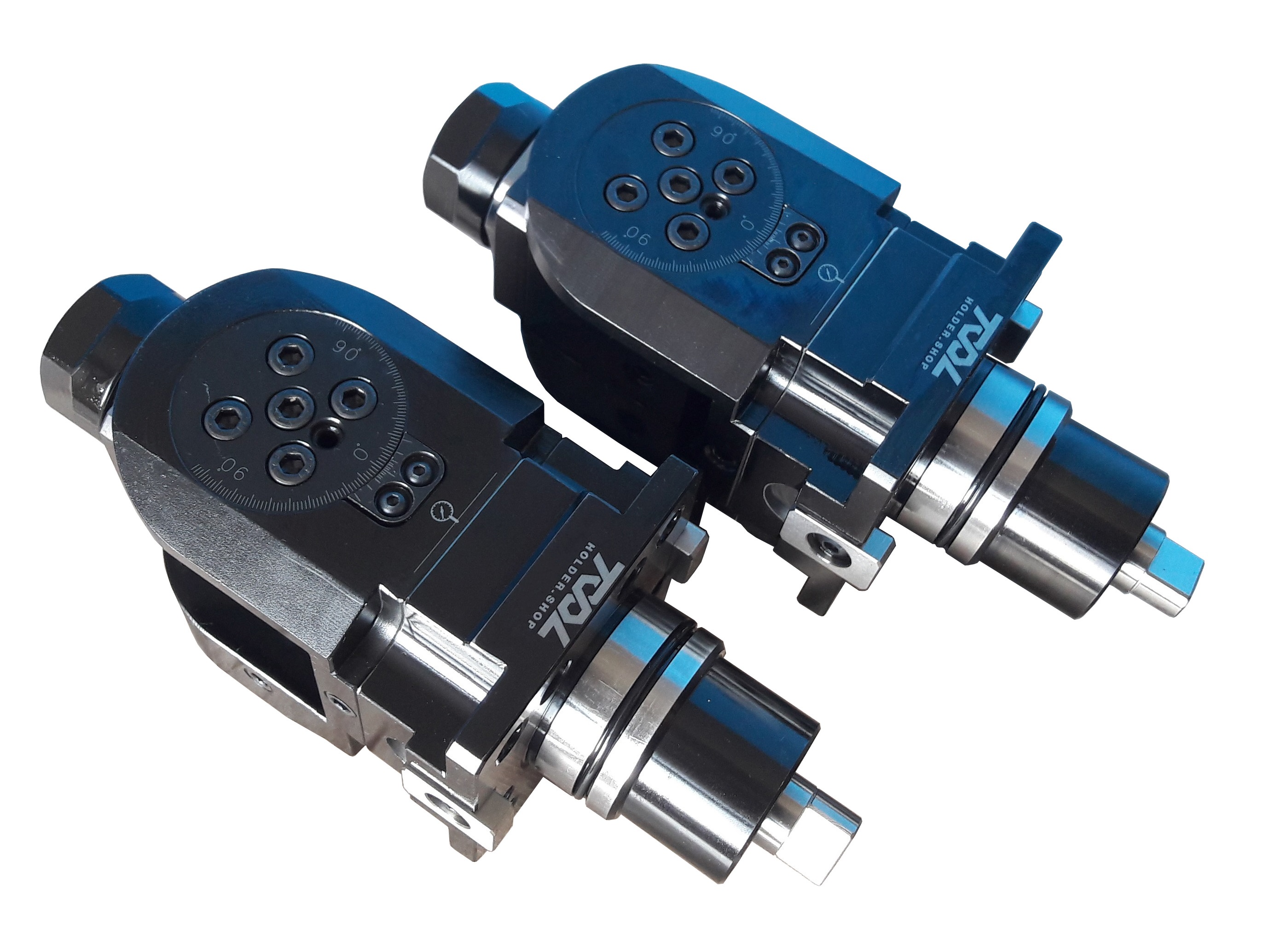

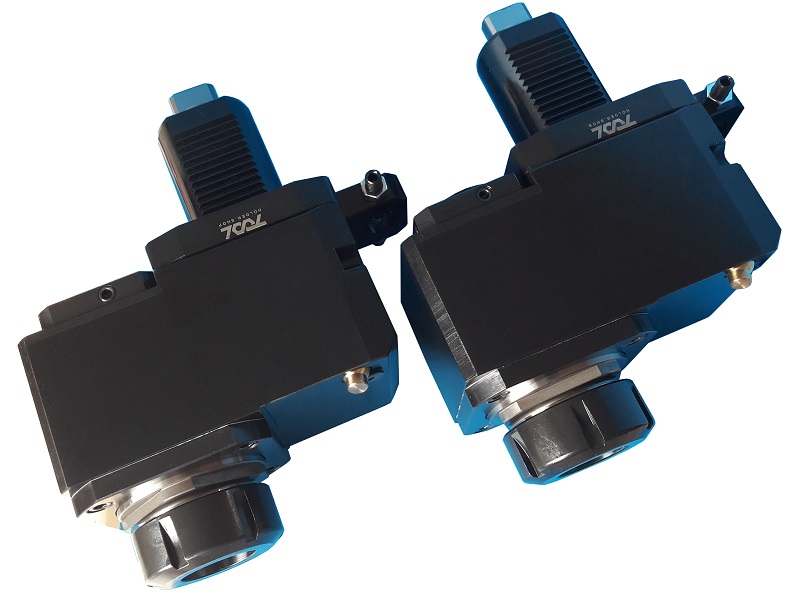

Universal live tooling for Biglia Recently completed project for customer in CA, USA. Two fantastic universally adjustable live heads for Biglia style machine.

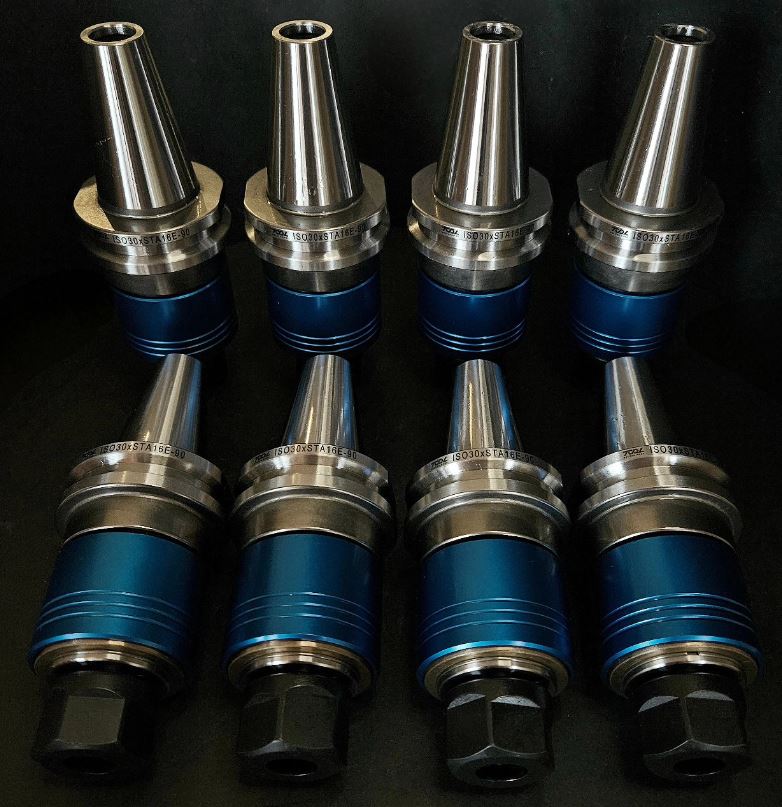

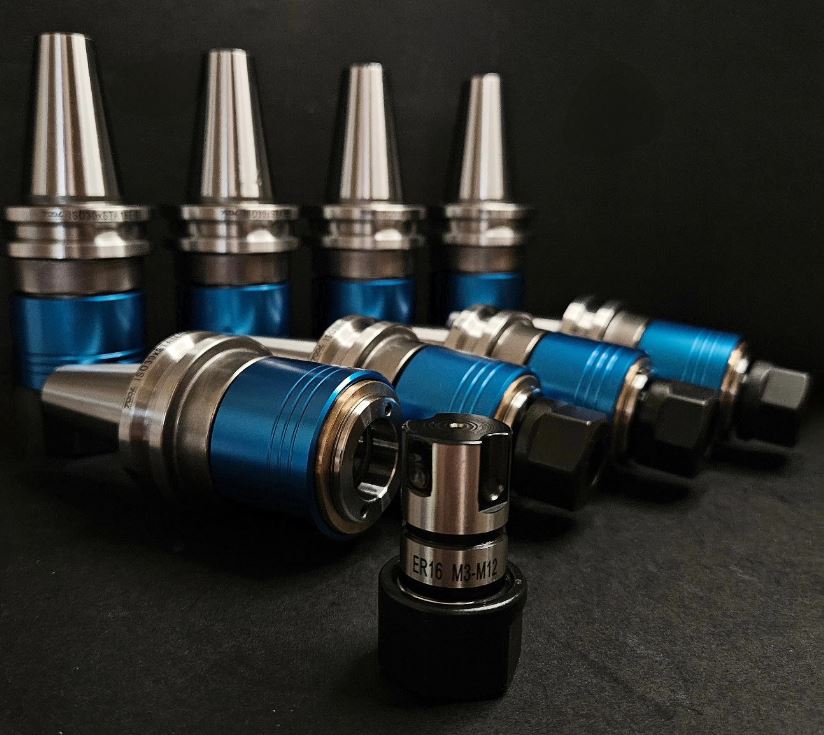

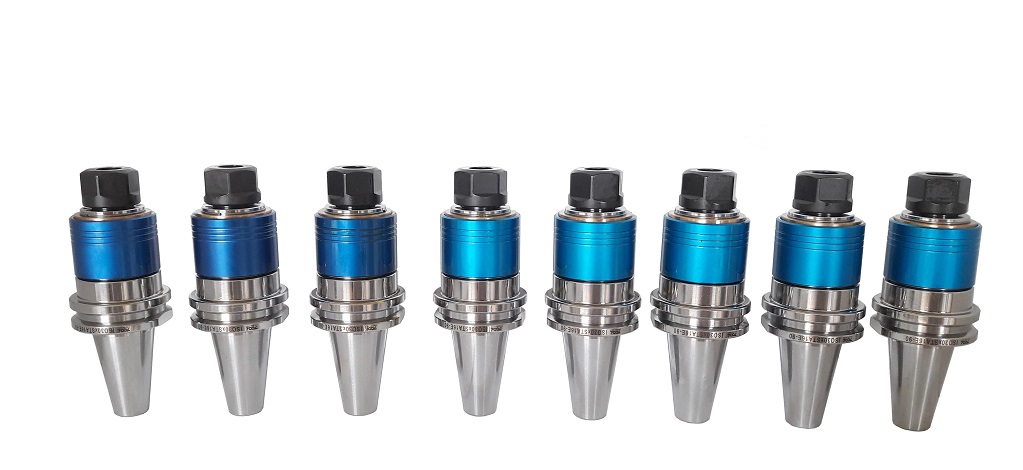

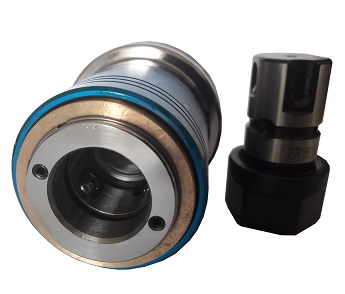

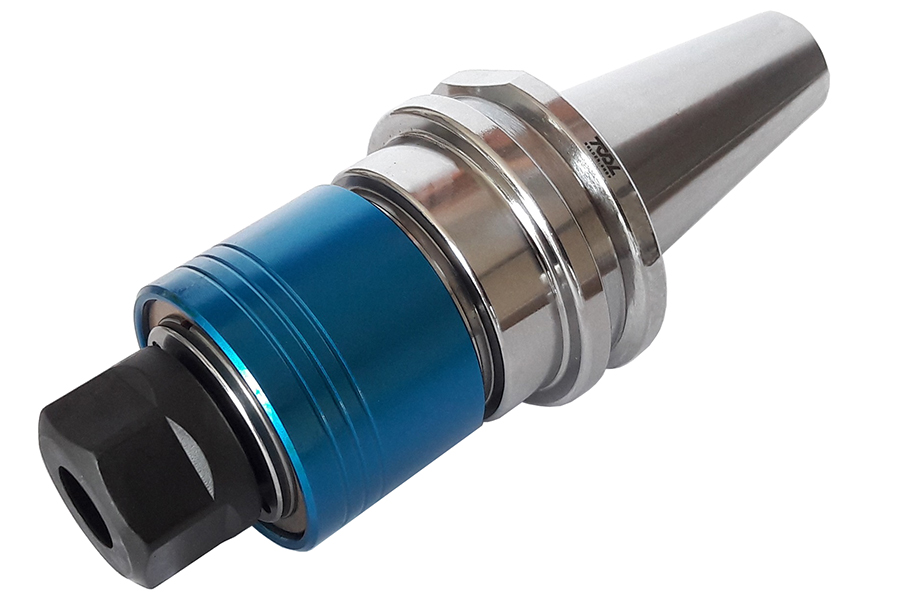

ISO30 compensating tapping  chuck.jpg Custom project for a customer in Alberta, Canada.
The customer's requirement was to make a compensating tapping holder with ISO30 taper without slots.
We made this special ISO30 taper and went beyond the customer's expectation providing compensation chuck with quick change function.
Total 8 units were made.

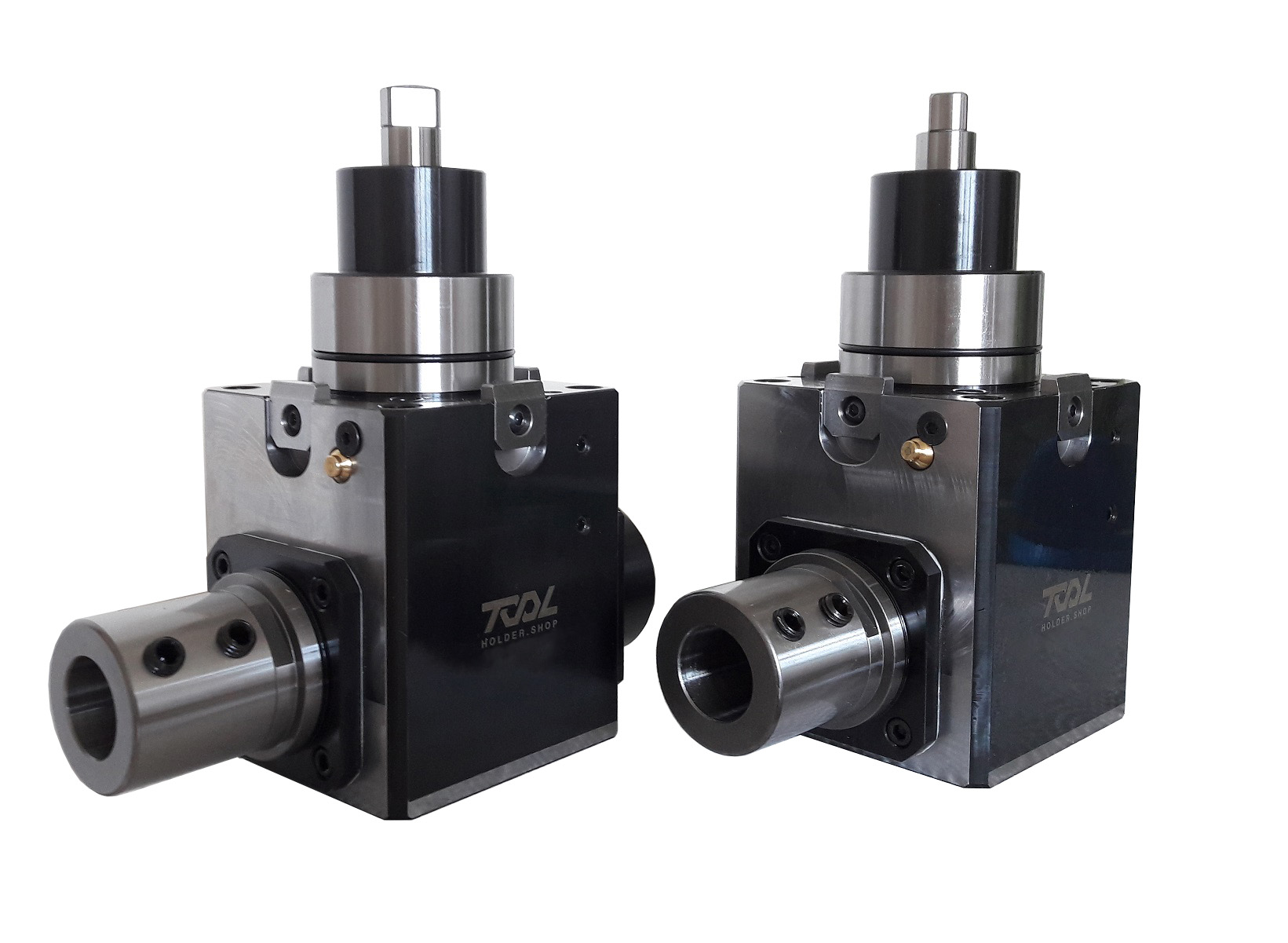

Custom made U-drill 90 degree live BMT75 heads Inch size ID side lock and coolant through spindle (CTS) were built for customer in Iowa, USA
Two heads were made in 30 days lead time.

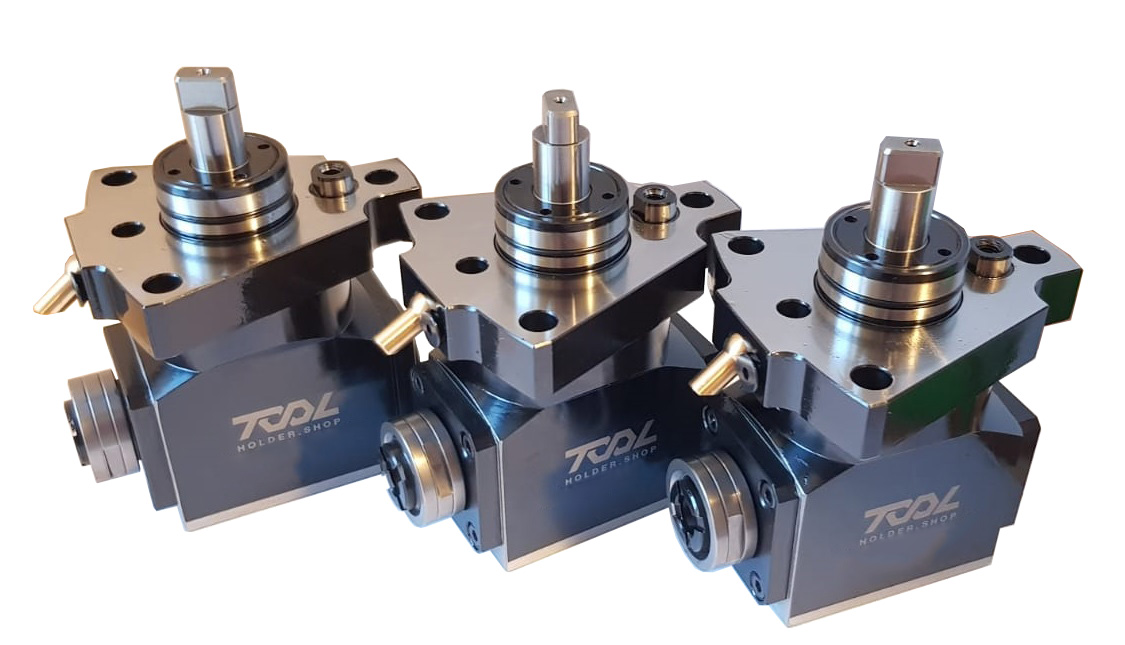

Customer in Vietnam ordered exotic radial live heads for MURATEC CNC lathe. The special requirement was that the heads must have had short collet chuck projection to gain some extra space in the cutting area for the customer's special application.
The lead time was 60 days to make 3 heads.

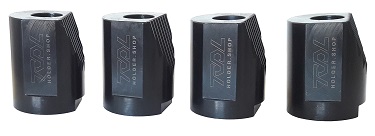

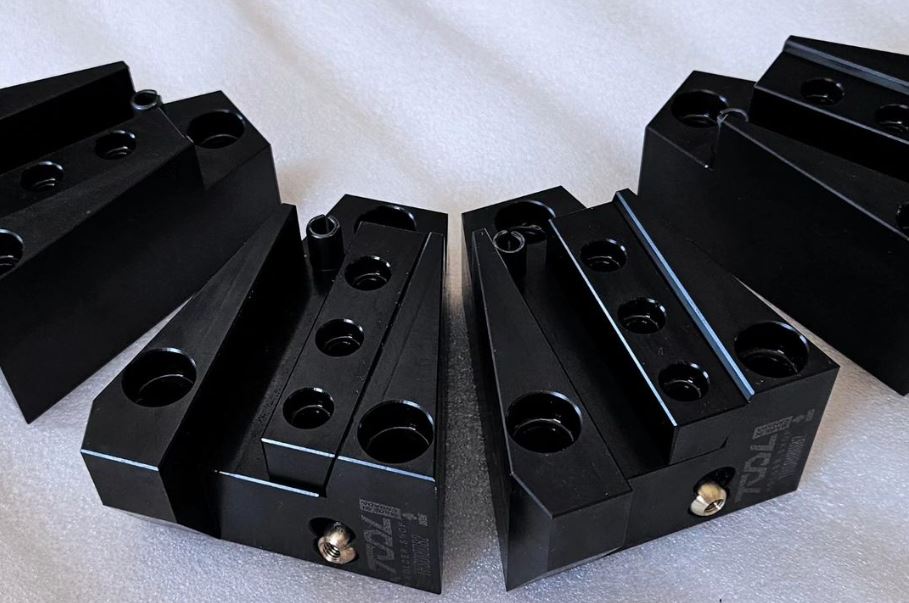

Custom made concentric wedges were made for a company in NY, USA

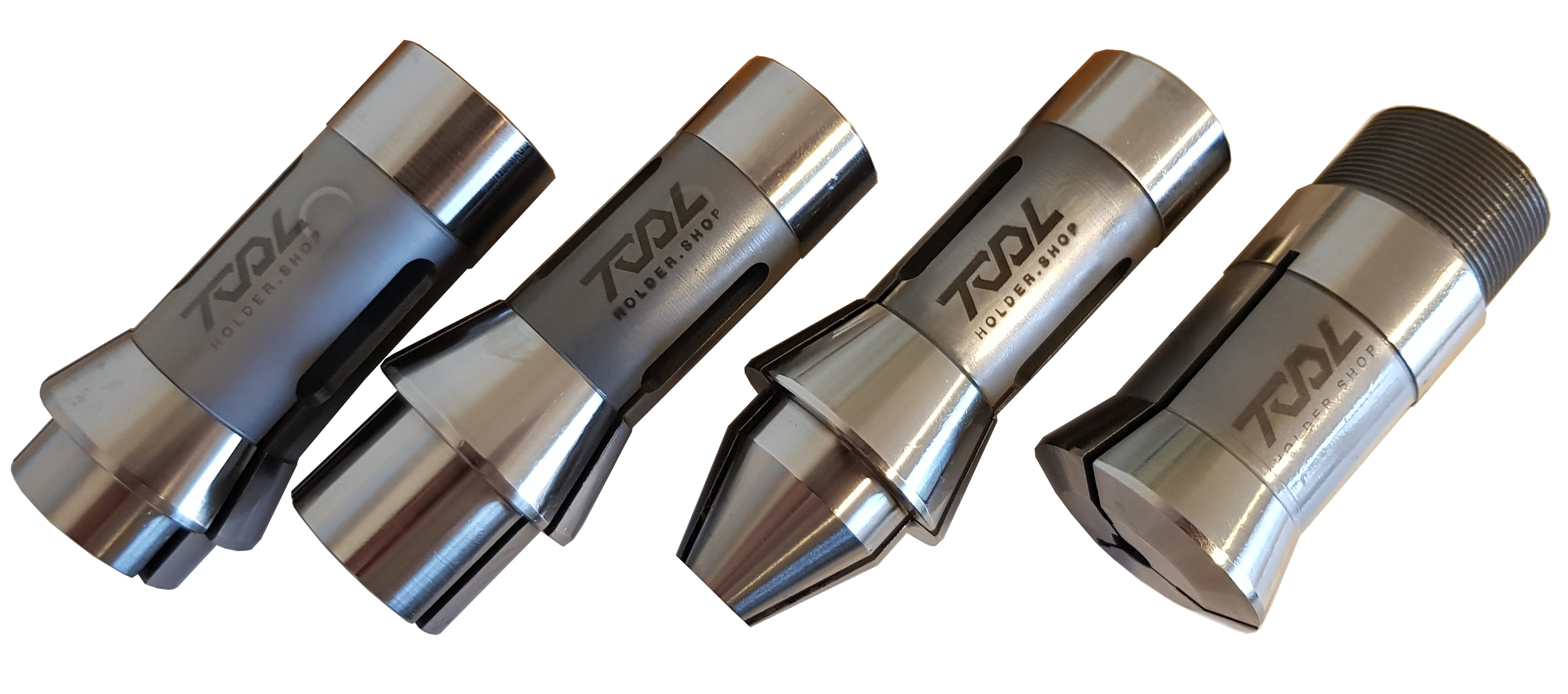

Swiss type collets Needless to say that our Swiss type collets are all made as custom orders. Carbide, hex, square, grooved bores are available.

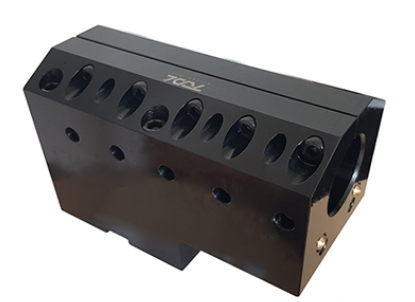

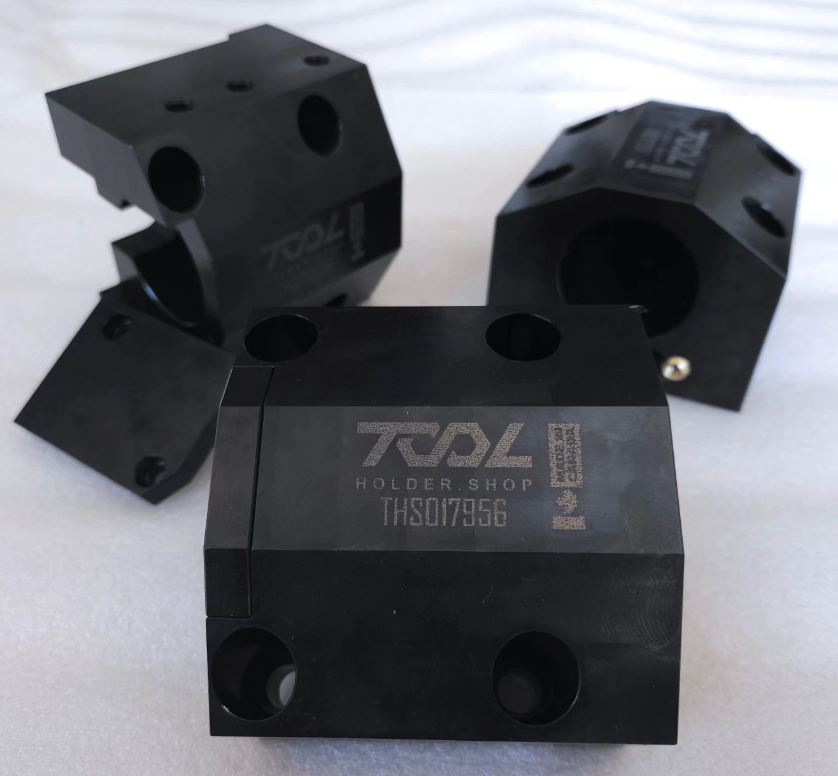

BMT85 Split boring bar holder

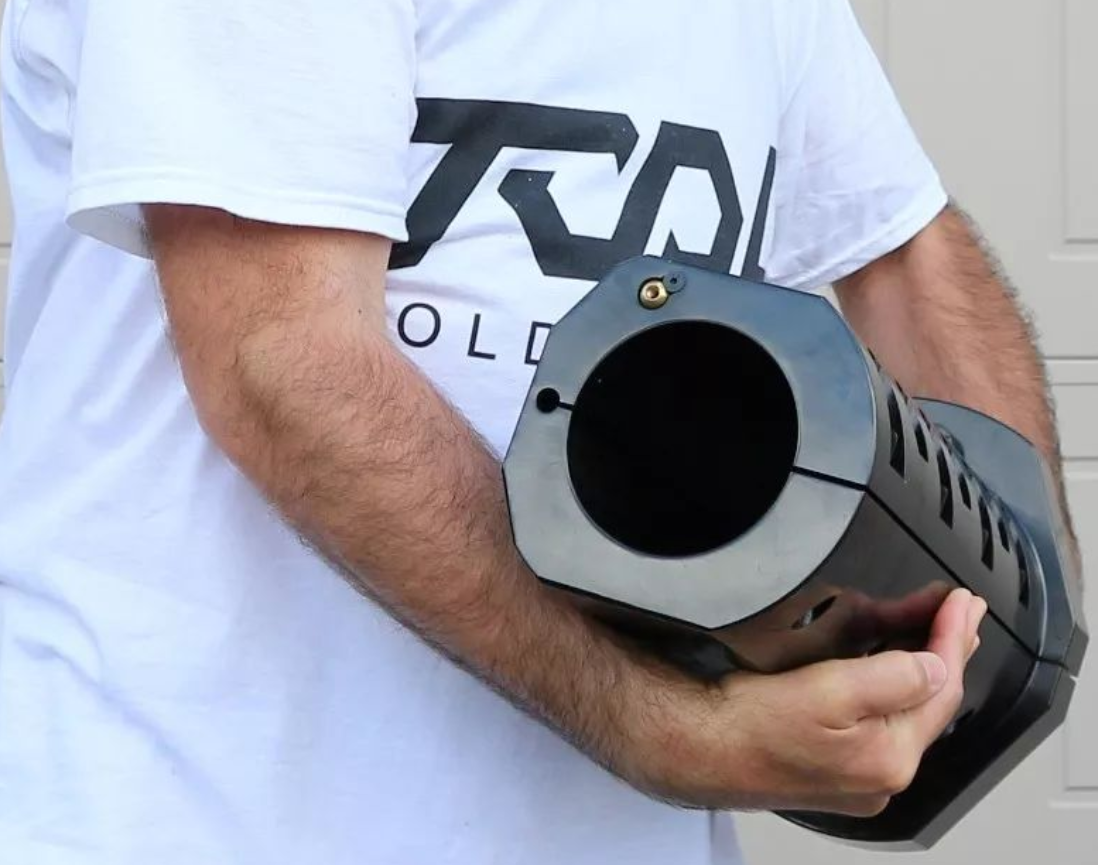

This chunky boy (BMT85, 22 kg) was made for a Norway company. The boring bar holder features split design and increased length for anti vibration properties.

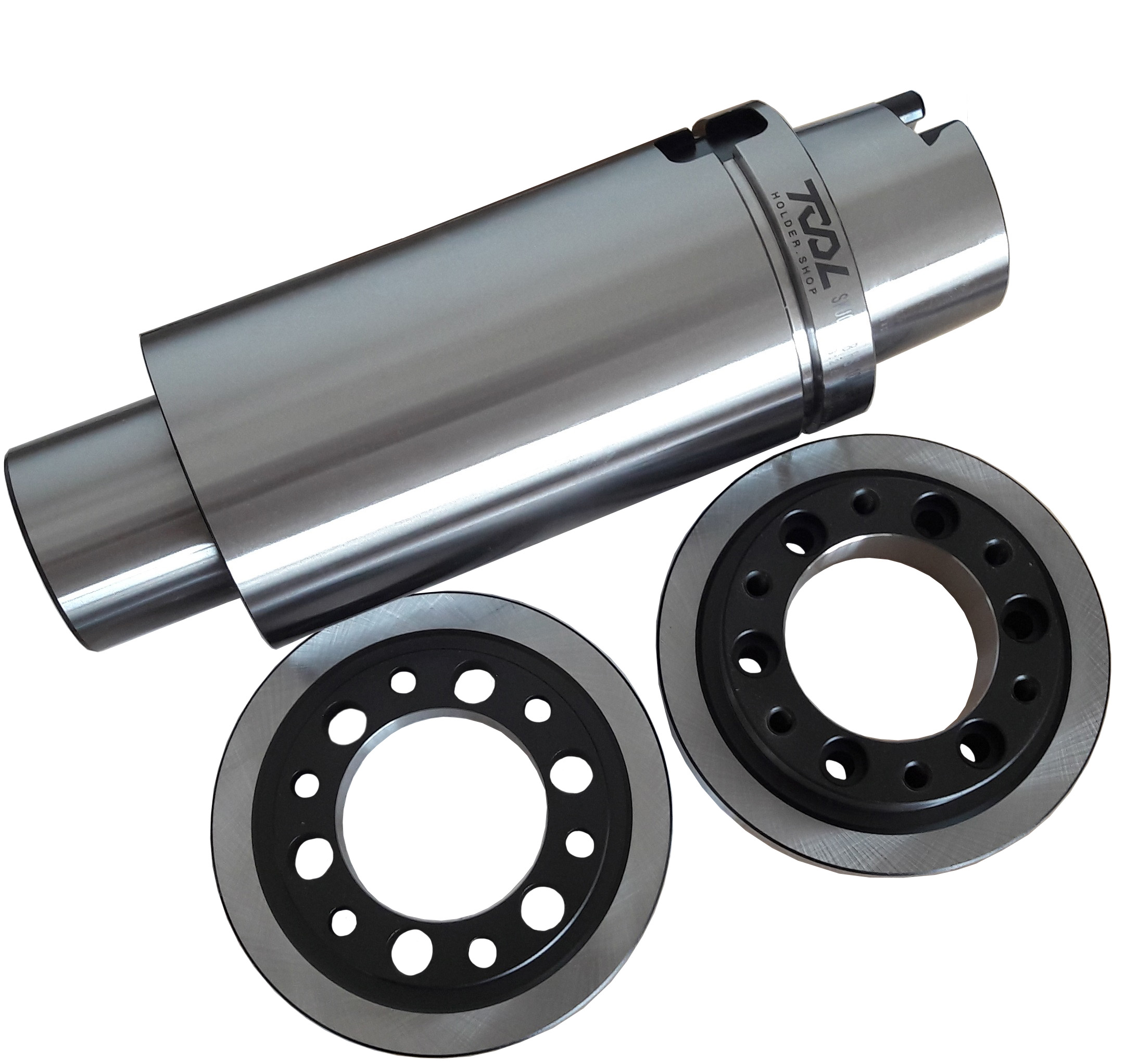

HSK100A Grinding wheel arbor

HSK100A grinding wheel arbor custom made for a large manufacturer in Missisauga, Ontario, Canada.

Three units were made in 45 days.

The arbor is balanced for RPM 15000.

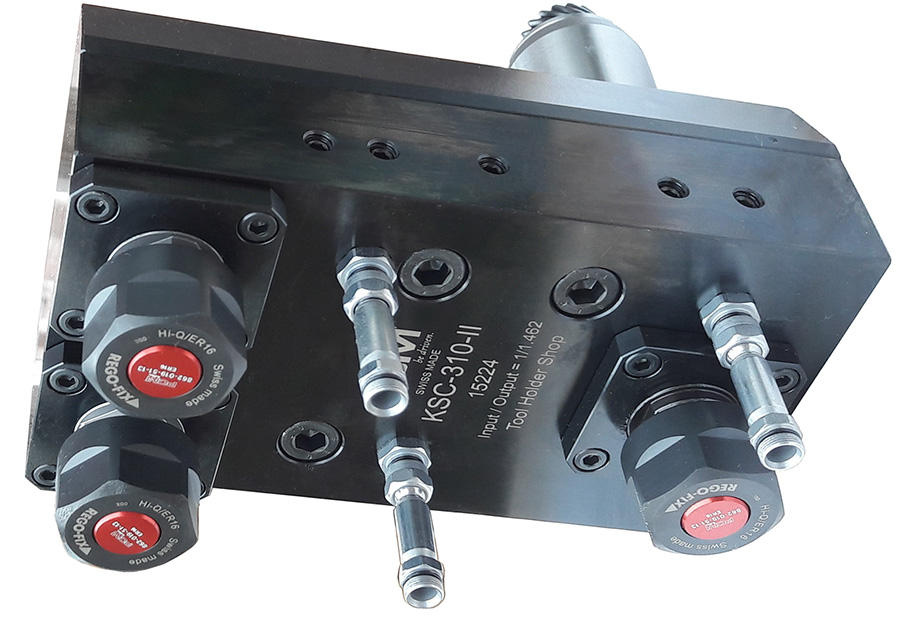

Citizen KSC-310-II

Swiss made by PCM to our order a fancy KSC-310-II triple ER16 head for Citizen L series machine.

We hope our customer will enjoy the Swiss quality and very reasonable price we can provide for this sophisticated tool.

BMT

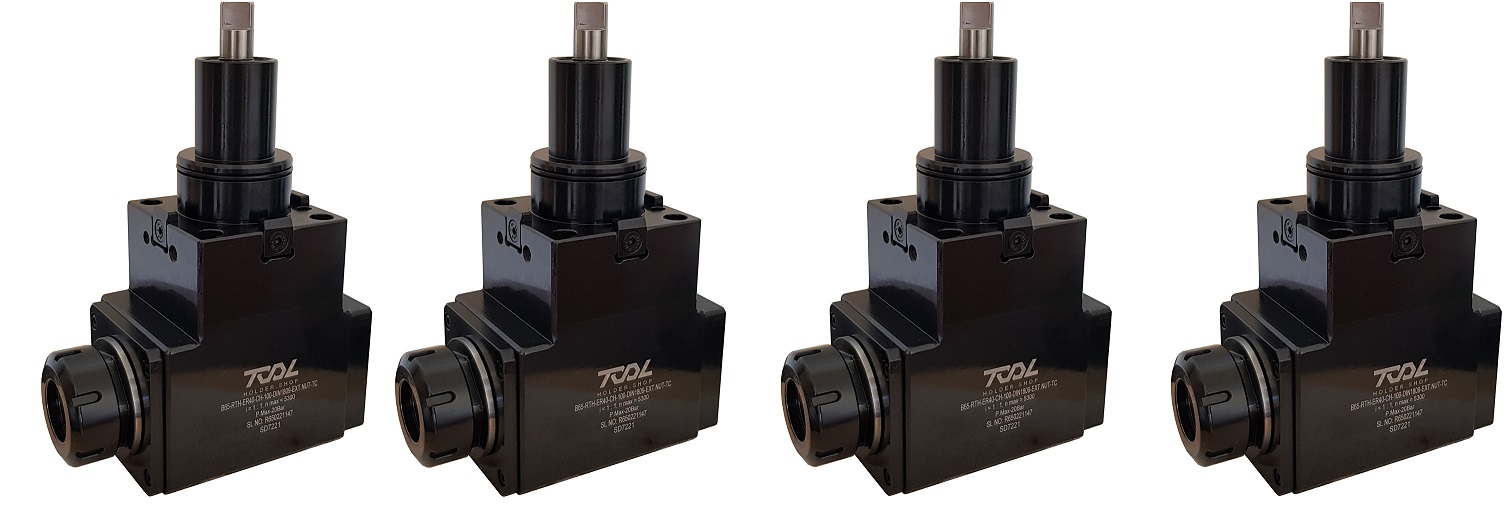

Look at the picture. Seems to be nothing special. However, these four BMT65 radial heads have ER40 collet chuck and internal coolant - coolant through spindle. We made them by the order from a company in Colorado, USA.
