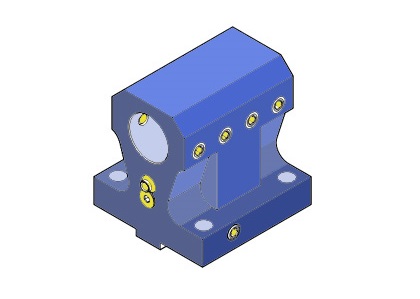

BMT BOLT PATTERN 71x69 BORING BAR HOLDER ID=32 mm L=70 mm FOR NAKAMURA SUPERMILL WY250L
THS015427
Compatible lathes
- NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809,
- NAKAMURA SC-300L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, BEVEL GEAR,
- NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS

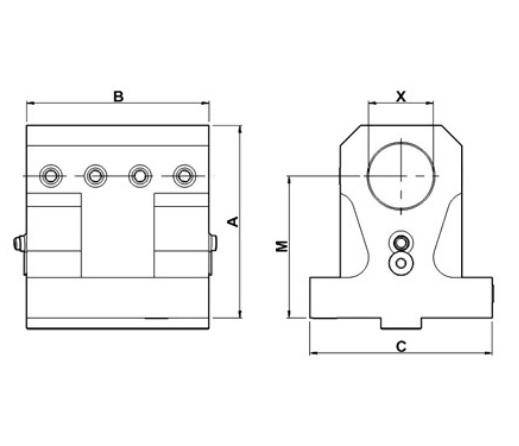

| SKU | NAKAMURA LATHE | X | A | B | C | M |
| SKP021305 | NAKAMURA SUPER-WY-250L | 32 | 95 | 90 | 90 | 70 |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS015427 BMT BOLT PATTERN 71x69 BORING BAR HOLDER ID=32 mm L=70 mm FOR NAKAMURA SUPERMILL WY250L | ||||||
| STRIGHT | 32 mm | 70 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
Updated 202305
Tool holder machine interface: RADIAL (STAR TYPE) turret, NAKAMURA WT300-65, STATIC, ANY
COMPATIBLE LATHES
NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, ; NAKAMURA SC-300L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, BEVEL GEAR, ; NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS;
