$ USD USD 96800
SKU D UNITS X A B C MAZAK LATHE
THS013511 40 mm 20 85 76 100 MAZAK MP 610N
MAZAK MP 615N
MAZAK MP 410N
MAZAK MP 415N
THS013512 inch 0.75" 3.347" 3" 3.937"
THS013513 40 mm 25 83 92 120 MAZAK MP 620N
MAZAK MP 625N
MAZAK MP 420N
THS013514 inch 1" 3.268" 3.622" 4.724"
THS013515 50 mm 25 120 100 150 MAZAK MP 630
THS013516 inch 1" 4.724" 3.937" 5.905"


Updated 2022-02-23
SKU Interface Direction Capacity Projection Rotation Hand Coolant Offset
THS013511 VDI40 TURNING HOLDER H=20 mm LEFT HAND FOR MAZAK MP610N MP615N MP410N MP415N
MAZAK MP420N MAZAK 620N MAZAK 625N MAZAK 620 12 TOOLS TURRET MAZAK 6200 12 TOOLS TURRET
40
STATIC

THS013512 VDI40 TURNING HOLDER H=(3/4)" LEFT HAND FOR MAZAK MP610N MP615N MP410N MP415N
MAZAK MP420N MAZAK 620N MAZAK 625N MAZAK 620 12 TOOLS TURRET MAZAK 6200 12 TOOLS TURRET
40
STATIC

THS013513 VDI40 TURNING HOLDER H=25 mm LEFT HAND FOR MAZAK MP620N MP625N MP420N
MAZAK MP420N MAZAK 620N MAZAK 625N MAZAK 620 12 TOOLS TURRET MAZAK 6200 12 TOOLS TURRET
40
STATIC

THS013514 VDI40 TURNING HOLDER H=(1)" LEFT HAND FOR MAZAK MP620N MP625N MP420N
MAZAK MP420N MAZAK 620N MAZAK 625N MAZAK 620 12 TOOLS TURRET MAZAK 6200 12 TOOLS TURRET
40
STATIC

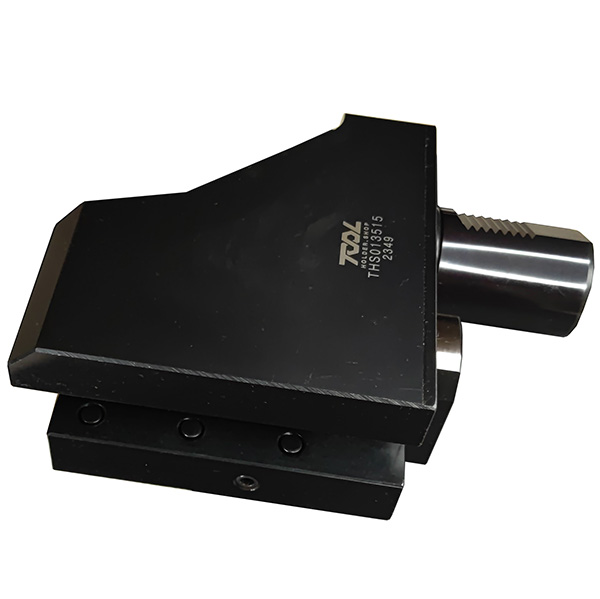

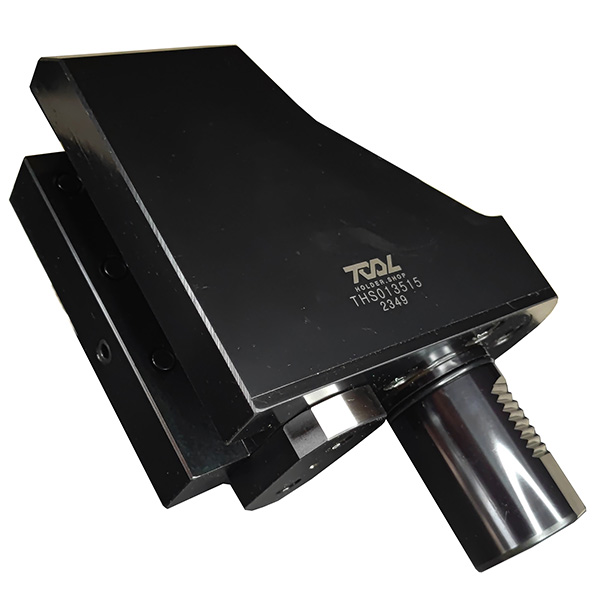

THS013515 VDI50 TURNING HOLDER H=25 mm LEFT HAND FOR MAZAK MP630
MAZAK MP630 MAZAK 6300 MAZAK 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET
50
STATIC

THS013516 VDI50 TURNING HOLDER H=(1)" LEFT HAND FOR MAZAK MP630
MAZAK MP630 MAZAK 6300 MAZAK 6300Y 12 TOOLS TURRET MAZAK 650 10 TOOLS TURRET
50
STATIC


Updated 202301

Tool holder machine interface: RADIAL (STAR TYPE) turret, MAZAK MP420N MAZAK 620N MAZAK 625N MAZAK 620 12 TOOLS TURRET MAZAK 6200 12 TOOLS TURRET-40, STATIC, ANY

COMPATIBLE LATHES

MAZAK MULTIPLEX MP-6200Y-12D TURRET RADIAL (STAR TYPE), MAZAK MP420N MAZAK 620N MAZAK 625N MAZAK 620 12 TOOLS TURRET MAZAK 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), ;   MAZAK MULTIPLEX MP-425 TURRET RADIAL (STAR TYPE), MAZAK MP420N MAZAK 620N MAZAK 625N MAZAK 620 12 TOOLS TURRET MAZAK 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), ;   MAZAK MULTIPLEX MP-420N-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK MP420N MAZAK 620N MAZAK 625N MAZAK 620 12 TOOLS TURRET MAZAK 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), ;   MAZAK MULTIPLEX MP-620N-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK MP420N MAZAK 620N MAZAK 625N MAZAK 620 12 TOOLS TURRET MAZAK 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), ;   MAZAK MULTIPLEX MP-620N-12D TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ;   MAZAK MULTIPLEX MP-620N TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ;   MAZAK MULTIPLEX MP-625N-12D TURRET DIA.40 TURRET MAZAK MP420N MAZAK 620N MAZAK 625N MAZAK 620 12 TOOLS TURRET MAZAK 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), ;   MAZAK MULTIPLEX MP-420N TURRET ;   MAZAK HYPER QUADREX HQ-200MSY TURRET RADIAL 12ST VDI40 TURRET RADIAL (STAR TYPE), MAZAK MP420N MAZAK 620N MAZAK 625N MAZAK 620 12 TOOLS TURRET MAZAK 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), Y-AXIS;   MAZAK MULTIPLEX MP-6200-12D TURRET RADIAL (STAR TYPE), MAZAK MP420N MAZAK 620N MAZAK 625N MAZAK 620 12 TOOLS TURRET MAZAK 6200 12 TOOLS TURRET 40, MAZAK MP620 (REGULAR), ;
