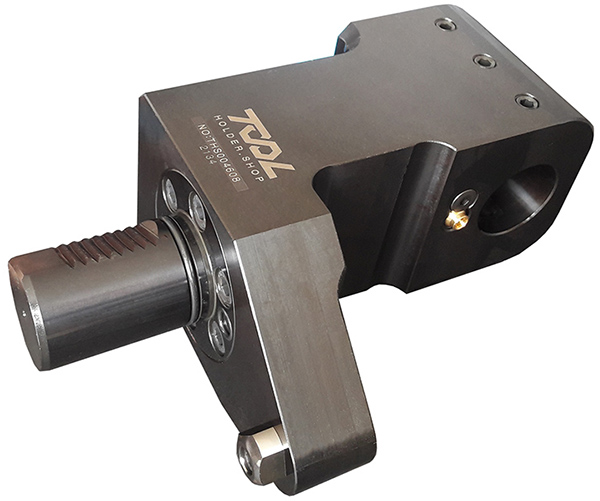

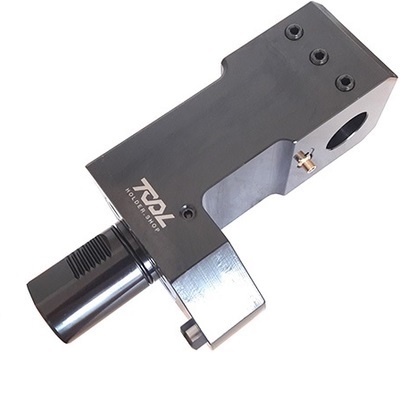

VDI40 RADIAL BORING BAR HOLDER ID=(1-1/4)" L=110 mm FOR MAZAK SQT100 SQT150 SQT10 SQT15A
THS004599
Compatible lathes
- MAZAK SUPER QUICK TURN SQT-10MS-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK QUICK TURN NEXUS QTNX-100II-M TURRET RADIAL DIA.40 TURRET
- MAZAK SUPER QUICK TURN SQT-10M-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-15MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-200MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-15M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-200M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-250M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-10M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ANY
- MAZAK QUICK TURN NEXUS QTN-150M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-15AM DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, STATIC, ANY
- MAZAK QUICK TURN NEXUS QTN-100M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-250MS-16D RADIAL TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
93500

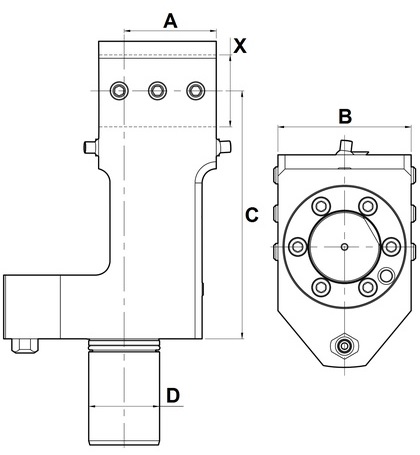

| SKU | Ø D | X | A | B | C | MAZAK LATHE |
| THS004600 | 40 | 32 | 56 | 76 | 110 | MAZAK QTN 100M MAZAK QTN 150M MAZAK SQT 10M MAZAK SQT 15AM |
| THS004599 | 1-1/4" | |||||
| THS013635 | 40 | |||||
| THS004607 | 40 | 40 | 71 | 82 | 140 | MAZAK QTN 200M MAZAK QTN 250M MAZAK SQT 15 MAZAK SQT 18M |
| THS004608 | 1-1/2" | |||||
| THS004614 | 50 | 40 | 65 | 94 | 175 | MAZAK SQT 28M MAZAK SQT 30M |
| THS004611 | 1-1/2" | |||||
| THS004613 | 50 | |||||
| THS004612 | 2" |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004599 VDI40 RADIAL BORING BAR HOLDER ID=(1-1/4)" L=110 mm FOR MAZAK SQT100 SQT150 SQT10 SQT15A | ||||||
| ANGLE 90 DEGREE | TAPER B12 | 110 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS004600 VDI40 RADIAL BORING BAR HOLDER ID=32 mm L=110 mm FOR MAZAK SQT100 SQT150 SQT10 SQT15A | ||||||
| ANGLE 90 DEGREE | 32 mm | 110 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS004607 VDI40 RADIAL BORING BAR HOLDER ID=40 mm L=140 mm FOR MAZAK QTN200 QTN250 SQT15 SQT18 | ||||||
| ANGLE 90 DEGREE | 40 mm | 140 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS004608 VDI40 RADIAL BORING BAR HOLDER ID=(1-1/2)" L=140 mm FOR MAZAK QTN200 QTN250 SQT15 SQT18 | ||||||
| ANGLE 90 DEGREE | TAPER B12 | 140 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS004611 VDI50 RADIAL BORING BAR HOLDER ID=(1-1/2)" L=175 mm FOR MAZAK SQT28M SQT30M | ||||||
| ANGLE 90 DEGREE | TAPER B12 | 175 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS004612 VDI50 RADIAL BORING BAR HOLDER ID=(2)" L=175 mm FOR MAZAK SQT28M SQT30M | ||||||
| ANGLE 90 DEGREE | TAPER B12 | 175 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS004613 VDI50 RADIAL BORING BAR HOLDER ID=50 mm L=175 mm FOR MAZAK SQT28M SQT30M | ||||||
| ANGLE 90 DEGREE | 50 mm | 175 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS004614 VDI50 RADIAL BORING BAR HOLDER ID=40 mm L=175 mm FOR MAZAK SQT28M SQT30M | ||||||
| ANGLE 90 DEGREE | 40 mm | 175 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS013635 VDI40 RADIAL BORING BAR HOLDER ID=40 mm L=110 mm FOR MAZAK SQT100 SQT150 SQT10 SQT15A | ||||||
| ANGLE 90 DEGREE | 40 mm | 110 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS017479 VDI40 RADIAL BORING BAR HOLDER ID=(1-1/2)" L=110 mm FOR MAZAK SQT100 SQT150 SQT10 SQT15A | ||||||
| ANGLE 90 DEGREE | TAPER B12 | 110 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
Updated 202305
Tool holder machine interface: ANY turret, MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68-40, STATIC, ANY
COMPATIBLE LATHES
MAZAK SUPER QUICK TURN SQT-10MS-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK QUICK TURN NEXUS QTNX-100II-M TURRET RADIAL DIA.40 TURRET ; MAZAK SUPER QUICK TURN SQT-10M-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-15MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-200MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-15M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-200M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-250M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-10M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ANY; MAZAK QUICK TURN NEXUS QTN-150M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-15AM DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, STATIC, ANY; MAZAK QUICK TURN NEXUS QTN-100M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ; MAZAK SUPER QUICK TURN SQT-250MS-16D RADIAL TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT), ;
