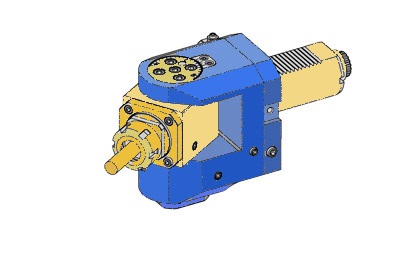

VDI50 DIN5480 UNIVERSAL ADJUSTABLE DRILLING MILLING HEAD ER25
SKU001272
Compatible lathes
- DOOSAN MECATEC V-420TM TURRET AXIAL SAUTER VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- FORTUNE VTURN-46CV TURRET AXIAL SAUTER VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- DOOSAN MECATEC V-20M AXIAL SAUTER TURRET VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- DMG GILDEMEISTER CTX-620 TURRET AXIAL SAUTER VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- DOOSAN MECATEC S-550M-OLD SAUTER TURRET VDI50 DIN5480 TURRET VDI 50, DIN5480,
- DOOSAN MECATEC V-420M TURRET AXIAL SAUTER VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- DOOSAN MECATEC V-550M TURRET AXIAL SAUTER VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- DOOSAN MECATEC V-550TM TURRET AXIAL SAUTER VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- GRAZIANO CTX-620 TURRET SAUTER VDI50 DIN5480 TURRET
- SCHERER FEINBAU VDZ-420XLDS TURRET SAUTER RADIAL VDI50 DIN5480 TURRET VDI 50, DIN5480, N/S
- SCHERER FEINBAU VDZ-420XL TURRET SAUTER RADIAL VDI50 DIN5480 TURRET VDI 50, DIN5480, N/S
- VICTOR VTURN-46CV TURRET AXIAL SAUTER VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- DUPLOMATIC TURRET VDI50 DIN5480 TURRET VDI 50, DIN5480, N/S
- DMG GILDEMEISTER CTX GAMMA-1250 TURRET AXIAL SAUTER VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- DMG GILDEMEISTER CTX GAMMA-3000 TURRET AXIAL SAUTER VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- HESSAPP DVH-450i TURRET VDI50 DIN5480 TURRET VDI 50, DIN5480,
- VDF BOEHRINGER NG-400 TURRET SAUTER RADIAL VDI50 DIN5480 TURRET RADIAL, VDI 50, DIN5480,
- EMCO MAXXTURN MT-110 TURRET AXIAL VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- DMG GILDEMEISTER CTV-400 RADIAL SAUTER TURRET VDI50 DIN5480 TURRET RADIAL, VDI 50, DIN5480,
- DMG GILDEMEISTER CTX GAMMA NO SUBSP AXIAL SAUTER TURRET VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- SCHERER FEINBAU VDZ-420 TURRET SAUTER RADIAL VDI50 DIN5480 TURRET VDI 50, DIN5480, N/S
- SCHERER FEINBAU VDZ-420DS TURRET SAUTER RADIAL VDI50 DIN5480 TURRET VDI 50, DIN5480, N/S
- VICTOR VTURN-V760CV TURRET VDI50 DIN5480 TURRET VDI 50, DIN5480,
- VICTOR VTURN-V760 TURRET VDI50 DIN5480 TURRET VDI 50, DIN5480,
- VICTOR VTURN-36CV TURRET AXIAL SAUTER VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- VICTOR VTURN-40CV TURRET SAUTER VDI50 DIN5480 TURRET VDI 50, DIN5480,
- VICTOR VTURN-36-85 TURRET SAUTER VDI50 DIN5480 TURRET VDI 50, DIN5480,
- VICTOR VTURN-36-125 TURRET SAUTER VDI50 DIN5480 TURRET VDI 50, DIN5480,
- VICTOR VTURN-46-165CV TURRET SAUTER AXIAL VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- VICTOR VTURN-46-165 TURRET SAUTER AXIAL VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- WEILER E-110 TURRET SAUTER VDI50 DIN5480 TURRET VDI 50, DIN5480,
- DMG GILDEMEISTER CTX GAMMA-2000 TURRET AXIAL SAUTER VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- DMG GILDEMEISTER CTX-520 TURRET SAUTER AXIAL VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- DMG GILDEMEISTER CTX-620Y TURRET AXIAL SAUTER VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- MICROWEILY TY-52Y RADIAL SAUTER TURRET VDI50 DIN5480 TURRET RADIAL, VDI 50, DIN5480,
- FORCE ONE TC-4532 TURRET DUPLOMATIC VDI50 DIN5480 TURRET VDI 50, DIN5480,
- FORCE ONE TC-4522 TURRET DUPLOMATIC VDI50 DIN5480 TURRET VDI 50, DIN5480,
- FORCE ONE TC-4512 TURRET DUPLOMATIC VDI50 DIN5480 TURRET VDI 50, DIN5480,
- FORCE ONE TC-4517 TURRET DUPLOMATIC VDI50 DIN5480 TURRET VDI 50, DIN5480,
- LIO SHING TURRET LS-250SP AXIAL VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- DUPLOMATIC SMBR25-380 TURRET VDI50 DIN5480 TURRET RADIAL, VDI 50, DIN5480,
- DUPLOMATIC SMBA25-420 TURRET VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480,
- SEIGER SLZ-1500 TURRET SAUTER VDI50 TURRET VDI 50, DIN5480, N/S
- APEX PT-25 12-TLS TURRET VDI50 DIN5480 TURRET VDI 50, DIN5480,
- KOVOSVIT SPH-520D TURRET VDI50 DIN5480 TURRET VDI 50, DIN5480,
- KOVOSVIT SPH-520DS TURRET VDI50 DIN5480 TURRET VDI 50, DIN5480,
- DMG GILDEMEISTER ECOTURN-650 TURRET VDI50 DIN5480 TURRET VDI 50, DIN5480,
- DIEDESHEIM VDM-55RE TURRET VDI50 DIN5480 TURRET VDI 50, DIN5480,
- FAMAR ERGO-400 TURRET VDI50 DIN5480 TURRET VDI 50, DIN5480,
- FAMAR ERGO-400G TURRET VDI50 DIN5480 TURRET VDI 50, DIN5480,
- KOVOSVIT MAS SP-430SY TURRET VDI50 DIN5480 TURRET VDI 50, DIN5480, Y-AXIS
- FMS NDM-40 TURRET RADIAL, VDI 50, DIN5480, N/S
- DMG GILDEMEISTER CTX-650 ECOLINE VDI50 DIN5480 TURRET AXIAL, VDI 50, DIN5480, N/S
- DMG GILDEMEISTER CTX BETA-2000-V12 TURRET VDI50 DIN5480 AXIAL TURRET AXIAL, VDI 50, DIN5480,
- MORI SEIKI CTX BETA-2000-V12 TURRET VDI50 DIN5480 AXIAL TURRET AXIAL, VDI 50, DIN5480,
VDI50 DIN5480 UNIVERSAL ADJUSTABLE DRILLING MILLING HEAD ER25
Tool holder machine interface: N/S turret, VDI-50, DIN5480,
| SKU | D DIN 69880 |
X Capacity |
S | RPM | A | B | C | E | F | G | M | P DIN 5480 |
| SKU001259 | 30 | 1~13 ER20 | 35 | 4000 | ±90° | 64 | 59 | 54 | 32 | 27 | 67 | W16x0.8 |
| SKU001265 | 40 | 1~16 ER25 | 42 | 4000 | ±90° | 76 | 65 | 65 | 38 | 29 | 70 | W20x0.8 |
| SKU001272 | 50 | 1~16 ER25 | 42 | 4000 | ±90° | 90 | 80 | 76.5 | 45 | 32 | 85 | W24x1.25 |
| SKU001276 | 60 | 3~26 ER40 | 63 | 4000 | ±90° | 108 | 99 | 92.5 | 55 | 38 | 97 | W30x1.25 |
Updated 2022-02-23
| SKU | Interface | Direction | Capacity | Projection | Rotation | Hand | Coolant | Offset | |
| SKU001259 | VDI30 DIN5480 UNIVERSAL ADJUSTABLE DRILLING MILLING HEAD ER20 | ||||||||
| VDI 30 DIN5480 |
|||||||||
| SKU001265 | VDI40 DIN5480 UNIVERSAL ADJUSTABLE DRILLING MILLING HEAD ER25 | ||||||||
| VDI 40 DIN5480 |
|||||||||
| SKU001272 | VDI50 DIN5480 UNIVERSAL ADJUSTABLE DRILLING MILLING HEAD ER25 | ||||||||
| VDI 50 DIN5480 |
|||||||||
| SKU001276 | VDI60 DIN5480 UNIVERSAL ADJUSTABLE DRILLING MILLING HEAD ER40 | ||||||||
| VDI 60 DIN5480 |
UNIVERSAL | ER40 | 0 | CW-CW 1:1 |
STRIGHT | EXTERNAL COOLANT | STRIGHT | ||
