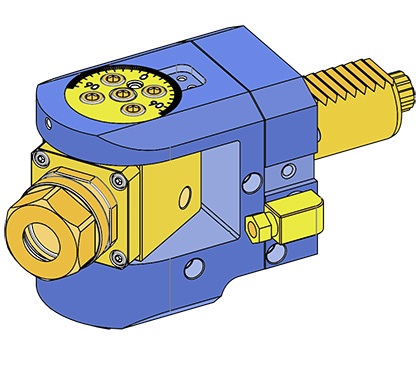

VDI40 DIN5482 UNIVERSAL ADJUSTABLE DRILLING MILLING HEAD ER25
SKU001266
Compatible lathes
- MAGDEBURGER M-400U-2 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MONFORTS RNC-400MT MULTITURN TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- GRAZIANO CTX-500 NO SUBSP TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-400S-4 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- HEYLIGENSTAEDT HEYNUMAT HN-5 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- NILES-SIMMONS N-20 AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MONFORTS MNC-500 DOUBLE-TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- NILES-SIMMONS N-10 DBL-TURRET AXIAL SAUTER VDI30 DIN5482 TURRET AXIAL, VDI 30, DIN5482,
- MONFORTS RNC-600MT MULTITURN AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MONFORTS RNC-400Y TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, Y-AXIS
- MONFORTS RNC-500DT DUOTURN TURRET SAUTER RADIAL VDI40 DIN5480 TURRET RADIAL, VDI 40, DIN5480,
- MONFORTS RNC-500Y TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, Y-AXIS
- NILES-SIMMONS N-10 AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- ANGELINI DG-13CNC TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- COLCHESTER TORNADO-T220M TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG GILDEMEISTER CTX-500 TURRET RADIAL VDI40 DIN5482 TURRET RADIAL, VDI 40, DIN5482,
- LARU B20x17 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- MONFORTS RNC-4 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MONFORTS RNC-5 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MONFORTS RNC-500MT MULTITURN TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- SAEILO CONTUR-TSL-500 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET VDI 40, DIN5482,
- SAUTER TURRET AXIAL VDI40 DIN5482 B17x14(40) TURRET AXIAL, VDI 40, DIN5482,
- SAUTER TURRET VDI40 DIN5482 B20x17(40) TURRET AXIAL, VDI 40, DIN5482,
- TRAUB TNA-400 TURRET SAUTER VDI40 DIN5482 TURRET VDI 40, DIN5482,
- COLCHESTER STORM II-220M TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DOOSAN MECATEC S-390LM TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-120 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-160S-4 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-160U-2 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-160U-4 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-300 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- HARDINGE TALENT 8/52A TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- HARDINGE TALENT 10/78 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- WFL MILLTURN M-30 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- GRAZIANO GT-400 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- COLCHESTER TORNADO-22M SAUTER TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- COLCHESTER TORNADO-T8M TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG GILDEMEISTER CTX-510ECO HYBRID-TURRET SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, Y-AXIS
- DMG GILDEMEISTER CTX-500-SERIE2 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG GILDEMEISTER CTX-400-SERIE2 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG GILDEMEISTER CTX-500E TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- GITAL GT-500 TURRET SAUTER VDI40 DIN5482 TURRET VDI 40, DIN5482,
- GRAZIANO 400C TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- HARDINGE TALENT 8/66 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- HYUNDAI SKT-21LMS TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- HYUNDAI SKT-15LMS TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-15LM TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-15LMS TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-21 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-21L TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-21LM TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-21LMS TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-21LS TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- WIA SKT-15LMS TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- WIA SKT-21LMS TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- VICTOR VTURN-V560CV TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- VICTOR VTURN-V560 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- ANGELINI BRAVO TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- WFL WNC-300 TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- HEID S-300 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- GRAZIANO GT-500 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- GRAZIANO CTX-400 NO SUBSP TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- GRAZIANO GR-400C TURRET SAUTER VDI40 DIN5482 TURRET VDI 40, DIN5482,
- DMG GILDEMEISTER CTX-400S2 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG GILDEMEISTER CTX-600E AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG GILDEMEISTER CTX-600S2 AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- VOEST-ALPINE WNC-500S TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- CLAUSING TORNADO T-8M TURRET SAUTER VDI40 DIN5482 TURRET VDI 40, DIN5482,
- CLAUSING TORNADO T-10M TURRET SAUTER VDI40 DIN5482 TURRET VDI 40, DIN5482,
- CLAUSING TORNADO T-8MS TURRET SAUTER VDI40 DIN5482 TURRET VDI 40, DIN5482,
- VOEST-ALPINE WNC-400 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- VOEST-ALPINE WNC-300 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- WFL WNC-400 TURRET RADIAL VDI40 DIN5482 TURRET RADIAL, VDI 40, DIN5482,
- FAT TUR-630AMN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT TUR-630MN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT TUR-560MN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT TUR-710MN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT TUR-710AMN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT FCT-700 12-TLS TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT FCT-700A 12-TLS TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- KIA SUPER TURN ST-21LMS TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- KIA KIA TURN KT-15LMS TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- WIA L-210LMSA TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- WIA L-150LMSA TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DAEWOO PUMA-10S3A TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- DAEWOO PUMA-8HC3A TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- COLCHESTER TORNADO-T10M TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- DOOSAN DOOTURN S-390LM TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- KERN CD-480 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- FAT TUR-630MN-2000 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- MAHO GR-400 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- HEYLIGENSTAEDT HEYNUTWIN HT TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- MONFORTS RNC-600AC TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- KERN CD-650 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- MAHO GR-500 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- DMG GILDEMEISTER CT-60 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- HEYLIGENSTAEDT HEYNUMAT HN-5UK TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- HEYLIGENSTAEDT HEYNUMAT HN-5FK TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- MONFORTS KNC-8 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- MONFORTS RNC-400AC TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- MONFORTS RNC-500AC TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- MAHO MT-500C TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- STOREBRO STM-4000 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- MONFORTS MNC-5Y TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482, Y-AXIS
- STOREBRO STB-4000 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- VOEST-ALPINE WNC-300S TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- WEILER E-70/2D TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- NILES-SIMMONS N-10LT DBL-TURRET AXIAL SAUTER VDI30 DIN5482 TURRET AXIAL, VDI 30, DIN5482,
- HESSAPP DVT-300 DBL-TURRET RADIAL VDI40 DIN5482 TURRET RADIAL, VDI 40, DIN5482,
- MAHO 500T TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- HESSAPP DVT-200 DBL-TURRET RADIAL VDI40 TURRET RADIAL, VDI 40, DIN5482,
- WEISSER SOEHNE UNIVERTOR A-90L TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- WEISSER SOEHNE VK C1-CNC TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- WAGNER WDST-780X1200 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- WAGNER WDST-780X700 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- WAGNER WDST-600X600 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- WAGNER WDST-780X1700 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- WAGNER WDST-600X1000 TURRET VDI40 DIN5482 TURRET VDI 40, DIN5482,
- WAGNER WDS-560A TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- WAGNER WDS-560 TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- WAGNER WDS-480 8-TLS TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DAINICHI DIN5482 B17x14 (40) TURRET RADIAL, VDI 40, DIN5482, N/S
VDI40 DIN5482 UNIVERSAL ADJUSTABLE DRILLING MILLING HEAD ER25
Tool holder machine interface: N/S turret, VDI-40, DIN5482,
| SKU | D DIN 69880 |
X Capacity |
RPM | S | A | B | C | E | F | G | M | Q DIN 5482 |
| SKU001262 | 30 | 1~13 ER20 | 4000 | 35 | ±90° | 64 | 59 | 54 | 32 | 27 | 67 | B15x12 |
| SKU001266 | 40 | 1~16 ER25 | 4000 | 42 | ±90° | 76 | 65 | 65 | 38 | 29 | 70 | B17x14 |
| SKU001273 | 50 | 1~16 ER25 | 4000 | 42 | ±90° | 90 | 80 | 85 | 45 | 32 | 85 | B20x17 |
Updated 2022-02-23
| SKU | Interface | Direction | Capacity | Projection | Rotation | Hand | Coolant | Offset | |
| SKU001262 | VDI30 DIN5482 UNIVERSAL ADJUSTABLE DRILLING MILLING HEAD ER20 | ||||||||
| VDI 30 DIN5482 |
|||||||||
| SKU001266 | VDI40 DIN5482 UNIVERSAL ADJUSTABLE DRILLING MILLING HEAD ER25 | ||||||||
| VDI 40 DIN5482 |
|||||||||
| SKU001273 | VDI50 DIN5482 UNIVERSAL ADJUSTABLE DRILLING MILLING HEAD ER25 | ||||||||
| VDI 50 DIN5482 |
|||||||||
