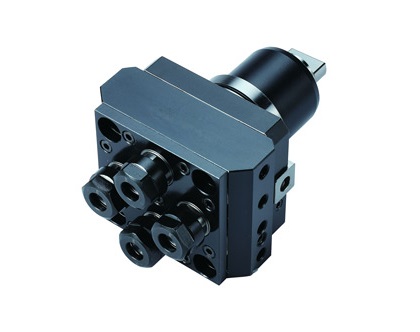

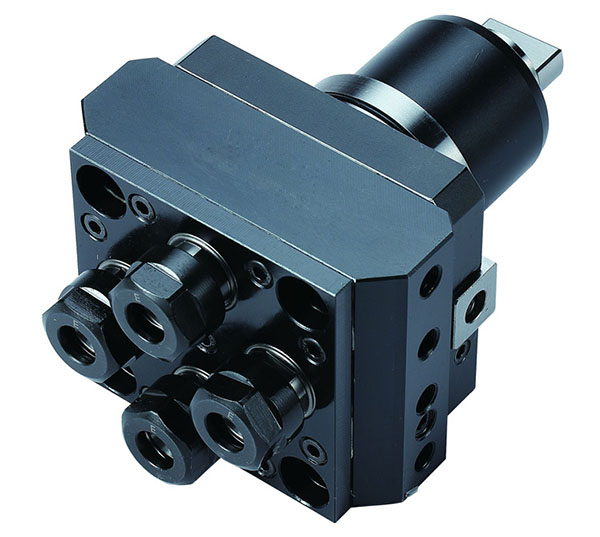

BMT BOLT PATTERN 69x71 AXIAL DRILLING MILLING HEAD 4xER16 FOR NAKAMURA SUPERMILL WT150
THS005785
Compatible lathes
- NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
$ USD
646100
646100
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS005785 BMT BOLT PATTERN 69x71 AXIAL DRILLING MILLING HEAD 4xER16 FOR NAKAMURA SUPERMILL WT150 | ||||||
|
|
||||||
Updated 202305
Tool holder machine interface: RADIAL (STAR TYPE) turret, NAKAMURA WT300-65, DIN1809, Y-AXIS
COMPATIBLE LATHES
NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS;
