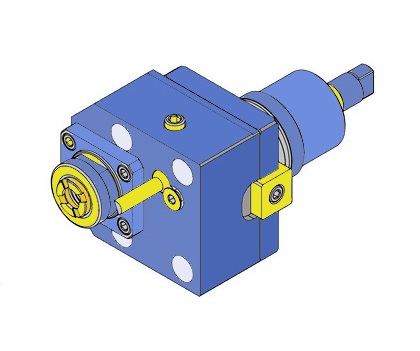

BMT BOLT PATTERN 69x71 AXIAL DRILLING MILLING ER32A OFF 50 SPEEDER 1:2 FOR NAKAMURA WT300
THS008121
Compatible lathes
- NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809,
- NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
$ USD
339100
339100

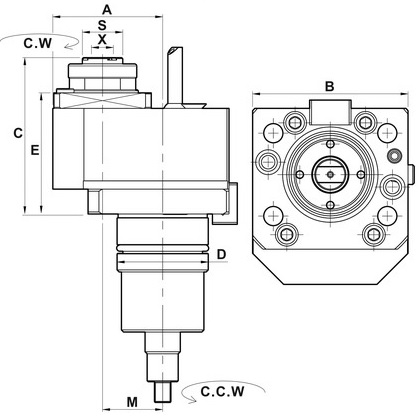

| SKU | D | X Capacity |
S | RPM | Gear Ratio |
A | B | C | E | M | NAKAMURA LATHE |
| THS004944 | 44 | 1~10 ER16A | 19.5 | 8000 | 1 : 2 | 53 | 75 | 75.5 | 58.5 | 29 | NAKAMURA WT-100 |
| THS005806 | 55 | 1~13 ER20A | 23 | 8000 | 1 : 2 | 77 | 84 | 93 | 76 | 45 | NAKAMURA WT-150 |
| THS008121 | 65 | 2~20 ER32A | 37.7 | 8000 | 1 : 2 | 81 | 96 | 105 | 78 | 50 | NAKAMURA WT-300 |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004944 BMT BOLT PATTERN 40x55 AXIAL DRILLING MILLING HEAD ER16A OFF29 SPEEDER 1:2 WT100 NTJ100 | ||||||
|
|
||||||
| THS005806 BMT BOLT PATTERN 50x60 AXIAL DRILLING MILLING HEAD ER20A OFF 45 mm 1:2 FOR NAKAMURA WT150 | ||||||
|
|
||||||
| THS008121 BMT BOLT PATTERN 69x71 AXIAL DRILLING MILLING ER32A OFF 50 SPEEDER 1:2 FOR NAKAMURA WT300 | ||||||
|
|
||||||
Updated 202305
Tool holder machine interface: RADIAL (STAR TYPE) turret, NAKAMURA WT300-65, DIN1809, ANY
COMPATIBLE LATHES
NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, ; NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS;
