$ USD USD 48600
SKU D
DIN 69880

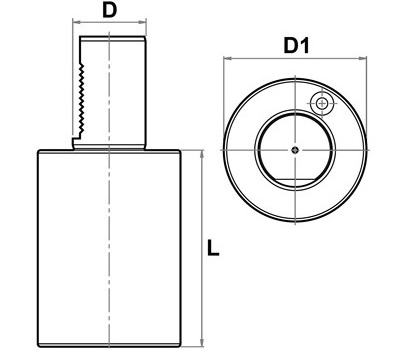

D1 L
THS000010 16 - 60
THS000005 20 50 70
THS000012 25 - 80
THS000011 25 - 200
THS000013 30 68 100
THS000014 30 68 240
THS000015 40 83 120
THS000016 40 83 320
THS000719 50 98 135
THS000720 50 98 400
THS000042 60 123 150
THS000043 60 123 480
.
DIRECTION CAPACITY PROJECTION ROTATION HAND COOLANT OFFSET
THS000005 VDI20 FORM A2 BLANK OD=50 mm L=70 mm
STRAIGHT 50 mm 70 mm STATIC
STATIC
STRAIGHT NO COOLANT STRAIGHT
THS000010 VDI16 FORM A2 BLANK OD=40 mm L=60 mm
STRAIGHT 40 mm 60 mm STATIC
STATIC
STRAIGHT NO COOLANT STRAIGHT
THS000011 VDI25 FORM A2 BLANK OD=58 mm L=200 mm
STRAIGHT 58 mm 200 mm STATIC
STATIC
STRAIGHT NO COOLANT STRAIGHT
THS000012 VDI25 FORM A2 BLANK OD=58 mm L= 80 mm
STRAIGHT 58 mm 80 mm STATIC
STATIC
STRAIGHT NO COOLANT STRAIGHT
THS000013 VDI30 FORM A2 BLANK OD=68 mm L=100 mm
STRAIGHT 68 mm 100 mm STATIC
STATIC
STRAIGHT NO COOLANT STRAIGHT
THS000014 VDI30 FORM A2 BLANK OD=68 mm L=240 mm
STRAIGHT 68 mm 240 mm STATIC
STATIC
STRAIGHT NO COOLANT STRAIGHT
THS000015 VDI40 FORM A2 BLANK OD=83 mm L=120 mm
STRAIGHT 83 mm 120 mm STATIC
STATIC
STRAIGHT NO COOLANT STRAIGHT
THS000016 VDI40 FORM A2 BLANK OD=83 mm L=320 mm
STRAIGHT 83 mm 320 mm STATIC
STATIC
STRAIGHT NO COOLANT STRAIGHT
THS000042 VDI60 FORM A2 BLANK OD=60 mm L=150 mm
STRAIGHT 60 mm 150 mm STATIC
STATIC
STRAIGHT NO COOLANT STRAIGHT
THS000043 VDI60 FORM A2 BLANK OD=60 mm L=480 mm
STRAIGHT 60 mm 480 mm STATIC
STATIC
STRAIGHT NO COOLANT STRAIGHT
THS000719 VDI50 FORM A2 BLANK OD=98 mm L=135 mm
STRAIGHT 98 mm 135 mm STATIC
STATIC
STRAIGHT NO COOLANT STRAIGHT
THS000720 VDI50 FORM A2 BLANK OD=98 mm L=400 mm
STRAIGHT 98 mm 400 mm STATIC
STATIC
STRAIGHT NO COOLANT STRAIGHT

Updated 202410
