Home >> Tool Holder Static >> TAKAMAZ Boring Bar Holders >> VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=40 mm L=100 mm for TAKAMAZ

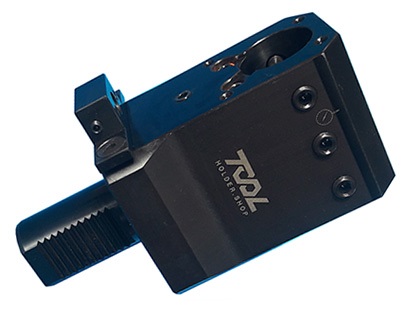

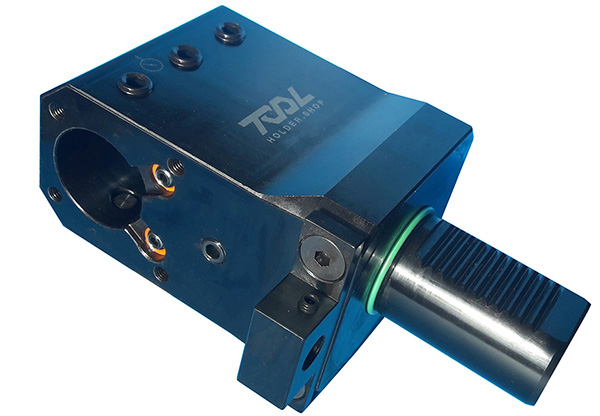

VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=40 mm L=100 mm for TAKAMAZ
THS000750

Compatible lathes

$ USD USD 102200

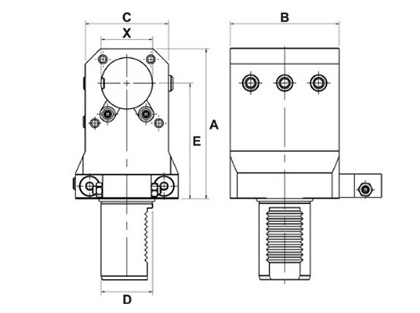

SKU D X A B C E TAKAMAZ LATHE
THS000749 40 40 117 85 65 90 TAKAMAZ XY2000
THS000747 1-1/2"
THS000750 40 40 127 85 65 100
THS000748 1-1/2"


Updated 2022-02-23
DIRECTION CAPACITY PROJECTION ROTATION HAND COOLANT OFFSET
THS000747 VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=( 1- 1/ 2)" L=90 mm for TAKAMAZ
ANGLE 90 DEGREE ( 1- 1/ 2)" 90 mm STATIC
STATIC		 STRAIGHT EXTERNAL COOLANT STRAIGHT
THS000748 VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=( 1- 1/ 2)" L=100 mm for TAKAMAZ
ANGLE 90 DEGREE ( 1- 1/ 2)" 100 mm STATIC
STATIC		 STRAIGHT EXTERNAL COOLANT STRAIGHT
THS000749 VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=40 mm L=90 mm for TAKAMAZ
ANGLE 90 DEGREE 40 mm 90 mm STATIC
STATIC		 STRAIGHT EXTERNAL COOLANT STRAIGHT
THS000750 VDI40 FORM T1 RADIAL BORING BAR HOLDER ID=40 mm L=100 mm for TAKAMAZ
ANGLE 90 DEGREE 40 mm 100 mm STATIC
STATIC		 STRAIGHT EXTERNAL COOLANT STRAIGHT

Updated 202505.24

Tool holder machine interface: RADIAL (STAR TYPE) turret, TAKAMAZ XY2000-40, STATIC, ANY
