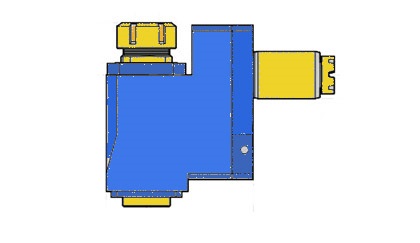

VDI50 SPUR-MT RADIAL TAPPING HEAD ER25 L=90 mm BACK SET 54 mm RIGHT HAND CW-CW
THS001644
Compatible lathes
- BARUFFALDI TOEM-250 TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- CMZ TBI-520MC TURRET BARUFFALDI TOEM250 VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- MATRA STM-600 TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- SPINNER TC-82MC TURRET BARUFFALDI-TOEM250 VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- SPINNER FP-82 TURRET BARUFFALDI VDI50 SPUR-MT TOEM250 TURRET
- SPINNER TC-108MC TURRET BARUFFALDI-TOEM250 VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- SPINNER TC-77MC TURRET BARUFFALDI-TOEM250 VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- SPINNER TC-110MC TURRET AXIAL BARUFFALDI-TOEM250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- BARUFFALDI TBMA-250 TURRET AXIAL VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- BARUFFALDI TBMR-250 TURRET RADIAL VDI50 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 50, SPUR-MT,
- CMZ TBI-520 TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- HANKOOK VTC-85RHT VDI50 TURRET ANY, VDI 50, SPUR-MT, ANY
- SPINNER TC-800MC TURRET BARUFFALDI-TBMA250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- SPINNER TC-700 TURRET VDI50 SPUR-MT TOEM250 TURRET
- SPINNER TC-800MCY TURRET BARUFFALDI-TBMR250 VDI50 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 50, SPUR-MT, Y-AXIS
- SPINNER TC-800SMC TURRET BARUFFALDI-TBMR250 VDI50 SPUR-MT TURRET
- SPINNER TC-800SMCY TURRET BARUFFALDI-TBMR250 VDI50 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 50, SPUR-MT, Y-AXIS
- YIDA BML-630 TURRET BARUFFALDI TBMA250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- YIDA BML-510 TURRET BARUFFALDI TBMA250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- MILLTRONICS ML-35-80 TURRET BARUFFALDI VDI50 SPUR-MT TURRET
- MILLTRONICS ML-40-80 TURRET BARUFFALDI VDI50 SPUR-MT TURRET
- JOHNFORD SL-100C TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD SL-80C TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD SL-70C TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD SL-120C TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD ST-100B TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD LC-50360 TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- JOHNFORD LC-4080 TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- JOHNFORD LC-60 TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- JOHNFORD ST-70A TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD ST-40B TURRET-TBMA250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD ST-40A TURRET-TBMA250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD ST-70B TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD ST-60A TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD ST-60B TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD ST-60C TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD ST-130B TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD ST-70C TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD ST-40C TURRET-TBMA250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD ST-80B TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD ST-200B TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD ST-240B TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD ST-160B TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD HT-30-2D TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD HT-60-2D TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD HT-80-2D TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD LC-50 TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- JOHNFORD LC-40 TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- JOHNFORD HT-100-2D TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD HT-35-2D TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- JOHNFORD HT-40-2D TURRET TBMA-250 VDI50 SPUR-MT TURRET AXIAL, VDI 50, SPUR-MT,
- SPINNER TC-800LMCY TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT, Y-AXIS
- SPINNER TC-110SMCY TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT, Y-AXIS
- EXCEL SL-500/1500 TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- SPINNER TC-110LMCY TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT, Y-AXIS
- SPINNER TC-110MCY TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT, Y-AXIS
- SPINNER TC-110LMC TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- SPINNER TC-77LMC TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- SPINNER TC-77MCY TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT, Y-AXIS
- SPINNER TC-110SMC TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- SPINNER TC-77SMC TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- SPINNER TC-77LMCY TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT, Y-AXIS
- SPINNER TC-77SMCY TURRET VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT, Y-AXIS
- WAGNER WDST-900X3000 TURRET BARUFFALDI VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
- WAGNER WDST-900X2000 TURRET BARUFFALDI VDI50 SPUR-MT TURRET ANY, VDI 50, SPUR-MT,
$ USD
481600
481600

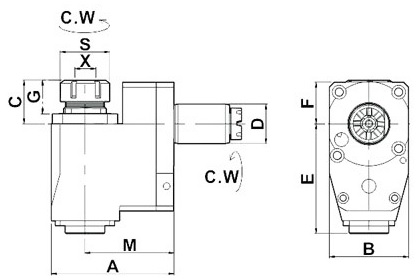

| SKU | D DIN 69880 |
X Capacity |
S | RPM | Gear Ratio |
A | B | C | E | F | G | M |
| THS001637 | 30 | 1~10 ER16 | 30 | 3000 | 1 : 1 | 95 | 60 | 44 | 76 | 32 | 32 | 72 |
| THS001641 | 40 | 1~13 ER20 | 35 | 3000 | 1 : 1 | 124 | 80 | 50 | 110 | 42 | 34 | 90 |
| THS001644 | 50 | 2~16 ER25 | 42 | 3000 | 1 : 1 | 129 | 86 | 54 | 112 | 45 | 36 | 90 |
| THS001647 | 60 | 2~20 ER32 | 50 | 3000 | 1 : 1 | 147 | 104 | 83 | 118 | 54 | 56 | 106 |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS001637 VDI30 SPUR-MT RADIAL TAPPING HEAD ER16 L=72 mm BACK SET 44 mm RIGHT HAND CW-CW | ||||||
| ANGLE 90 DEGREE | ER16 | 72 mm |
CW-CW 1:1 |
RIGHT HAND | EXTERNAL COOLANT | BACK SET |
| THS001641 VDI40 SPUR-MT RADIAL TAPPING HEAD RIGHT HAND ER20 L=90 mm BACK SET CW-CW | ||||||
| ANGLE 90 DEGREE | ER20 | 90 mm |
CW-CW 1:1 |
RIGHT HAND | EXTERNAL COOLANT | BACK SET |
| THS001644 VDI50 SPUR-MT RADIAL TAPPING HEAD ER25 L=90 mm BACK SET 54 mm RIGHT HAND CW-CW | ||||||
| ANGLE 90 DEGREE | ER25 | 90 mm |
CW-CW 1:1 |
RIGHT HAND | EXTERNAL COOLANT | BACK SET |
| THS001647 VDI60 SPUR-MT RADIAL TAPPING HEAD ER32 L=106 mm BACK SET 83 mm RIGHT HAND CW-CW | ||||||
| ANGLE 90 DEGREE | ER32 | 106 mm |
CW-CW 1:1 |
RIGHT HAND | EXTERNAL COOLANT | BACK SET |
Updated 202505.11
Tool holder machine interface: ANY turret, VDI-50, SPUR-MT, ANY
