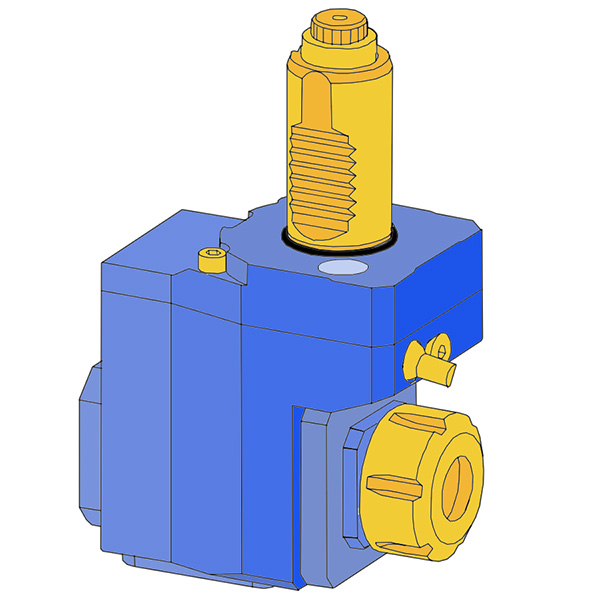

Figure L30000076: VDI30 DIN5480 RADIAL DRILLING MILLING HEAD RIGHT HAND ER25 L=69 mm BACK SET

$ CAD CAD 408800

VDI30 DIN5480 RADIAL DRILLING MILLING HEAD RIGHT HAND ER25 L=69 mm BACK SET

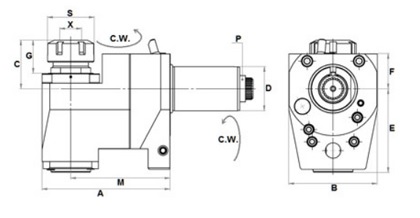

Table L30000076: VDI30 DIN5480 RADIAL DRILLING MILLING HEAD RIGHT HAND ER25 L=69 mm BACK SET

SKU No.Part No.D
DIN 69880
X
Capacity
SRotation
Speed
(R.P.M.)
ABCEFGMP
DIN 5480
SKU001514BR20-5480-ER16-OFF65201~10 ER16305000885037702728.565W11x0.8
SKU003816BR30-5480-ER25-OFF69301~16 ER2542500095604475.531.528.569W16x0.8
SKU001519BR30-5480-ER25-OFF72956041.575.531.528.572W16x0.8
SKU001551BR30-5480-ER25-OFF72-CTS *9660439831.530.572W16x0.8
SKU001534BR40-5480-ER25-OFF90401~16 ER25425000116604475.54228.590W16x0.8
SKU001535BR40-5480-ER32-OFF902~20 ER32501248044110423490W20x0.8
SKU001536BR40-5480-ER32-OFF90-N **1248043110.84235.590W20x0.8
SKU001533BR40-5480-ER32-OFF90-CTS1288047130423690W20x0.8
SKU006800BR40-5480-ER40-OFF903~26 ER401248066110.8423690W24x1.25
SKU001543BR50-5480-ER40-OFF90503~26 ER406350001298649112423990W24x1.25
-BR50-5480-ER40-OFF90-CTS1298648.51334238.590W24x1.25
* CTS - Coolant-Through Spindle
** N - Counter-Clockwise Input to Clockwise Output Rotation

For the detailed list of compatible machine models - please click the Compatible Machines tab

L30000076

Alternative name:
