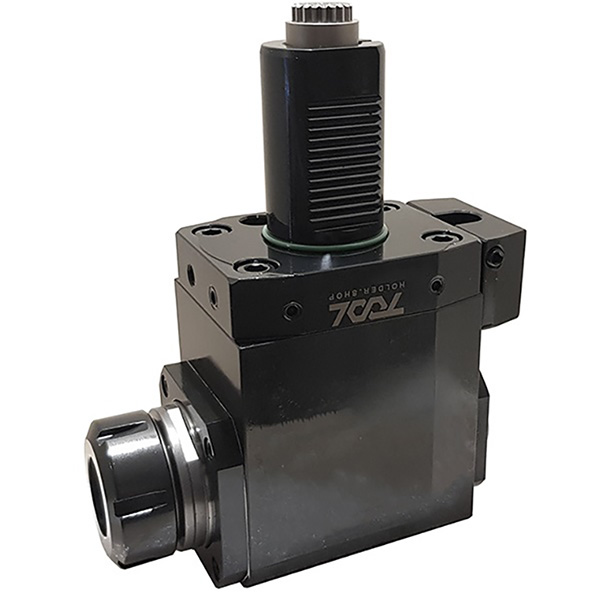

VDI30 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER25 L=85 mm INTERNAL COOLANT CW-CW

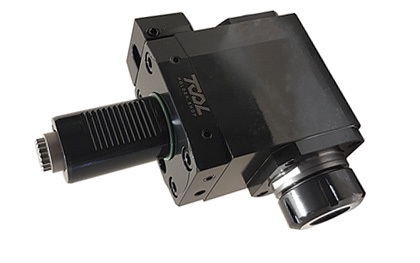

Figure L30000376: VDI30 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER25 L=85 mm INTERNAL COOLANT CW-CW

VDI30 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER25 L=85 mm INTERNAL COOLANT CW-CW

Table L30000376: VDI30 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER25 L=85 mm INTERNAL COOLANT CW-CW


Tool Holder Turret Interface:
  • Turret: N/S
  • Tooling Interface: VDI-30
  • Power Coupling: DIN5480
  • Y Axis: N/S

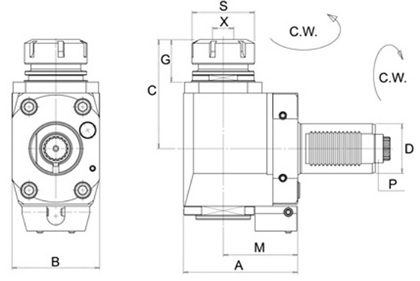

Part No.D
DIN 69880
X
Capacity
SMaximum
R.P.M.
iABCGMP
DIN 5480
FL30-5480-ER25-55-N-CTS *301~16 ER254240001 : 1876477.53055W16x0.8
FL30-5480-ER25-85-N-CTS301~16 ER254240001 : 11176477.53085W16x0.8
FL30-5480-ER25-100-N-CTS301~16 ER254240001 : 11326477.530100W16x0.8
FL40-5480-ER32-65-N **402~20 ER325050001 : 19980853465W20x0.8
FL40-5480-ER32-85-N402~20 ER325050001 : 111980853485W20x0.8
FL40-5480-ER32-100-N402~20 ER325050001 : 1134808534100W20x0.8
FL50-5480-ER40-75-N503~26 ER406350001 : 1115881023575W24x1.25
FL50-5480-ER40-75-N-CTS503~26 ER406340001 : 112388115.54975W24x1.25
FL50-5480-ER40-100-N503~26 ER406350001 : 11408810235100W24x1.25
FL60-5480-ER50-106-N6010~34 ER507850001 : 115610413956.5106W30x1.25
* CTS - Coolant-Through Spindle
** N - Clockwise Input to Clockwise Output Rotation

For the detailed list of compatible machine models - please click the Compatible Machines tab
