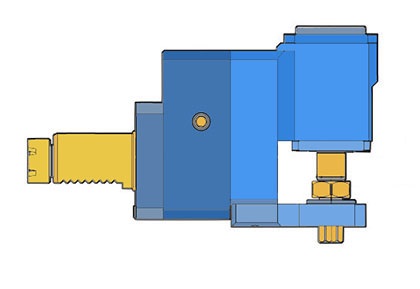

VDI40 SPUR-MT HOBBING HEAD OD=( 1)" L=111 mm RIGHT HAND
THS001602
Compatible lathes
- BARUFFALDI TOEM-200 TURRET VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- BARUFFALDI TOERR-200 TURRET VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- SPINNER TC-600MC TURRET BARUFFALDI-TBMA200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- SPINNER TC-67H TURRET BARUFFALDI-TOEM200 VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- FEMCO HL-35 RADIAL BARUFFALDI TURRET VDI40 SPUR-MT TOEM200 TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- FEMCO HL-45 TURRET BARUFFALDI VDI40 SPUR-MT TOEM200 TURRET ANY, VDI 40, SPUR-MT,
- SPINNER TS-66HMC TURRET BARUFFALDI AXIAL VDI40 SPUR-MT TOEM200 TURRET AXIAL, VDI 40, SPUR-MT,
- SPINNER TS-77MC TURRET BARUFFALDI AXIAL VDI40 SPUR-MT TOEM200 TURRET AXIAL, VDI 40, SPUR-MT,
- SPINNER TS-77HMC TURRET VDI40 SPUR-MT TOEM200 TURRET ANY, VDI 40, SPUR-MT,
- ACCUWAY UT-300 TURRET VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- ACCUWAY UT-300L TURRET VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- ANGELINI OSCAR TURRET VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- BARUFFALDI TBMA-200 TURRET AXIAL VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- BARUFFALDI TBMR-200 TURRET RADIAL VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- SPINNER TC-67HMC TURRET BARUFFALDI-TOEM200 VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- ECOCA MT-308MCS BARUFFALDI TURRET VDI40 SPUR-MT TBMA200 TURRET AXIAL, VDI 40, SPUR-MT,
- ECOCA MT-310MC TURRET BARUFFALDI-TBMA200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- ECOCA MT-312MC TURRET BARUFFALDI-TBMA200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- YIDA BML-600T TURRET BARUFFALDI TBMR200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- YIDA BML-280T TURRET BARUFFALDI TBMR200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- YIDA BML-600Y TURRET BARUFFALDI TBMR200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT, Y-AXIS
- YIDA BML-280Y TURRET BARUFFALDI TBMR200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT, Y-AXIS
- YIDA BML-600TY TURRET BARUFFALDI TBMR200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT, Y-AXIS
- YIDA BML-280TY TURRET BARUFFALDI TBMR200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT, Y-AXIS
- YIDA BML-600M TURRET BARUFFALDI TBMA200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- YIDA BML-420 TURRET BARUFFALDI TBMA200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- GSA+ CLT-100SP TURRET VDI40 SPUR-MT TOEM TURRET ANY, VDI 40, SPUR-MT,
- PROMPT MH-70A AXIAL BARUFFALDI TURRET VDI40 SPUR-MT TBMA200 TURRET ANY, VDI 40, SPUR-MT,
- PROMPT MH-60A AXIAL BARUFFALDI TURRET VDI40 SPUR-MT TBMA200 TURRET ANY, VDI 40, SPUR-MT,
- CHALLENGER BNC-1800 TURRET BARUFFALDI-TBMA160 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- KAAST T-TURN 390CY TURRET BARUFFALDI VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT, Y-AXIS
- KAAST U-TURN 290-1000MC TURRET TBMA-200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- KAAST U-TURN T300-1000MC TURRET TBMA-200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- KAAST R-TURN 300-390TMCY TURRET TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT, Y-AXIS
- KAAST U-TURN 290-650MC TURRET TBMA-200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- KAAST R-TURN 300-390TMC TURRET TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- KAAST R-TURN 300-535MCY TURRET TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT, Y-AXIS
- MILLTRONICS ML-18-60 TURRET BARUFFALDI VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- MILLTRONICS ML-22-60 TURRET BARUFFALDI VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- MILLTRONICS SL-6 TURRET BARUFFALDI VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- MILLTRONICS ML-26-40 TURRET BARUFFALDI VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- MILLTRONICS SL-10 TURRET BARUFFALDI VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- JOHNFORD SL-65C TURRET TBMA-200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- JOHNFORD SL-60C TURRET TBMA-200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- JOHNFORD SL-50C TURRET TBMA-200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- JOHNFORD TM-35 TURRET VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- JOHNFORD HT-35-2S TURRET TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- JOHNFORD HT-100-2S TURRET TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- JOHNFORD HT-60-2S TURRET TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- JOHNFORD HT-35-2SD TURRET TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- JOHNFORD HT-30-2SD TURRET TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- JOHNFORD HT-30-2S TURRET TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- JOHNFORD HT-80-2SD TURRET TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- JOHNFORD HT-40-2SD TURRET TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- JOHNFORD HT-60-2SD TURRET TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- JOHNFORD HT-80-2S TURRET TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- JOHNFORD HT-40-2S TURRET TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- JOHNFORD HT-100-2SD TURRET TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- TOPPER TB-25YMBC TURRET BARUFFALDI VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT, Y-AXIS
- DUGARD BNC-3500 TURRET BARUFFALDI TBMA-200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- DUGARD BNC-4000 TURRET BARUFFALDI TBMA-200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- DUGARD BNC-2600 TURRET BARUFFALDI TBMA-200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- DUGARD BNC-3000 TURRET BARUFFALDI TBMA-200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- DUGARD BNC-2200 TURRET BARUFFALDI TBMA-200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- YMT BML-600T TURRET BARUFFALDI TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- YMT BML-600L TURRET BARUFFALDI TBMA-200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- YMT BML-600Y TURRET BARUFFALDI TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT, Y-AXIS
- YMT BML-600TY TURRET BARUFFALDI TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT, Y-AXIS
- YMT BML-600M TURRET BARUFFALDI TBMA-200 VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- SPINNER TC-82MC TURRET VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- MITSEIKI TL-1860 TURRET BARUFFALDI VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- SPINNER TC-800MC TURRET VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- SPINNER TC-800SMCY TURRET VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT, Y-AXIS
- MITSEIKI TL-1840 TURRET BARUFFALDI VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- SPINNER TC-800MCY TURRET VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT, Y-AXIS
- JOHNFORD SL-650CF TURRET TBMR-200 VDI40 SPUR-MT TURRET RADIAL (STAR TYPE), VDI 40, SPUR-MT,
- TOPPER TB-25YMB TURRET VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT, Y-AXIS
- TOPPER TB-25YM TURRET VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT, Y-AXIS
- EXEN SBL600-750v2 TURRET BARUFFALDI VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- EXCEL SLT-400/1000 TURRET BARUFFALDI-TBMA VDI40 SPUR-MT TURRET AXIAL, VDI 40, SPUR-MT,
- TOPPER TNL-100ALSB TURRET VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
- TOPPER TNL-120ALS TURRET VDI40 SPUR-MT TURRET ANY, VDI 40, SPUR-MT,
$ USD
595900
595900

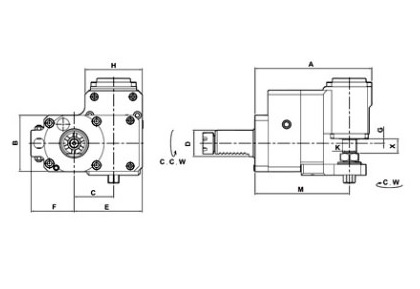

| SKU | D DIN 69880 |
X Capacity |
RPM | i | A | B | C | E | F | G | H | K | M |
| THS001604 THS001579 |
30 | 16 | 3000 | 3 : 1 | 133 | 64 | 45 | 77.5 | 49 | 5 | 65 | 16 | 107.5 |
| THS001603 THS001582 |
30 | 16 | 3000 | 3 : 1 | 133 | 64 | 45 | 77.5 | 49 | 5 | 65 | 25.4 | 107.5 |
| THS001601 THS001583 |
40 | 16 | 3000 | 3 : 1 | 136 | 70 | 45 | 77.5 | 75 | 5 | 65 | 16 | 110.5 |
| THS001602 THS001584 |
40 | 16 | 3000 | 3 : 1 | 136 | 70 | 45 | 77.5 | 75 | 5 | 65 | 25.4 | 110.5 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS001579 VDI30 SPUR-MT HOBBING HEAD OD=16 mm L=108 mm LEFT HAND | ||||||
| STRAIGHT | 16 mm | 108 mm |
ROTATION OTHER |
LEFT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001582 VDI30 SPUR-MT HOBBING HEAD OD=25.4 mm L=108 mm LEFT HAND | ||||||
| STRAIGHT | 25.4 mm | 108 mm |
ROTATION OTHER |
LEFT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001583 VDI40 SPUR-MT HOBBING HEAD OD=16 mm L=111 mm LEFT HAND | ||||||
| STRAIGHT | 16 mm | 111 mm |
ROTATION OTHER |
LEFT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001584 VDI40 SPUR-MT HOBBING HEAD OD=( 1)" L=111 mm LEFT HAND | ||||||
| STRAIGHT | ( 1)" | 111 mm |
ROTATION OTHER |
LEFT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001601 VDI40 SPUR-MT HOBBING HEAD OD=16 mm L=111 mm RIGHT HAND | ||||||
| STRAIGHT | 16 mm | 111 mm |
ROTATION OTHER |
RIGHT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001602 VDI40 SPUR-MT HOBBING HEAD OD=( 1)" L=111 mm RIGHT HAND | ||||||
| STRAIGHT | ( 1)" | 111 mm |
ROTATION OTHER |
RIGHT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001603 VDI30 SPUR-MT HOBBING HEAD OD=25.4 mm L=108 mm RIGHT HAND | ||||||
| STRAIGHT | 25.4 mm | 108 mm |
ROTATION OTHER |
RIGHT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001604 VDI30 SPUR-MT HOBBING HEAD OD=16 mm L=108 mm RIGHT HAND | ||||||
| STRAIGHT | 16 mm | 108 mm |
ROTATION OTHER |
RIGHT HAND | EXTERNAL COOLANT | STRAIGHT |
Updated 202507.03
Tool holder machine interface: ANY turret, VDI-40, SPUR-MT, ANY
