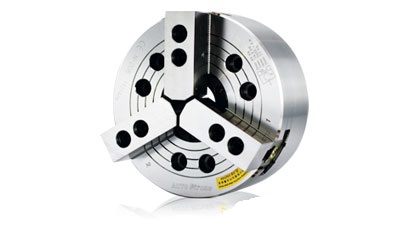

CHUCK POWER 3 JAWS 18" SPINDLE ADAPTER A2-15
THS004449

$ USD USD 468500
SKU Through-
Hole
(mm)		 Plunger
Stroke
(mm)		 Jaw stroke
(in dia.)
(mm)		 Max.
Pull / Grip Force
(kgf)		 Max.
Operating Pressure
(kgf/cm2)		 RPM Moment
of Inertia
(kg/m2)		 Matching
Cylinder		 Matching
Hard Jaw		 Matching
Soft Jaw		 Gripping
O.D. Range
(mm)
SKP007765 Ø33 10 5.4 1784 / 3671 28.5 7000 0.020 M-1036 HJ-05 HC-05 Ø6 ~ Ø135
SKP002876 0.023
SKP007766 Ø45 12 5.5 2243 / 5812 28.5 6000 0.062 M-1246 HJ-06 HC-06 Ø15 ~ Ø169
SKP007767 Ø52 16 7.4 3558 / 9075 26.5 5000 0.190 M-1552 HJ-08 HC-08 Ø20 ~ Ø210
THS013334 0.184
SKP007768 Ø75 19 8.8 4385 / 11319 27.5 4200 0.370 M-1875 HJ-10 HC-10 Ø25 ~ Ø254
SKP002914 0.340
SKP013418 Ø91 23 10.6 5812 / 14990 27.5 3300 0.809 M-2091 HJ-12 HC-12 Ø30 ~ Ø304
SKP007769 0.770
SKP008047 0.912
SKP007770 Ø117.5 23 10.6 7240 / 18355 23.5 2500 2.255 M-2511 HJ-15 HC-15 Ø50 ~ Ø381
SKP002551 2.241
THS004448 Ø117.5 23 10.6 7240 / 18355 23.5 2000 3.961 M-2511 HJ-15 HC-15 Ø50 ~ Ø450
THS004447 3.744
THS004449 5.183
SKP007772 Ø180 23 10.6 9177 / 23861 30.6 1800 7.355 ML-2816 HJ-24-1 HC-24-1 Ø120 ~ Ø510
SKP002558 6.910
SKP007773 Ø205 26 12 9177 / 23861 26.5 1400 18.199 ML-3320 HJ-24-1 HC-24-1 Ø150 ~ Ø610
SKP002987 17.376


SKU A B C
(H6)		 D E F G H J K L M N
max.		 O
max.		 O
min.		 P
max.		 P
min.		 Q R S T U
max.		 V W X Y Reference

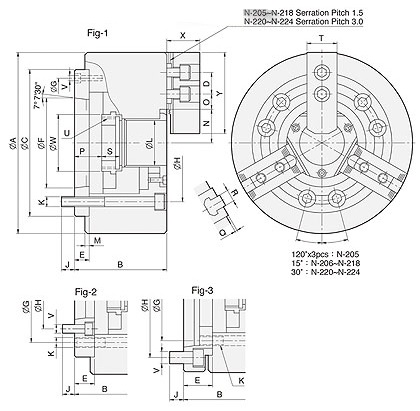

SKP007765 135 71 110 14 15 63.513 96 82.55 15.5 3-M10 33 4 26.5 19.75 7.75 16 6 2 10 20 25 M40x1.5 3-M6 45 31 54 Fig-1
SKP002876 135 88 110 14 32 82.563 82.55 104.78 14 3-M10 33 4 26.5 19.75 7.75 33 23 2 10 20 25 M40x1.5 6-M10 45 31 54 Fig-3
SKP007766 169 91 140 20 15 82.563 116 104.78 16 6-M10 45 5 32 22.75 9.25 26 14 2 12 19 31 M55x2 3-M6 60 37 73 Fig-1
SKP007767 210 109 170 25 23 82.563 133.35 104.78 13 6-M12 52 5 38.7 29.75 11.75 37.5 21.5 2 14 20.5 35 M60x2 6-M10 66 38 95 Fig-2
THS013334 210 103 170 25 17 106.375 150 133.35 18 6-M12 52 5 38.7 29.75 11.75 31.5 15.5 2 14 20.5 35 M60x2 6-M10 66 38 95 Fig-1
SKP007768 254 120 220 30 25 106.375 171.45 133.35 18 6-M16 75 5 51 33.75 14.25 33.5 14.5 2 16 25 40 M85x2 6-M12 94 43 110 Fig-2
SKP002914 254 113 220 30 18 139.719 190 171.45 24 6-M16 75 5 51 33.75 14.25 26.5 7.5 2 16 25 40 M85x2 3-M8 94 43 110 Fig-1
SKP013418 304 129 220 30 25 106.375 171.45 133.35 18 6-M16 91 6 61.3 45.75 15.75 33 10 2 21 28 50 M100x2 6-M12 108 51 130 Fig-2
SKP007769 304 122 220 30 18 139.719 190 171.45 25 6-M16 91 6 61.3 45.75 15.75 26 3 2 21 28 50 M100x2 3-M8 108 51 130 Fig-1
SKP008047 304 154 220 30 50 196.869 171.45 235 28 6-M16 91 6 61.3 45.75 15.75 58 35 2 21 28 50 M100x2 6-M20 108 51 130 Fig-3
SKP007770 381 160 300 43 33 139.719 235 171.45 24 6-M20 117.5 6 82 45.25 15.25 40 17 5 22 43 62 M130x2 6-M16 139 66 165 Fig-2
SKP002551 381 149 300 43 22 196.869 260 235 28 6-M20 117.5 6 82 45.25 15.25 29 6 5 22 43 62 M130x2 3-M20 139 66 165 Fig-1
THS004448 450 160 300 43 33 139.719 235 171.45 24 6-M20 117.5 6 82 79.75 15.25 40 6 5 22 43 62 M130x2 6-M16 139 66 165 Fig-2
THS004447 450 149 300 43 22 196.869 260 235 28 6-M20 117.5 6 82 79.75 15.25 29 6 5 22 43 62 M130x2 3-M10 139 66 165 Fig-1
THS004449 450 184 300 43 57 285.775 235 330.2 24 6-M20 117.5 6 82 79.75 15.25 64 41 5 22 43 62 M130x2 6-M24 139 66 165 Fig-3
SKP007772 510 169 380 60 41 196.869 330.2 235 30 6-M24 180 6 112.5 60.5 24.5 52 29 5 25 38 65 M190x3 6-M20 206 73 180 Fig-2
SKP002558 510 155 380 60 27 285.775 330.2 330.2 33 6-M24 180 6 112.5 60.5 24.5 38 15 5 25 38 65 M190x3 3-M12 206 73 180 Fig-1
SKP007773 610 186 520 60 45 196.869 463.6 235 28 6-M24 205 6 139.9 87.5 24.5 61 35 5 25 38 65 M215x3 6-M20 230 73 180 Fig-2
SKP002987 610 183 520 60 42 285.775 463.6 330.2 33 6-M24 205 6 139.9 87.5 24.5 58 32 5 25 38 65 M215x3 6-M24 230 73 180 Fig-2


Compatibility with Kitagawa Chucks
SKP007765 Kitagawa B-205A4
SKP002876 Kitagawa B-205A5
SKP007766 Kitagawa B-206A5
SKP007767 Kitagawa B-208A5
THS013334 Kitagawa B-208A6
SKP007768 Kitagawa B-210A6
SKP002914 Kitagawa B-210A8
SKP013418 Kitagawa B-212A6
SKP007769 Kitagawa B-212A8
SKP008047 Kitagawa B-212A11
SKP007770 Kitagawa B-215A8
SKP002551 Kitagawa B-215A11
THS004448 Kitagawa B-218A8
THS004447 Kitagawa B-218A11
THS004449 Kitagawa B-218A15
SKP007772 Kitagawa B-220A11
SKP002558 Kitagawa B-220A15
SKP007773 Kitagawa B-224A11
SKP002987 Kitagawa B-224A15

DIRECTION CAPACITY PROJECTION ROTATION HAND COOLANT OFFSET
THS004447 CHUCK POWER 3 JAWS 18" SPINDLE ADAPTER A2-11

THS004448 CHUCK POWER 3 JAWS 18" SPINDLE ADAPTER A2-8

THS004449 CHUCK POWER 3 JAWS 18" SPINDLE ADAPTER A2-15

THS013334 CHUCK POWER 3 JAWS 8" SPINDLE ADAPTER A2-6

THS013675 CHUCK POWER 3 JAWS 10" SPINDLE ADAPTER A2-6

THS015266 CHUCK POWER 3 JAWS 5" SPINDLE ADAPTER A2-4

THS015268 CHUCK POWER 3 JAWS 5" SPINDLE ADAPTER A2-5

THS015269 CHUCK POWER 3 JAWS 6" SPINDLE ADAPTER A2-5

THS015271 CHUCK POWER 3 JAWS 8" SPINDLE ADAPTER A2-5

THS015273 CHUCK POWER 3 JAWS 10" SPINDLE ADAPTER A2-8

THS015275 CHUCK POWER 3 JAWS 12" SPINDLE ADAPTER A2-11

THS015276 CHUCK POWER 3 JAWS 12" SPINDLE ADAPTER A2-6

THS015277 CHUCK POWER 3 JAWS 12" SPINDLE ADAPTER A2-8

THS015279 CHUCK POWER 3 JAWS 15" SPINDLE ADAPTER A2-11

THS015280 CHUCK POWER 3 JAWS 15" SPINDLE ADAPTER A2-8

THS015282 CHUCK POWER 3 JAWS 20" SPINDLE ADAPTER A2-11

THS015283 CHUCK POWER 3 JAWS 20" SPINDLE ADAPTER A2-15

THS015285 CHUCK POWER 3 JAWS 24" SPINDLE ADAPTER A2-11

THS015286 CHUCK POWER 3 JAWS 24" SPINDLE ADAPTER A2-15


Updated 202505.24
