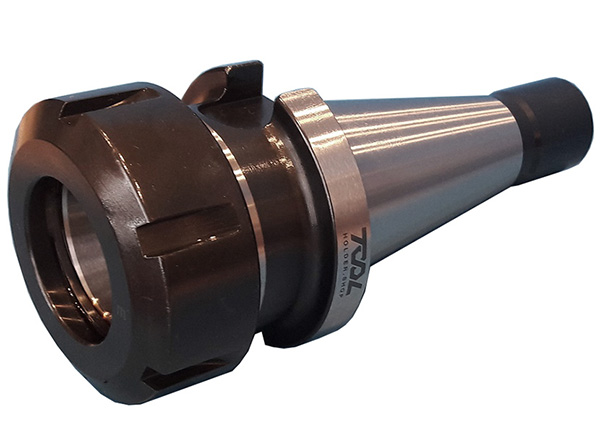

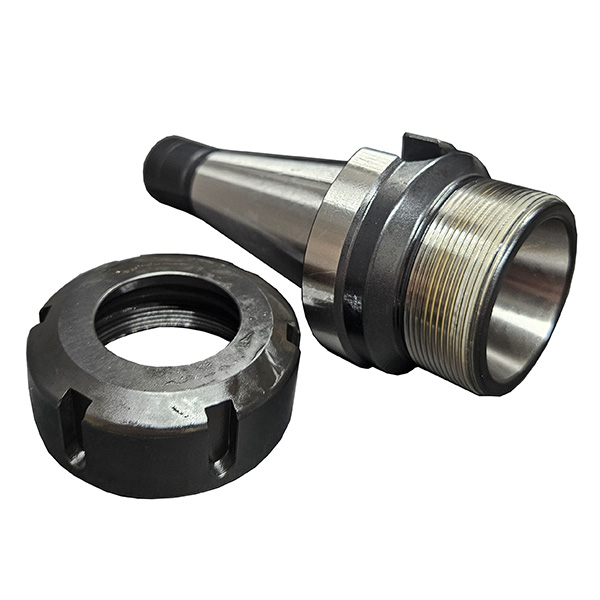

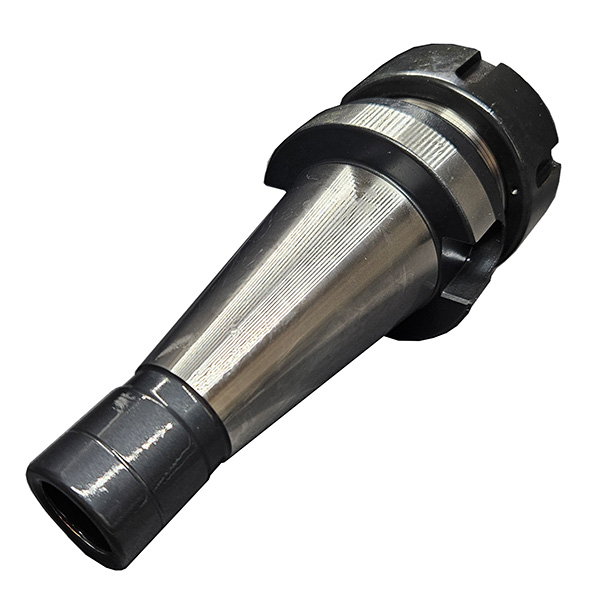

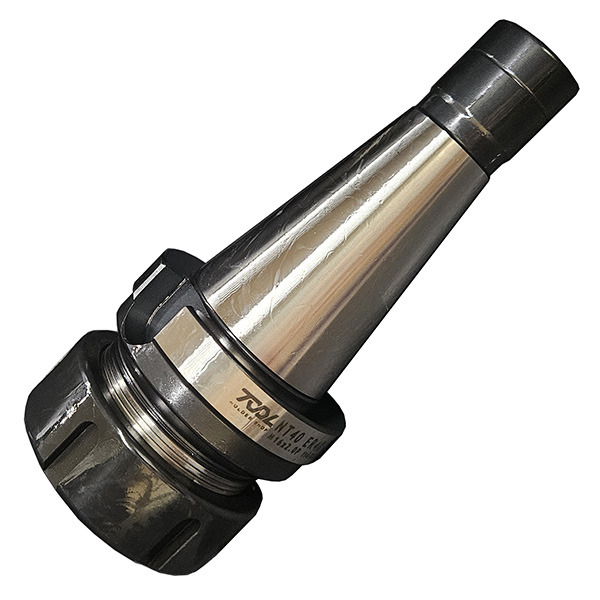

NT40 COLLET CHUCK ER40 L= 55 mm THREAD 5/8"-11
THS016471
$ USD
20000
20000
| SKU | NT Shank | ER Size | Ø D | L | G |
| THS005544 | NT30 | ER16 | 28 | 76 | M12x1.75P |
| THS005545 | ER32 | 50 | 55 | 1/2"-12 UNC | |
| THS005546 | ER40 | 63 | 85 | 1/2"-13 UNC | |
| THS005547 | NT40 | ER16 | 28 | 76 | M16x2.0P 5/8"-11 UNC |
| THS005548 | ER16 | 28 | 100 | ||
| THS005549 | ER20 | 34 | 76 | ||
| THS005550 | ER20 | 34 | 100 | ||
| THS005551 | ER32 | 50 | 50 | ||
| THS006403 | ER40 | 63 | 50 | ||
| THS005552 | ER40 | 63 | 55 | ||
| THS005553 | NT50 | ER16 | 28 | 100 | M24x3.0P |
| THS005554 | ER16 | 28 | 160 | M24x3.0P | |
| THS005555 | ER20 | 34 | 100 | M24x3.0P | |
| THS005556 | ER20 | 34 | 160 | M24x3.0P | |
| THS006416 | ER32 | 50 | 50 | 5/8"-11 UNC | |
| THS005557 | ER32 | 50 | 58 | M24x3.0P | |
| THS013657 | ER32 | 50 | 58 | 1"-8 UNC | |
| THS013663 | ER32 | 50 | 75 | 1"-8 UNC | |
| THS005558 | ER40 | 63 | 58 | M16x2.0P | |
| THS013656 | ER40 | 63 | 58 | 1"-8 UNC | |
| THS013664 | ER40 | 63 | 80 | 1"-8 UNC |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS005544 NT30 COLLET CHUCK ER16 L= 76 mm | ||||||
|
|
||||||
| THS005545 NT30 COLLET CHUCK ER32 L= 55 mm UNC 1/2"-12 | ||||||
|
|
||||||
| THS005546 NT30 COLLET CHUCK ER40 L= 85 mm | ||||||
|
|
||||||
| THS005547 NT40 COLLET CHUCK ER16 L= 76 mm | ||||||
|
|
||||||
| THS005548 NT40 COLLET CHUCK ER16 L=100 mm | ||||||
|
|
||||||
| THS005549 NT40 COLLET CHUCK ER20 L= 76 mm | ||||||
|
|
||||||
| THS005550 NT40 COLLET CHUCK ER20 L=100 mm | ||||||
|
|
||||||
| THS005551 NT40 COLLET CHUCK ER32 L= 50 mm THREAD 5/8"-11 TPI | ||||||
|
|
||||||
| THS005552 NT40 COLLET CHUCK ER40 L= 55 mm THREAD M16x2 | ||||||
|
|
||||||
| THS005553 NT50 COLLET CHUCK ER16 L=100 mm | ||||||
|
|
||||||
| THS005554 NT50 COLLET CHUCK ER16 L=160 mm | ||||||
|
|
||||||
| THS005555 NT50 COLLET CHUCK ER20 L=100 mm | ||||||
|
|
||||||
| THS005556 NT50 COLLET CHUCK ER20 L=160 mm | ||||||
|
|
||||||
| THS005557 NT50 COLLET CHUCK ER32 L= 58 mm | ||||||
|
|
||||||
| THS005558 NT50 COLLET CHUCK ER40 L= 58 mm M16x2 | ||||||
|
|
||||||
| THS006403 NT40 COLLET CHUCK ER40 L= 60 mm | ||||||
| STRAIGHT | ER40 | 58 mm |
CW-CW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS006416 NT50 COLLET CHUCK ER32 L= 50 mm | ||||||
|
|
||||||
| THS013656 NT50 COLLET CHUCK ER40 L= 58 mm 1"-8 UNC | ||||||
|
|
||||||
| THS013657 NT50 COLLET CHUCK ER32 L= 58 mm 1"-8 UNC | ||||||
|
|
||||||
| THS013663 NT50 COLLET CHUCK ER32 L= 75 mm 1"-8 UNC | ||||||
|
|
||||||
| THS013664 NT50 COLLET CHUCK ER40 L= 80 mm 1"-8 UNC | ||||||
|
|
||||||
| THS014192 NT30 COLLET CHUCK ER32 UNC12 L= 60 mm | ||||||
|
|
||||||
| THS014193 NT30 COLLET CHUCK ER32 UNC13 L= 60 mm | ||||||
|
|
||||||
| THS014744 VACANT | ||||||
|
|
||||||
| THS016471 NT40 COLLET CHUCK ER40 L= 55 mm THREAD 5/8"-11 | ||||||
|
|
||||||
| THS017272 NT40 COLLET CHUCK ER40 L= 70 mm THREAD 5/8"W11 | ||||||
| STRAIGHT | ER40 | 70 mm |
CW-CW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS017281 NT40 COLLET CHUCK ER40 L= 70 mm THREAD M16x2.0P | ||||||
| STRAIGHT | ER40 | 70 mm |
CW-CW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS018342 NT40 COLLET CHUCK ER40 L= 60 mm | ||||||
|
|
||||||
| THS019435 NT50 COLLET CHUCK ER50 L= 80 mm 1"-8 UNC | ||||||
|
|
||||||
| THS019949 NT50 COLLET CHUCK ER50 L= 80 mm M24x3.0P | ||||||
|
|
||||||
Updated 202504.30
