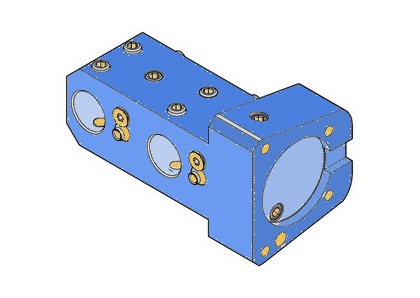

WASINO A12 BORING BAR HOLDER DOUBLE ID=( 1- 1/ 4)" x2 L=130 mm
THS003924
$ USD
81600
81600

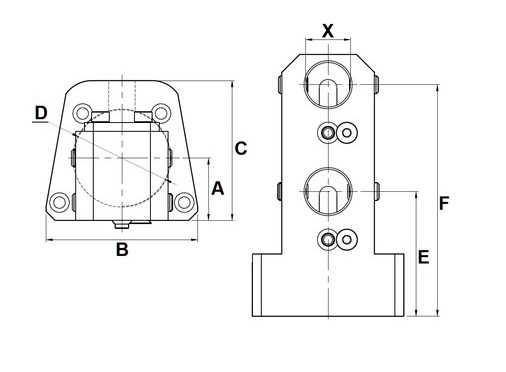

| SKU | D | X | A | B | C | E | F | WASINO LATHE |
| THS000024 | 55 | 16 | 35 | 85 | 78.5 | 70 | 130 | WASINO A-12 |
| THS000027 | 25 | |||||||
| THS003925 | 1" | |||||||
| THS003924 | 1-1/4" |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS000024 WASINO A12 BORING BAR HOLDER DOUBLE 2xID=16 mm L=85 mm | ||||||
| STRAIGHT | 16 mm | 85 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS000027 WASINO A12 BORING BAR HOLDER DOUBLE ID=25 mm L=130 mm | ||||||
| STRAIGHT | 25 mm | 130 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS003924 WASINO A12 BORING BAR HOLDER DOUBLE ID=( 1- 1/ 4)" x2 L=130 mm | ||||||
| STRAIGHT | ( 1- 1/ 4)" | 130 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS003925 WASINO A12 BORING BAR HOLDER DOUBLE ID=( 1)" x2 L=130 mm INTERNAL COOLANT | ||||||
| STRAIGHT | ( 1)" | 130 mm |
STATIC STATIC |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
Updated 202404
Tool holder machine interface: ANY turret, WASINO A12-55, STATIC, ANY
