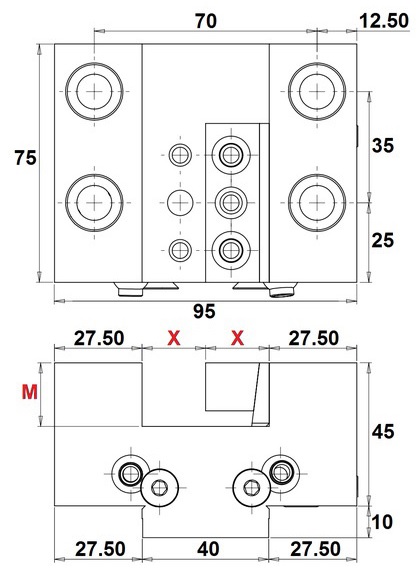

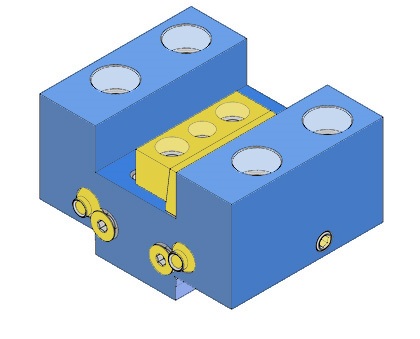

BMT BOLT PATTERN 35x70 FACING HOLDER H=( 3/ 4)" L=45 mm FOR TAKAMAZ X10 X12 XY10 XY12
THS007930
$ USD
53300
53300
| SKU | X | M | TAKAMAZ LATHE |
| THS007930 | 3/4" | 3/4" | TAKAMAZ X-10 TAKAMAZ X-12 TAKAMAZ XY-10 TAKAMAZ XY-12 |
| THS007931 | 20 mm | 20 mm |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS007930 BMT BOLT PATTERN 35x70 FACING HOLDER H=( 3/ 4)" L=45 mm FOR TAKAMAZ X10 X12 XY10 XY12 | ||||||
| STRAIGHT | ( 3/ 4)" | 45 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS007931 BMT BOLT PATTERN 35x70 FACING HOLDER H=20 mm L=45 mm TAKAMAZ X10 X12 XY10 XY12 | ||||||
| STRAIGHT | 20 mm | 45 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: RADIAL (STAR TYPE) turret, TAKAMAZ X10 X12-BOLT PATTERN 35x70 Takamaz X100, STATIC, ANY
