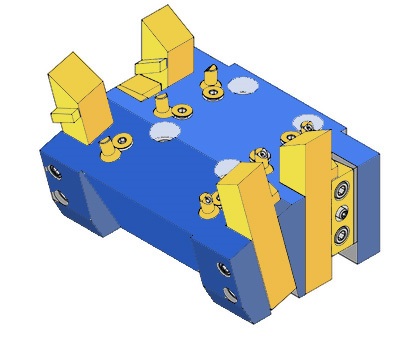

BMT55 BOLT PATTERN 50x60 TURNING HOLDER QUAD H=20 mm L=73 HALF INDEX PCD375 NAKAMURA AS200
THS018005
$ USD
157500
157500

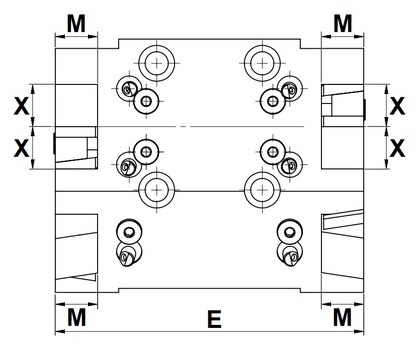

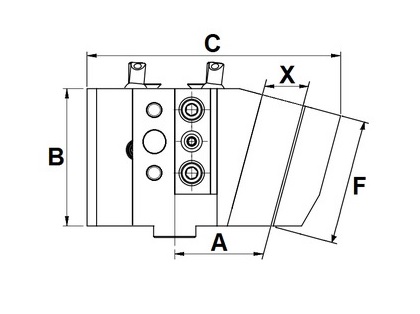

| SKU | A | X | B | C | E | F | M | PCD | NAKAMURA LATHE |
| THS013590 | 15° | 16 | 62.5 | 120 | 114 | 62.5 | 16 | 370 | NAKAMURA WT100 NAKAMURA NTJ100 |
| THS013495 - OEM NAKAMURA R1452 | 15° | 20 | 65 | 120 | 146 | 65 | 20 | 340 | NAKAMURA WT150 |
| THS013496 | 85 | 85 |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS013495 BMT55 BOLT PATTERN 50x60 TURNING HOLDER QUADRUPLE H=20mm L=98mm HALF INDEX NAKAMURA WT150 | ||||||
| STRAIGHT | 20 mm | 98 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | HALF INDEX |
| THS013496 BMT55 BOLT PATTERN 50x60 TURNING HOLDER QUADRUPLE H=20mm L=98mm HALF INDEX NAKAMURA WT150 | ||||||
| STRAIGHT | 20 mm | 98 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | HALF INDEX |
| THS013590 BMT44 BOLT PATTERN 40x55 TURNING HOLDER QUADRUPLE H=16 mm L=63 HALF INDEX NAKAMURA NTJ100 | ||||||
| STRAIGHT | 16 mm | 63 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | HALF INDEX |
| THS018005 BMT55 BOLT PATTERN 50x60 TURNING HOLDER QUAD H=20 mm L=73 HALF INDEX PCD375 NAKAMURA AS200 | ||||||
| STRAIGHT | 20 mm | 73 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | HALF INDEX |
Updated 202505.11
