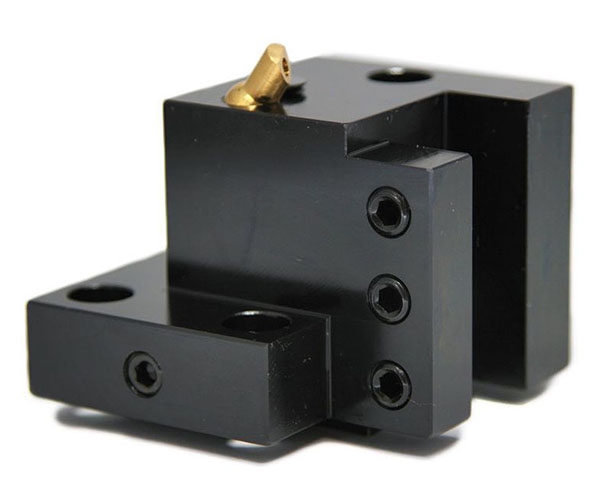

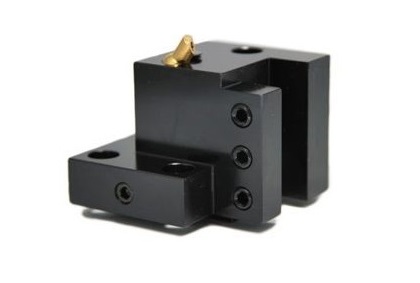

BMT55 BOLT PATTERN 50x60 TURNING HOLDER H=20 mm L=65 mm RH NAKAMURA Z7414 NAKAMURA WT150
THS013221
Compatible lathes
- NAKAMURA SUPER-NTJ TURRET RADIAL BMT55 TURRET RADIAL (STAR TYPE), BMT 55, DIN1809,
- NAKAMURA WT-250II TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA WTW-150 TURRET BMT55 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA WTS-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA WT-150 24-TLS TURRET DIA. 55 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA SC-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, BEVEL GEAR,
- NAKAMURA AS-200 15-TLS TURRET BMT55 TURRET
- NAKAMURA WT-250 TURRET VDI40 DIN1809 TURRET ANY, VDI 40, DIN1809,
- NAKAMURA WT-150LB TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA WT-20IIMY TURRET
- NAKAMURA WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, Y-AXIS
- NAKAMURA SC-200MY TURRET
- NAKAMURA SC-250M TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA AS-200 12 TOOLS STAR TURRET BMT55 TURRET
- NAKAMURA TMC-15M TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, BEVEL GEAR,
- NAKAMURA SC-150M TURRET
- NAKAMURA WT-20IIM TURRET
- NAKAMURA WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ANY
- NAKAMURA WT-20I TURRET TURRET
53300

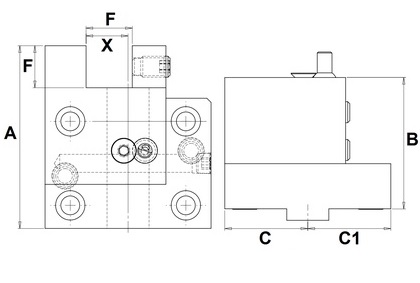

| SKU | X | A | B | C | C1 | E | F | NAKAMURA LATHE |
| THS007287 | 20 | 87 | 62.5 | 39.5 | 39.5 | 22 | 20 | NAKAMURA TW8 NAKAMURA WT100 |
| THS007332 | 25 | 100 | 65 | 46.5 | 41.5 | 27 | 25 | NAKAMURA WT150 |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS007287 BMT44 BOLT PATTERN 40x55 TURNING HOLDER H=20 mm L=44 RIGHT NAKAMURA WT100 NAKAMURA TW8 | ||||||
| STRAIGHT | 20 mm | 44 mm |
STATIC STATIC |
RIGHT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS007332 BMT BOLT PATTERN 50x60 TURNING HOLDER H=25mm L=65mm REVERSE NAKAMURA WT150 NAKAMURA AS200 | ||||||
| STRAIGHT | 25 mm | 65 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS013221 BMT55 BOLT PATTERN 50x60 TURNING HOLDER H=20 mm L=65 mm RH NAKAMURA Z7414 NAKAMURA WT150 | ||||||
| STRAIGHT | 20 mm | 65 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-BOLT PATTERN 50x60 NAKAMURA WT150 NAKAMURA TW10, STATIC, ANY
COMPATIBLE LATHES
NAKAMURA SUPER-NTJ TURRET RADIAL BMT55 TURRET RADIAL (STAR TYPE), BMT 55, DIN1809, ; NAKAMURA WT-250II TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA WTW-150 TURRET BMT55 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA WTS-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA WT-150 24-TLS TURRET DIA. 55 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA SC-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, BEVEL GEAR, ; NAKAMURA AS-200 15-TLS TURRET BMT55 TURRET ; NAKAMURA WT-250 TURRET VDI40 DIN1809 TURRET ANY, VDI 40, DIN1809, ; NAKAMURA WT-150LB TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA WT-20IIMY TURRET ; NAKAMURA WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, Y-AXIS; NAKAMURA SC-200MY TURRET ; NAKAMURA SC-250M TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA AS-200 12 TOOLS STAR TURRET BMT55 TURRET ; NAKAMURA TMC-15M TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, BEVEL GEAR, ; NAKAMURA SC-150M TURRET ; NAKAMURA WT-20IIM TURRET ; NAKAMURA WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ANY; NAKAMURA WT-20I TURRET TURRET ;
