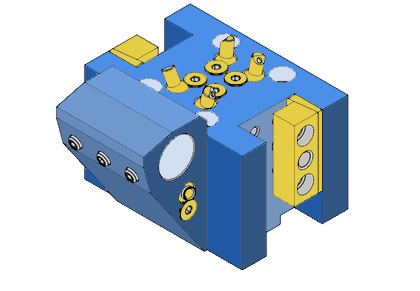

BMT44 BOLT PATTERN 40x55 TURNING HOLDER HALF INDEX H=20 mm ID=25 mm L=56 NAKAMURA WT100
THS010058
Compatible lathes
- NAKAMURA WT-100 TURRET DIA.44 TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809,
- NAKAMURA SUPER-NTMX TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809,
- GOODWAY GTS-260 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- GOODWAY GTS-150M TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- NAKAMURA NTJ-100 TURRET PCD-300 DIA.44 TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809,
- NAKAMURA WY-100 TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809, Y-AXIS
- NAKAMURA TW-8MM TURRET DIA.42 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- NAKAMURA NTY3-250 3 TURRETS TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809, ANY
- NAKAMURA TW-10ALT TURRET DIA.42 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- GOODWAY GTS-200 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- NAKAMURA TW-8MR TURRET DIA.42 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- NAKAMURA TW-8ML TURRET DIA.42 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- GOODWAY GTS-200M TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- GOODWAY GTS-200MS TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- GOODWAY GTS-100 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- GOODWAY GLS-150 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR, ANY
- GOODWAY GTS-150 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
$ USD
87500
87500

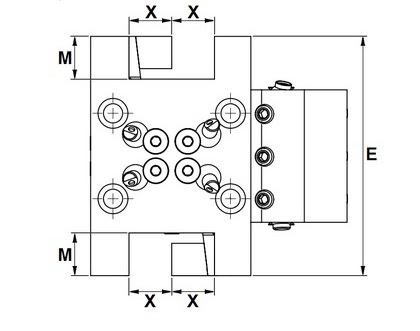

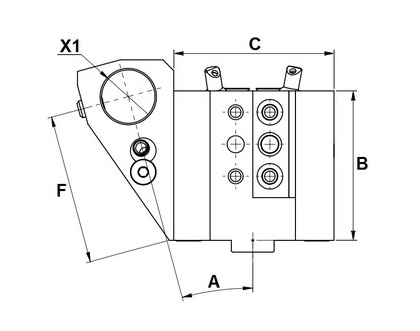

| SKU | A | X | X1 | B | C | E | F | M | NAKAMURA LATHE |
| THS010365 | 15° | 16 | 25 | 62.5 | 79 | 112 | 92.5 | 16 | NAKAMURA WT-100 NAKAMURA NTJ-100 |
| THS010058 | 15° | 20 | 25 | 70 | 75 | 112 | 75 | 20 | |
| THS010366 | 15° | 20 | 25 | 82.5 | 76 | 112 | 92.5 | 16 |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS010058 BMT44 BOLT PATTERN 40x55 TURNING HOLDER HALF INDEX H=20 mm ID=25 mm L=56 NAKAMURA WT100 | ||||||
| STRAIGHT | 20 mm | 56 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | HALF INDEX |
| THS010365 BMT44 BOLT PATTERN 40x55 TURNING HOLDER DOUBLE H=16mm L=56 HALF INDEX ID=25 NAKAMURA WT100 | ||||||
| STRAIGHT | 16 mm | 56 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | HALF INDEX |
| THS010366 BMT44 BOLT PATTERN 40x55 TURNING HOLDER HALF INDEX H=20 mm ID=25 mm L=56 NAKAMURA NTJ100 | ||||||
| STRAIGHT | 20 mm | 56 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | HALF INDEX |
Updated 202505.11
Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-BOLT PATTERN 40x55 NAKAMURA TW8 NAKAMURA NTJ100 NAKAMURA WT100 NAKAMURA BMT44, STATIC, ANY
