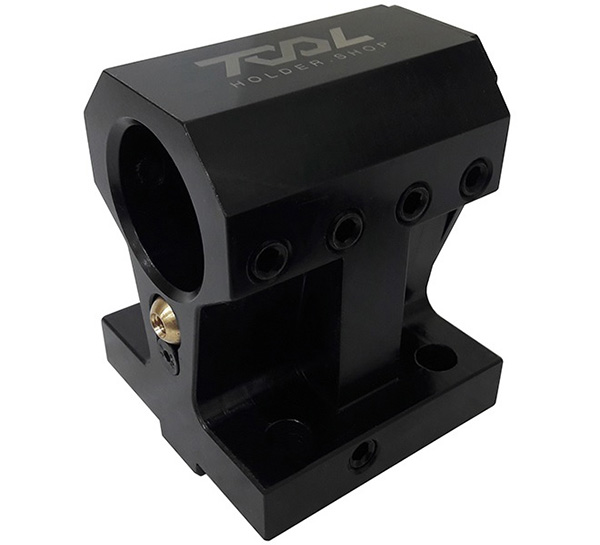

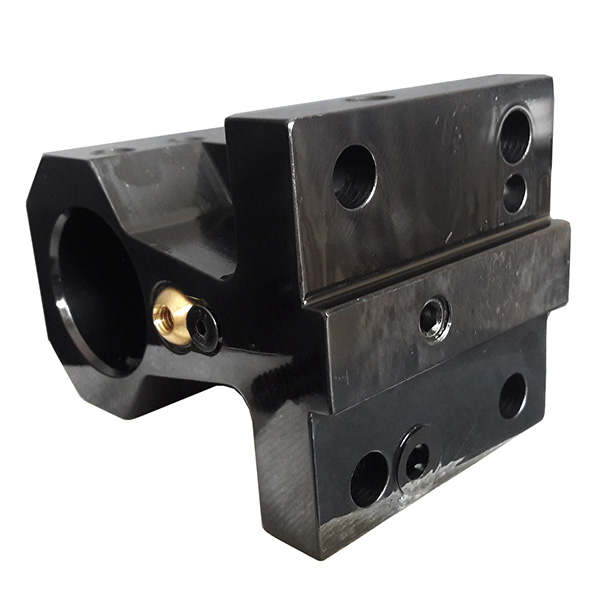

BMT BOLT PATTERN 69x71 BORING BAR HOLDER ID=32 mm L=90 mm FOR NAKAMURA WT300 INT EXT CLNT
THS013544
Compatible lathes
- NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809,
- NAKAMURA SC-300L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, BEVEL GEAR,
- NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
$ USD
74200
74200

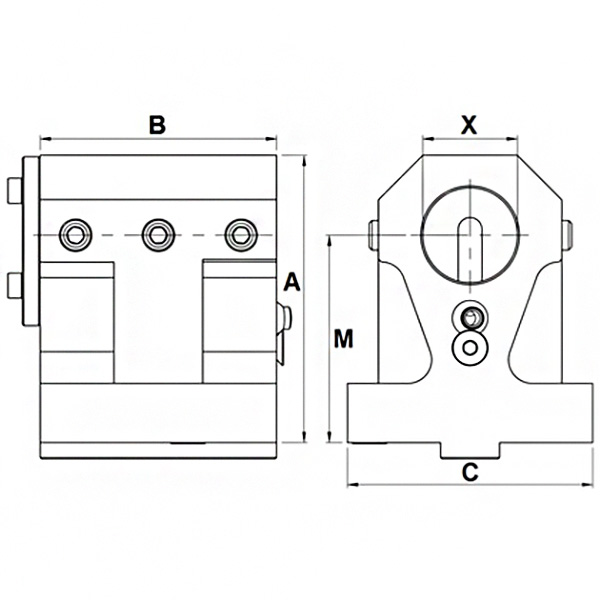

| SKU | X | A | B | C | M | NAKAMURA LATHE |
| THS013565 | 32 | 86 | 62 | 79 | 60 | NAKAMURA TW8 |
| THS013566 | 32 | 101 | 62 | 79 | 75 | NAKAMURA WT100 |
| THS001765 | 1-1/4" | 97 | 80 | 83 | 70 | NAKAMURA WT150 |
| THS001684 | 32 | 97 | 80 | 83 | 70 | |
| THS006784 | 1-1/2" | 102 | 80 | 83 | 70 | |
| THS013544 | 32 | 122 | 100 | 96 | 90 | NAKAMURA WT300 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS001684 BMT BOLT PATTERN 50x60 BORING BAR HOLDER ID=32 mm L=70 mm INT CLT FOR NAKAMURA WT150 Z2417 | ||||||
| STRIGHT | 32 mm | 70 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS001765 BMT BOLT PATTERN 50x60 BORING BAR HOLDER ID=( 1- 1/ 4)" L=70 mm FOR NAKAMURA WT150 INT EXT | ||||||
| STRIGHT | ( 1- 1/ 4)" | 70 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |

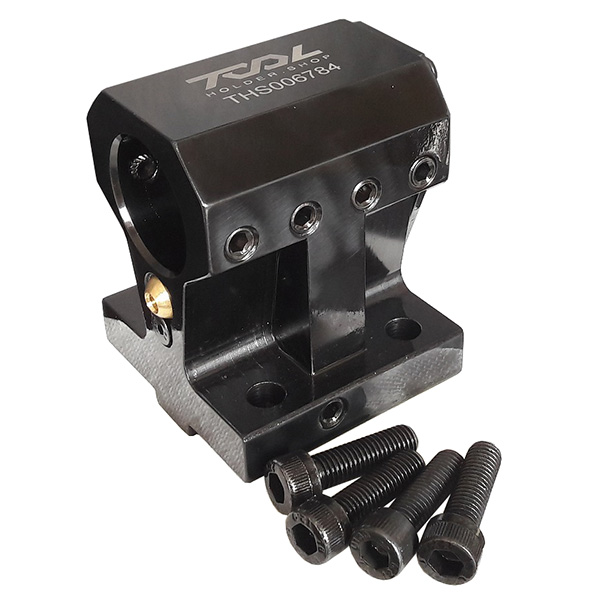

| THS006784 BMT BOLT PATTERN 50x60 BORING BAR HOLDER ID=(1-1/2)" L=70 mm FOR NAKAMURA WT150 INT EXT | ||||||
| STRIGHT | TAPER B12 | 70 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS013544 BMT BOLT PATTERN 69x71 BORING BAR HOLDER ID=32 mm L=90 mm FOR NAKAMURA WT300 INT EXT CLNT | ||||||
| STRIGHT | 32 mm | 90 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT |
| THS013565 BMT BOLT PATTERN 40x55 BORING BAR HOLDER ID=32 mm L=60 mm FOR NAKAMURA TW8 INT EXT CLNT | ||||||
| STRIGHT | 32 mm | 60 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT |
| THS013566 BMT BOLT PATTERN 40x55 BORING BAR HOLDER ID=32 mm L=75 mm FOR NAKAMURA WT100 INT EXT CLNT | ||||||
| STRIGHT | 32 mm | 75 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT |
Updated 202305
Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-BOLT PATTERN 69x71 NAKAMURA WT300, STATIC, ANY
COMPATIBLE LATHES
NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, ; NAKAMURA SC-300L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, BEVEL GEAR, ; NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS;
