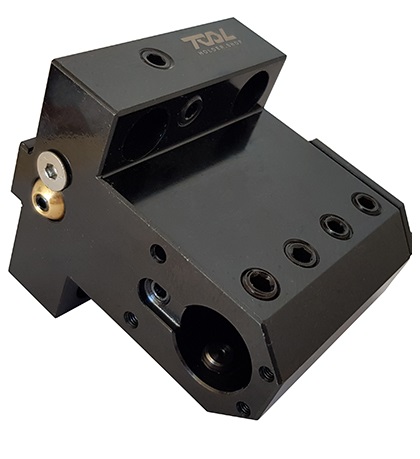

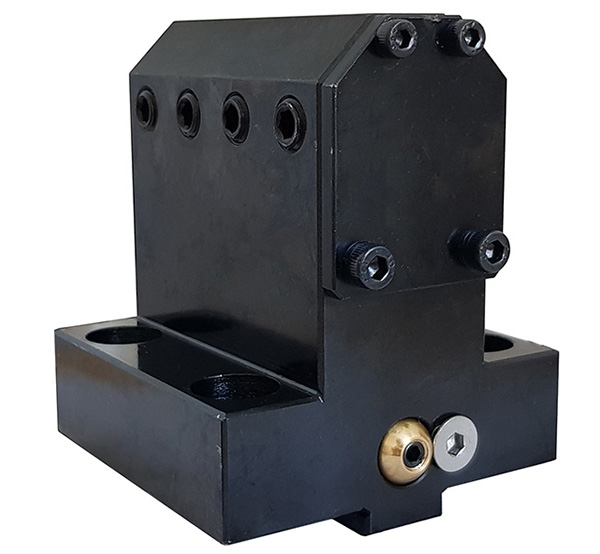

BMT BOLT PATTERN 69x71 BORING BAR HOLDER ID=25 mm L=75 mm EXT CLNT FOR NAKAMURA WY250L
THS006781
Compatible lathes
- NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809,
- NAKAMURA SC-300L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, BEVEL GEAR,
- NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
$ USD
56500
56500

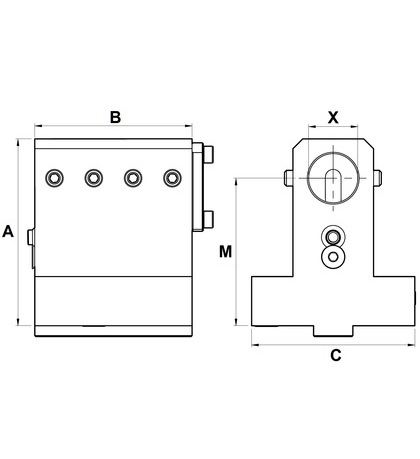

| SKU | X | A | B | C | M | Coolant supply | NAKAMURA LATHE |
| THS006778 | Ø 25 | 95 | 85 | 83 | 75 | external and internal |
NAKAMURA WT-150 |
| THS010543 | Ø 25 | 77.5 | 62 | 79 | 60 | NAKAMURA TW-8 NAKAMURA WT-100 |
|
| THS006779 | Ø 25 | 93.5 | 62 | 79 | 75 | NAKAMURA NTJ-100 NAKAMURA WT-100 |
|
| THS006780 | Ø 25 | 111.5 | 62 | 79 | 92.5 | ||
| THS006781 | Ø 25 | 102 | 90 | 90 | 75 | external only |
NAKAMURA SUPERMILL WT-150 NAKAMURA SUPERMILL WY-250L |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS000055 BMT BOLT PATTERN 50x60 BORING BAR HOLDER ID=( 1)" L=75 mm INT COOLANT FOR NAKAMURA WT150 | ||||||
| STRIGHT | ( 1)" | 75 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT |
| THS001683 BMT BOLT PATTERN 50x60 BORING BAR HOLDER ID=32 mm L=75 mm INTERNAL CLNT FOR NAKAMURA WT150 | ||||||
| STRIGHT | 32 mm | 75 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT |
| THS006778 BMT BOLT PATTERN 50x60 BORING BAR HOLDER ID=25 mm INT EXT COOLANT FOR NAKAMURA WT150 | ||||||
| STRIGHT | 25 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT | |
| THS006779 BMT44 BOLT PATTERN 40x55 BORING BAR HOLDER ID=25 mm L=75 mm INT CLNT FOR NAKAMURA NTJ100 | ||||||
| STRIGHT | 25 mm | 75 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT |
| THS006780 BMT44 BOLT PATTERN 40x55 BORING BAR HOLDER ID=25 mm L=92.5 INT COOLANT FOR NAKAMURA WT100 | ||||||
| STRIGHT | 25 mm | 400 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT |
| THS006781 BMT BOLT PATTERN 69x71 BORING BAR HOLDER ID=25 mm L=75 mm EXT CLNT FOR NAKAMURA WY250L | ||||||
| STRIGHT | 25 mm | 75 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS010543 BMT BOLT PATTERN 40x55 BORING BAR HOLDER ID=25 mm FOR NAKAMURA WT100 TW8 INT-EXT COOLANT | ||||||
| STRIGHT | 25 mm |
STATIC STATIC |
STRIGHT | INTERNAL COOLANT THROUGH | STRIGHT | |
Updated 202305
Tool holder machine interface: RADIAL (STAR TYPE) turret, NAKAMURA WT300-65, STATIC, ANY
COMPATIBLE LATHES
NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, ; NAKAMURA SC-300L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, BEVEL GEAR, ; NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS;
