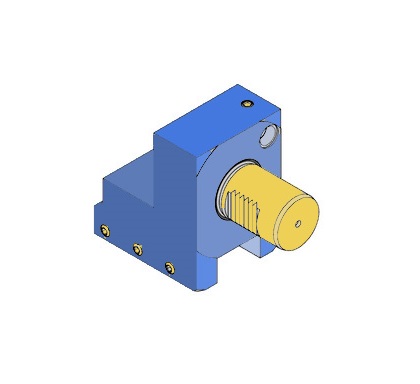

VDI40 AXIAL TURNING HOLDER H=20 mm L=65 mm FOR MORI NZ1500 NZ2000
THS004266
Compatible lathes
- MORI SEIKI NZ-1500 TURRET VDI40 RADIAL TURRET RADIAL (STAR TYPE), MORI SEIKI NZ1500 MORI SEIKI NZ2000 VDI40 TURRET 40, DIN1809,
- MORI SEIKI NZ-2000 VDI40 TURRET RADIAL (STAR TYPE), MORI SEIKI NZ1500 MORI SEIKI NZ2000 VDI40 TURRET 40, DIN1809,
- MORI SEIKI NZ-1500T3Y3 VDI40 TURRET RADIAL (STAR TYPE), MORI SEIKI NZ1500 MORI SEIKI NZ2000 VDI40 TURRET 40, DIN1809, Y-AXIS
- MORI SEIKI NZ-2000T3Y3 VDI40 TURRET RADIAL (STAR TYPE), MORI SEIKI NZ1500 MORI SEIKI NZ2000 VDI40 TURRET 40, DIN1809, Y-AXIS
$ USD
30400
30400

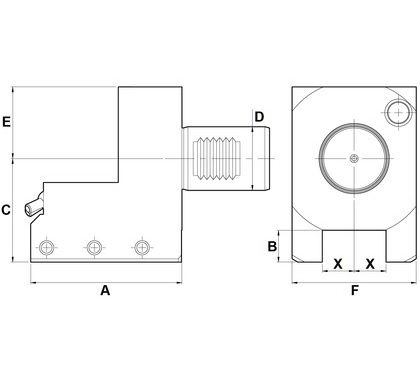

| SKU | D | A | B | C | E | F | X | MORI SEIKI LATHE |
| THS004266 | 40 | 95 | 20 | 65 | 45 | 78 | 20 | MORI SEIKI NZ1500 MORI SEIKI NZ2000 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004266 VDI40 AXIAL TURNING HOLDER H=20 mm L=65 mm FOR MORI NZ1500 NZ2000 | ||||||
| STRAIGHT | 20 mm | 65 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: RADIAL (STAR TYPE) turret, MORI SEIKI NZ1500 MORI SEIKI NZ2000 VDI40 TURRET-40, STATIC, ANY
COMPATIBLE LATHES
MORI SEIKI NZ-1500 TURRET VDI40 RADIAL TURRET RADIAL (STAR TYPE), MORI SEIKI NZ1500 MORI SEIKI NZ2000 VDI40 TURRET 40, DIN1809, ; MORI SEIKI NZ-2000 VDI40 TURRET RADIAL (STAR TYPE), MORI SEIKI NZ1500 MORI SEIKI NZ2000 VDI40 TURRET 40, DIN1809, ; MORI SEIKI NZ-1500T3Y3 VDI40 TURRET RADIAL (STAR TYPE), MORI SEIKI NZ1500 MORI SEIKI NZ2000 VDI40 TURRET 40, DIN1809, Y-AXIS; MORI SEIKI NZ-2000T3Y3 VDI40 TURRET RADIAL (STAR TYPE), MORI SEIKI NZ1500 MORI SEIKI NZ2000 VDI40 TURRET 40, DIN1809, Y-AXIS;
