DIRECTION CAPACITY PROJECTION ROTATION HAND COOLANT OFFSET

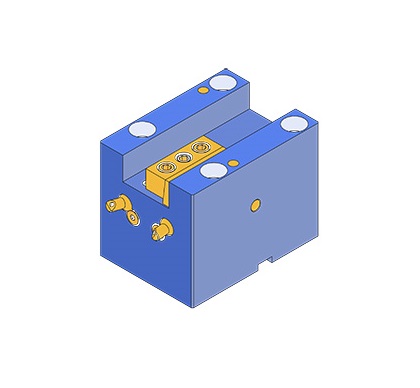

THS000636 BMT40 BOLT PATTERN 62x70 FACING HOLDER H=( 1)" L=85 mm FOR MORI NZ2000 NZ1500
STRAIGHT ( 1)" 85 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS004275 BMT40 BOLT PATTERN 62x70 FACING HOLDER H=25 mm L=85 mm FOR MORI NZ2000 NZ1500
STRAIGHT 25 mm 85 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS007005 BMT40 BOLT PATTERN 62x70 FACING HOLDER H=20 mm L=85 mm FOR MORI SEIKI NZ1500 NZ2000
STRAIGHT 20 mm 85 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT

Updated 202411

Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-BOLT PATTERN 62x70 MORI SEIKI BMT40 MORI SEIKI NZ 2000, STATIC, ANY
