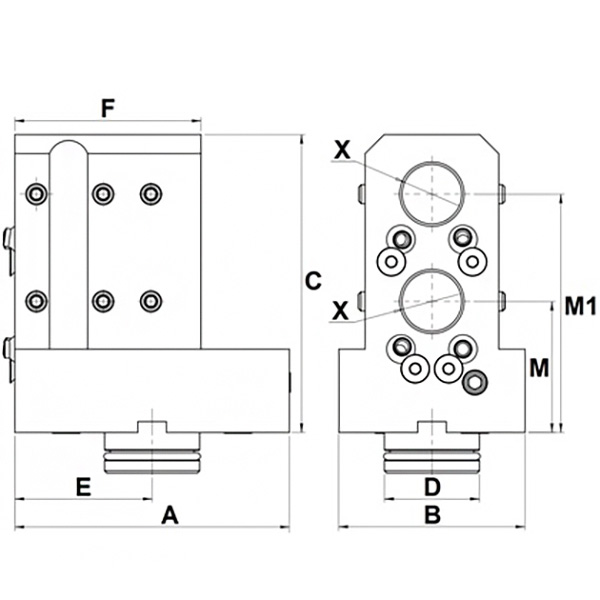

SKU D A B C E F M M1 X MORI SEIKI
THS003815 39.9 115 78 125 57.5 78 55 100 25 MORI SEIKI NZ1500
MORI SEIKI NZ2000
THS005805 1"

DIRECTION CAPACITY PROJECTION ROTATION HAND COOLANT OFFSET
THS003815 BMT40 BOLT PATTERN 62x70 BORING BAR HOLDER ID=25 mmx2 L=100 mm INT CLNT MORI NZ2000 NZ1500
STRAIGHT 25 mm 100 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT

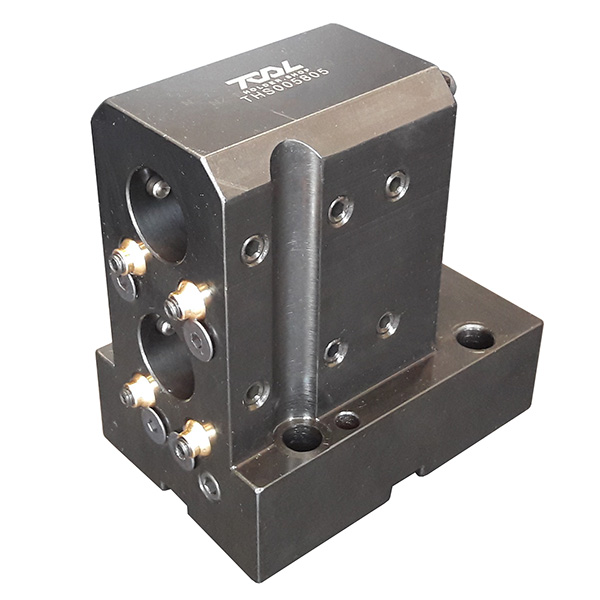

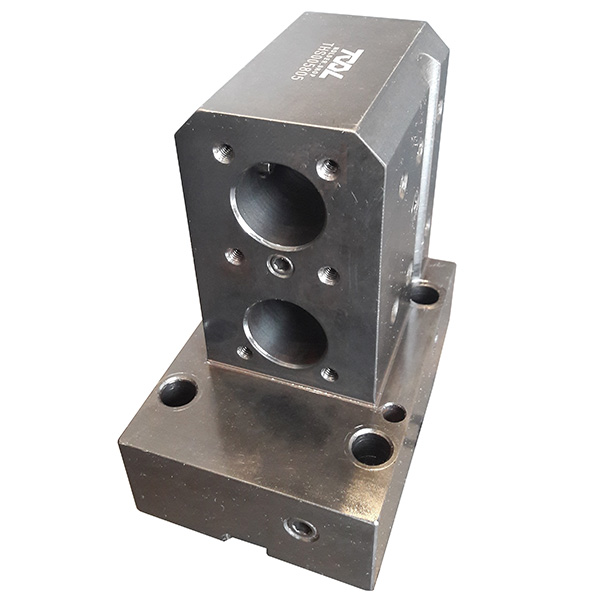

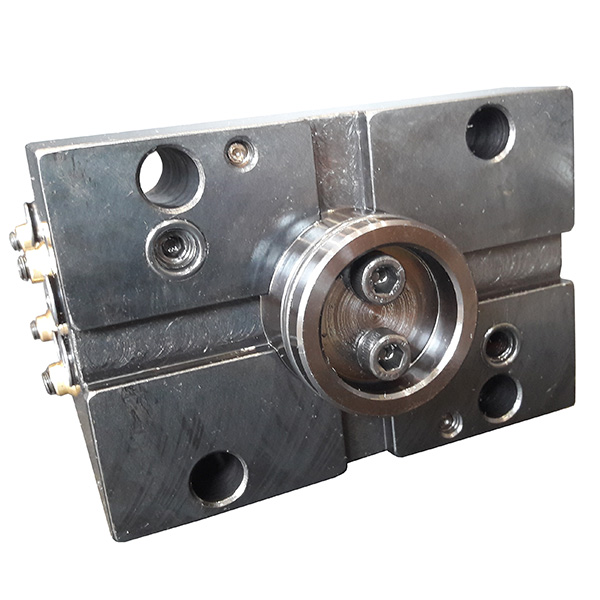

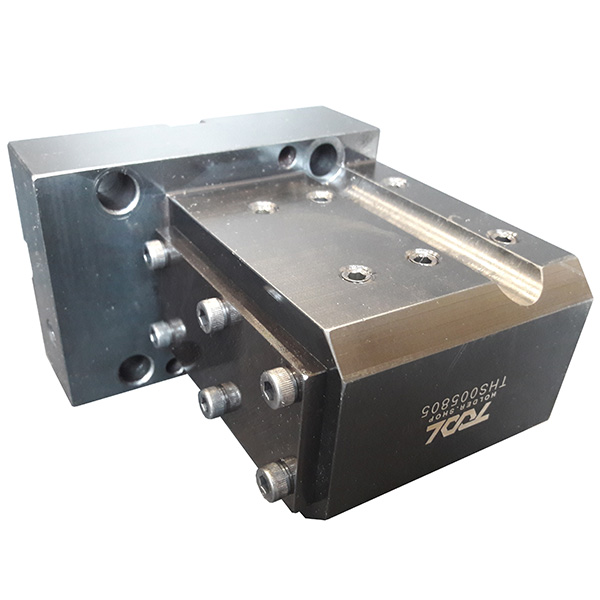

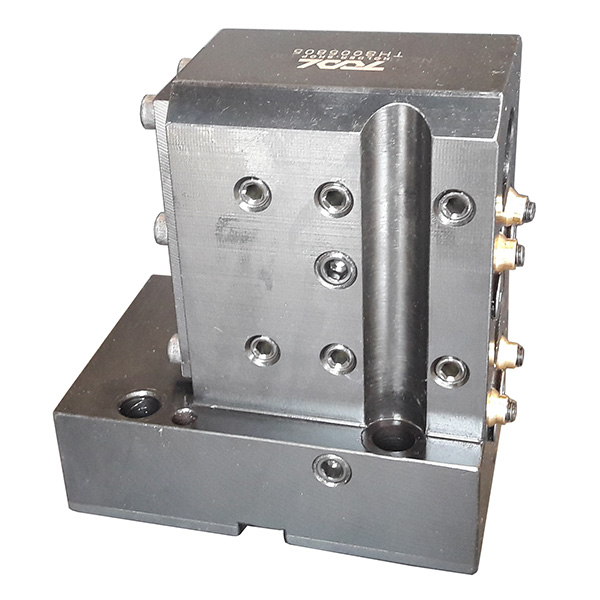

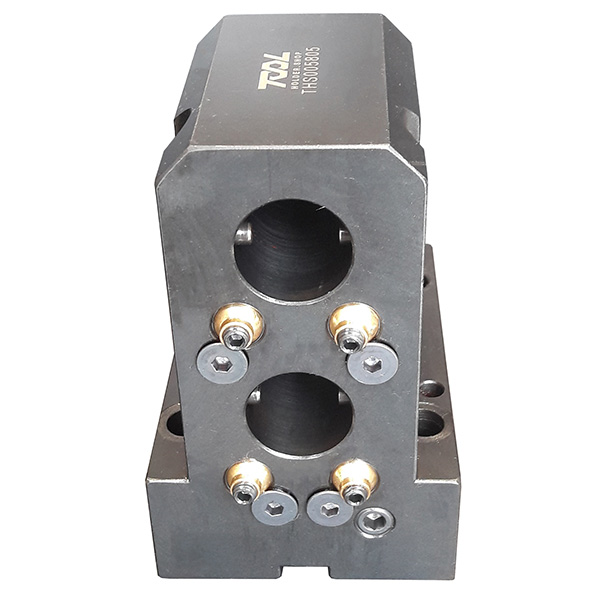

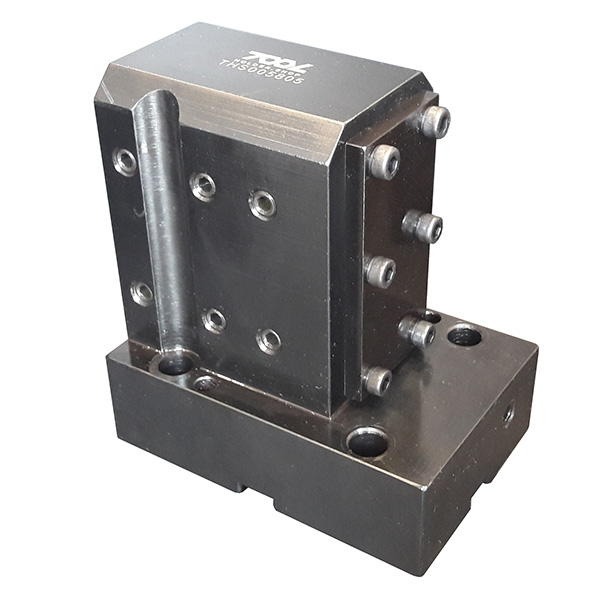

THS005805 BMT40 BOLT PATTERN 62x70 BORING BAR HOLDER ID=( 1)"x2 L=100 mm INT CLNT MORI NZ2000 NZ1500
STRAIGHT ( 1)" 100 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS017243 BMT40 BOLT PATTERN 62x70 DOUBLE BORING BAR HOLDER 2xID=( 1)" L=108 mm MORI NZ2000 NZ1500
STRAIGHT ( 1)" 108 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS017244 BMT40 BOLT PATTERN 62x70 DOUBLE BORING BAR HOLDER 2xID=20 mm L=108 mm MORI NZ2000 NZ1500
STRAIGHT 20 mm 108 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS017253 BMT40 BOLT PATTERN 62x70 DOUBLE BORING BAR HOLDER ID=( 1- 1/ 4)" ID=( 1)" L=100 NZ1500
STRAIGHT ( 1- 1/ 4)" 100 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS017360 BMT40 BOLT PATTERN 62x70 DOUBLE BORING BAR HOLDER 2xID=( 3/ 4)" L=108mm MORI NZ2000 NZ1500
STRAIGHT ( 3/ 4)" 108 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT

Updated 202406

COMPATIBLE LATHES
