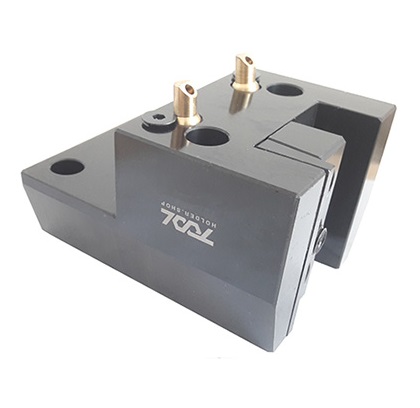

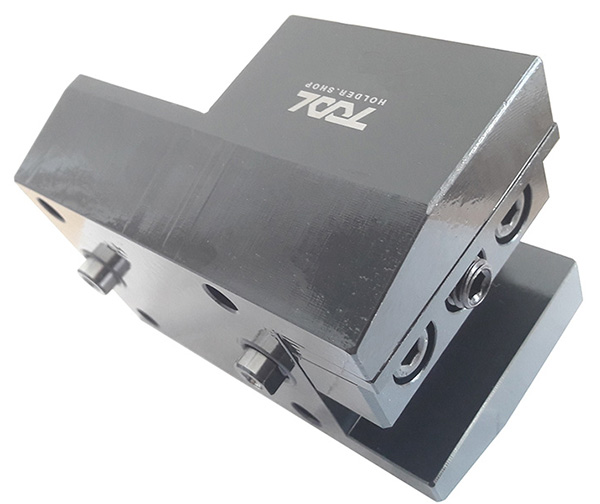

BMT BOLT PATTERN 56x68 TURNING HOLDER H=25 mm L=70 mm FOR MIYANO ABX BNJ
THS000045
Compatible lathes
- MIYANO BNJ-42S DIA.45 TURRET
- MIYANO LZ-02R2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO BNE-46S TURRET ANY, MIYANO ABX BNE BNJ 38, BEVEL GEAR, ANY
- MIYANO LZ-01R2 TURRET
- MIYANO ABX-51THY TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNE-51S DIA.45 FROM MAY 2007 TURRET ANY, MIYANO ABX BNE BNJ 45, BEVEL GEAR, ANY
- MIYANO BNJ-51 BMT45 FROM MAY 2007 TURRET ANY, MIYANO ABX BNE BNJ BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC, ANY
- MIYANO ABX-51SY RADIAL TURRET TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64TH2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64SY TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- POLYGIM DIAMOND-52 DOUBLE-SPINDLE SINGLE-TURRET TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- GOODWAY GLS-150M TURRET BMT45 TURRET
- MIYANO BNJ-51SY3 DIA.45 TURRET
- MIYANO BNJ-42SY3 DIA.45 TURRET
- MIYANO BNJ-42SY2 DIA.45 TURRET
- MIYANO ABX TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC,
- MIYANO BNJ-51SY2 DIA.45 TURRET
- MIYANO BND-51SY2 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- POLYGIM DIAMOND-60 DOUBLE-SPINDLE SINGLE-TURRET BMT45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO BNE-51SY5 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64SY2 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNE-42S6 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO ABX-51TH3 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BND-34SY5 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64TH3 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-51SY2 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34SY2 DIA.45 TURRET
- MIYANO BNE-51S5 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO BNE-42SY6 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34S2 DIA.45 TURRET
- MIYANO BND-34S5 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO BND-51S2 DIA.45 TURRET
- MIYANO BNJ-51S2 DIA.45 TURRET
- MIYANO BNJ-42S3 DIA.45 TURRET
- MIYANO BNE-51SY6 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34SY3 DIA.45 TURRET
- MIYANO BNJ-42S2 DIA.45 TURRET
- MIYANO BNJ-51S3 DIA.45 TURRET
- MIYANO BNE-51S6 DIA.45 TURRET
- MIYANO BNJ-34S3 DIA.45 TURRET
- MIYANO BND-51C2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO BNJ-34S DIA.45 TURRET
- MIYANO BNE-34S3 DIA.45 TURRET
- MIYANO LZ-02RY2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34SY DIA.45 TURRET
- MIYANO LZ-01RY2 TURRET
- MIYANO BNJ-42SY DIA.45 TURRET
- MIYANO ABX-51TH2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BND-51SY TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64TH TURRET BMT45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO BND-51S TURRET BMT45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO ABX-51TH TURRET BMT45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO BNJ-42SY6 TURRET BMT45 TURRET
- MIYANO BNJ-51SY6 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BND-51S TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO BNE-34S DIA.45 TURRET
- MIYANO BNE-34S2 TURRET
- MIYANO BND-34TR TURRET
- MIYANO LZ-01R TURRET
- MIYANO LZ-02R TURRET
- MIYANO BNX-51MY TURRET ANY, MIYANO ABX BNE BNJ BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC, Y-AXIS
- MIYANO BNX-51MSY TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO LE-22B TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC, ANY
- MIYANO LE-12B TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC, ANY
$ USD
61200
61200

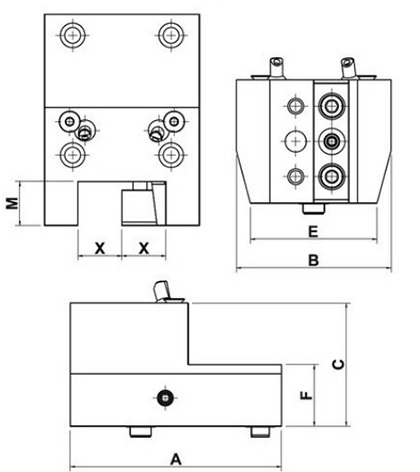

| SKU | X | A | B | C | E | F | M | MIYANO LATHE |
| THS000044 | 20 | 115 | 76 | 60 | 72 | 25 | 20 | MIYANO ABX MIYANO BND MIYANO BNE MIYANO BNJ MIYANO LZ GOODWAY GLS1500M 12 STATION GOODWAY GLS150M 12 STATION |
| THS000045 | 25 | 120 | 88 | 70 | 72 | 35 | 25 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS000044 BMT BOLT PATTERN 56x68 TURNING HOLDER H=20 mm L=60 mm ABX MIYANO BNJ | ||||||
| STRAIGHT | 20 mm | 60 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS000045 BMT BOLT PATTERN 56x68 TURNING HOLDER H=25 mm L=70 mm FOR MIYANO ABX BNJ | ||||||
| STRAIGHT | 25 mm | 70 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202507.03
Tool holder machine interface: RADIAL (STAR TYPE) turret, MIYANO ABX BNE BNJ-BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC, ANY
