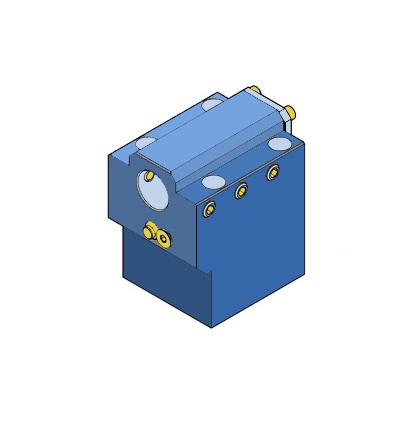

BMT BOLT PATTERN 56x68 BORING BAR HOLDER ID=25 mm L=85 mm INT EXT CLNT FOR ABX BND BNE BNJ
THS004675
Compatible lathes
- MIYANO BNJ-42S DIA.45 TURRET
- MIYANO LZ-02R2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO BNE-46S TURRET ANY, MIYANO ABX BNE BNJ 38, BEVEL GEAR, ANY
- MIYANO LZ-01R2 TURRET
- MIYANO ABX-51THY TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNE-51S DIA.45 FROM MAY 2007 TURRET ANY, MIYANO ABX BNE BNJ 45, BEVEL GEAR, ANY
- MIYANO BNJ-51 BMT45 FROM MAY 2007 TURRET ANY, MIYANO ABX BNE BNJ BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC, ANY
- MIYANO ABX-51SY RADIAL TURRET TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64TH2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64SY TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- POLYGIM DIAMOND-52 DOUBLE-SPINDLE SINGLE-TURRET TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- GOODWAY GLS-150M TURRET BMT45 TURRET
- MIYANO BNJ-51SY3 DIA.45 TURRET
- MIYANO BNJ-42SY3 DIA.45 TURRET
- MIYANO BNJ-42SY2 DIA.45 TURRET
- MIYANO ABX TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC,
- MIYANO BNJ-51SY2 DIA.45 TURRET
- MIYANO BND-51SY2 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- POLYGIM DIAMOND-60 DOUBLE-SPINDLE SINGLE-TURRET BMT45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO BNE-51SY5 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64SY2 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNE-42S6 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO ABX-51TH3 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BND-34SY5 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64TH3 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-51SY2 DIA.45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34SY2 DIA.45 TURRET
- MIYANO BNE-51S5 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO BNE-42SY6 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34S2 DIA.45 TURRET
- MIYANO BND-34S5 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO BND-51S2 DIA.45 TURRET
- MIYANO BNJ-51S2 DIA.45 TURRET
- MIYANO BNJ-42S3 DIA.45 TURRET
- MIYANO BNE-51SY6 DIA.45 TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34SY3 DIA.45 TURRET
- MIYANO BNJ-42S2 DIA.45 TURRET
- MIYANO BNJ-51S3 DIA.45 TURRET
- MIYANO BNE-51S6 DIA.45 TURRET
- MIYANO BNJ-34S3 DIA.45 TURRET
- MIYANO BND-51C2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO BNJ-34S DIA.45 TURRET
- MIYANO BNE-34S3 DIA.45 TURRET
- MIYANO LZ-02RY2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BNJ-34SY DIA.45 TURRET
- MIYANO LZ-01RY2 TURRET
- MIYANO BNJ-42SY DIA.45 TURRET
- MIYANO ABX-51TH2 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BND-51SY TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO ABX-64TH TURRET BMT45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO BND-51S TURRET BMT45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO ABX-51TH TURRET BMT45 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809,
- MIYANO BNJ-42SY6 TURRET BMT45 TURRET
- MIYANO BNJ-51SY6 TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO BND-51S TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, ANY
- MIYANO BNE-34S DIA.45 TURRET
- MIYANO BNE-34S2 TURRET
- MIYANO BND-34TR TURRET
- MIYANO LZ-01R TURRET
- MIYANO LZ-02R TURRET
- MIYANO BNX-51MY TURRET ANY, MIYANO ABX BNE BNJ BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC, Y-AXIS
- MIYANO BNX-51MSY TURRET ANY, MIYANO ABX BNE BNJ 45, DIN1809, Y-AXIS
- MIYANO LE-22B TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC, ANY
- MIYANO LE-12B TURRET RADIAL (STAR TYPE), MIYANO ABX BNE BNJ BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC, ANY
$ USD
66000
66000
| SKU | X | A | B | C | M | Coolant Supply | MIYANO LATHE |
| THS005818 | 25 | 88 | 72 | 105 | 85 | external only | MIYANO ABX MIYANO BND MIYANO BNE MIYANO BNJ MIYANO LZ |
| BNE-B25-85-A | internal only | ||||||
| THS004675 | external and internal |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004675 BMT BOLT PATTERN 56x68 BORING BAR HOLDER ID=25 mm L=85 mm INT EXT CLNT FOR ABX BND BNE BNJ | ||||||
| STRAIGHT | 25 mm | 85 mm |
STATIC STATIC |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS005818 BMT BOLT PATTERN 56x68 BORING BAR HOLDER ID=25 mm L=85 mm EXT CLNT FOR ABX BND BNE BNJ LZ | ||||||
| STRAIGHT | 25 mm | 85 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS017183 BMT BOLT PATTERN 56x68 BORING BAR HOLDER ID=( 1- 1/ 2)" L=85 mm INT CLNT FOR MIYANO BND | ||||||
| STRAIGHT | ( 1- 1/ 2)" | 85 mm |
STATIC STATIC |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
Updated 202507.03
Tool holder machine interface: RADIAL (STAR TYPE) turret, MIYANO ABX BNE BNJ-BOLT PATTERN 56x68 MYIANO ABX LZ02, STATIC, ANY
