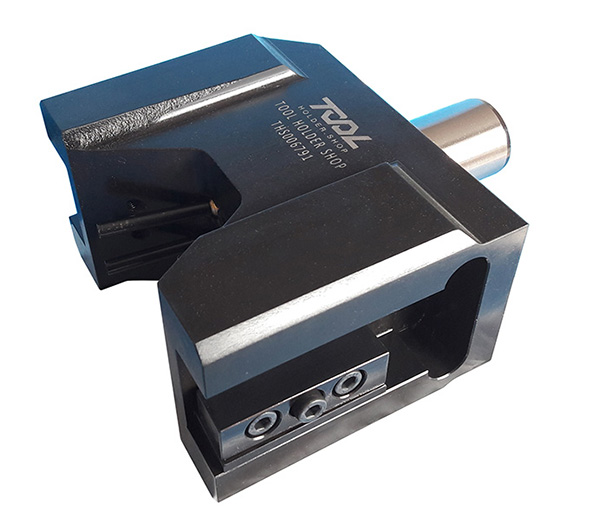

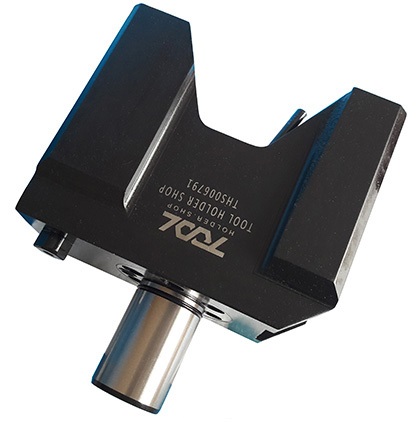

VDI40 TURNING HOLDER DOUBLE 2x H=20 mm L=85 mm MAZAK QTN100M QTN150M MAZAK SQT10M SQT15AM
THS013633
Compatible lathes
- MAZAK SUPER QUICK TURN SQT-10MS-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK QUICK TURN NEXUS QTN-100II-M TURRET RADIAL DIA.40 TURRET
- MAZAK SUPER QUICK TURN SQT-10M TURRET RADIAL 12 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK SUPER QUICK TURN SQT-15MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK SUPER QUICK TURN SQT-200MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK SUPER QUICK TURN SQT-15M TURRET RADIAL 16 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK SUPER QUICK TURN SQT-200M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK SUPER QUICK TURN SQT-250M TURRET RADIAL 16 TOOLS VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK MEGATURN SMART 500S TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ANY
- MAZAK QUICK TURN NEXUS QTN-150M TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK SUPER QUICK TURN SQT-15AM DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, STATIC, ANY
- MAZAK QUICK TURN NEXUS QTN-100M TURRET RADIAL 12 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK SUPER QUICK TURN SQT-250MS-16D RADIAL TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK QUICK TURN NEXUS QTN-200M TURRET RADIAL 16 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK SUPER QUICK TURN SQT-18M TURRET RADIAL 16 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ANY
- MAZAK QUICK TURN QT-250MY TURRET RADIAL 16 TOOL VDI40 TURRET ANY, MAZAK VDI 40, STATIC,
- MAZAK QUICK TURN QT-250MS TURRET RADIAL 16 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
- MAZAK QUICK TURN QT-250MSY TURRET RADIAL 16 TOOL VDI40 TURRET ANY, MAZAK VDI 40, STATIC,
- MAZAK QUICK TURN QT-250M TURRET RADIAL 16 TOOL VDI40 TURRET RADIAL (STAR TYPE), MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68 40, MAZAK FLAT SHORT MAZAK SQT10 *TO BE REVISED*,
$ USD
138600
138600

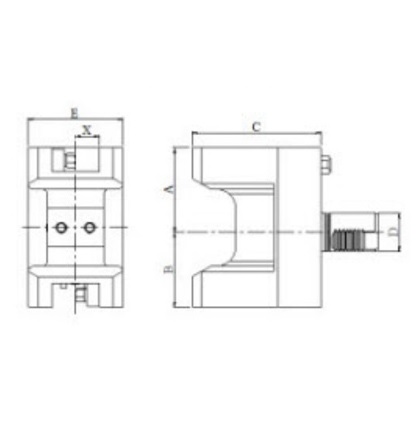

| SKU | D | UNITS | X | A | B | C | E | MAZAK LATHE |
| THS013633 | 40 | mm | 20 | 85 | 65 | 103 | 81 | MAZAK QTN 100M MAZAK QTN 150M MAZAK SQT 10M MAZAK SQT 15AM |
| THS013634 | inch | 0.75" | 3.347" | 2.559" | 4.055" | 3.189" | ||
| THS006792 | 40 | mm | 25 | 88 | 78 | 136 | 100 | MAZAK QTN 200M MAZAK QTN 250M MAZAK SQT 15M MAZAK SQT 18M |
| THS006791 | inch | 1" | 3.465" | 3.071" | 5.354" | 3.937" | ||
| THS006974 | 50 | mm | 25 | 128 | 80 | 150 | 100 | MAZAK SQT 28M MAZAK SQT 30M |
| THS006973 OEM EWS 15.5025.4SQT28 |
inch | 1" | 5.039" | 3.150" | 5.906" | 3.937" |
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS006791 VDI40 TURNING HOLDER DOUBLE 2xH=( 1)" L=88 mm FOR MAZAK QTN200M QTN250M MAZAK SQT15 SQT18M | ||||||
| STRAIGHT | ( 1)" | 88 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS006792 VDI40 TURNING HOLDER DOUBLE 2xH=25 mm L=88 mm FOR MAZAK QTN200M QTN250M MAZAK SQT15 SQT18M | ||||||
| STRAIGHT | 25 mm | 88 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS006973 VDI50 TURNING HOLDER DOUBLE 2xH=( 1)" L=128 mm FOR MAZAK SQT28 MAZAK SQT30 | ||||||
| STRAIGHT | ( 1)" | 128 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS006974 VDI50 TURNING HOLDER DOUBLE 2x H=25 mm L=128 mm FOR MAZAK SQT28 MAZAK SQT30 | ||||||
| STRAIGHT | 25 mm | 128 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS013633 VDI40 TURNING HOLDER DOUBLE 2x H=20 mm L=85 mm MAZAK QTN100M QTN150M MAZAK SQT10M SQT15AM | ||||||
| STRAIGHT | 20 mm | 85 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS013634 VDI40 TURNING HOLDER DOUBLE H=( 3/ 4)" L=85 mm MAZAK QTN100M QTN150M MAZAK SQT10M SQT15AM | ||||||
| STRAIGHT | ( 3/ 4)" | 85 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202504.01
Tool holder machine interface: ANY turret, MAZAK VDI40 30DEG PIN16x68 OFFSET SQT10 12D 15 16 TOOLS 200 250 16T QTN100 QTN150 PIN68-40, STATIC, ANY
