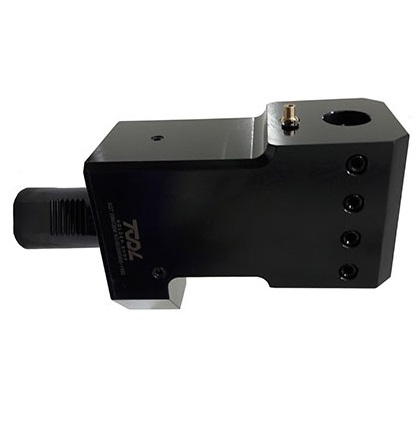

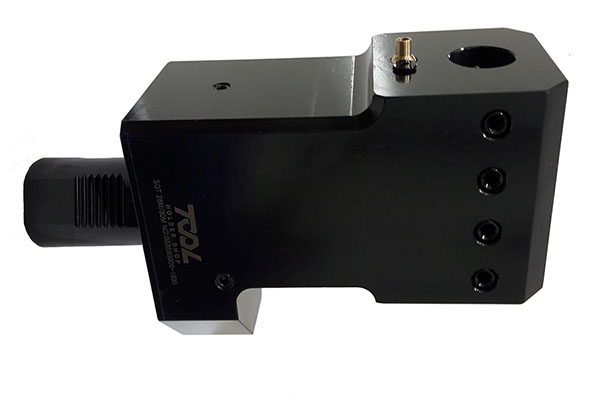

VDI40 RADIAL BORING BAR HOLDER ID=20 mm L=110 mm FOR MAZAK SQT100 SQT150 SQT10 SQT15A
THS004602
Compatible lathes
- MAZAK SUPER QUICK TURN SQT-10MS-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK QUICK TURN NEXUS QTNX-100II-M TURRET RADIAL DIA.40 TURRET
- MAZAK SUPER QUICK TURN SQT-10M-12D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-15MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-200MS-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-15M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-200M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-250M-16D TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-10M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK VDI 40, STATIC, ANY
- MAZAK QUICK TURN NEXUS QTN-150M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-15AM DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, STATIC, ANY
- MAZAK QUICK TURN NEXUS QTN-100M TURRET RADIAL DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),
- MAZAK SUPER QUICK TURN SQT-250MS-16D RADIAL TURRET DIA.40 TURRET RADIAL (STAR TYPE), MAZAK SQT10 12D MAZAK 15 16 TOOLS MAZAK 200 MAZAK 250 16T MAZAK QTN100 MAZAK QTN150 PIN68 40, MAZAK SQT10 (SHORT),

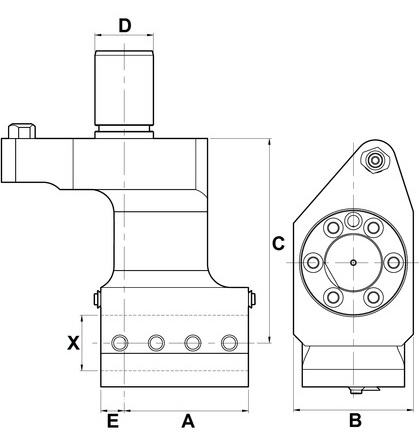

| SKU | Ø D | X | A | B | C | E | MAZAK LATHE |
| THS004602 | 40 | 20 | 60 | 76 | 110 | 10 | MAZAK QTN 100M MAZAK 150M MAZAK SQT 10M MAZAK 15AM |
| THS004601 | 3/4" | ||||||
| THS004610 | 40 | 25 | 85 | 84 | 140 | 15 | MAZAK QTN 200M MAZAK 250M MAZAK SQT 15M MAZAK 18M |
| THS004609 | 1" | ||||||
| THS004616 | 50 | 32 | 75 | 90 | 180 | 35 | MAZAK SQT 28M MAZAK 30M |
| THS004615 | 1-1/4" |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004601 VDI40 RADIAL BORING BAR HOLDER ID=(3/4)" L=110 mm FOR MAZAK SQT100 SQT150 SQT10 SQT15A | ||||||
| ANGLE 90 DEGREE | TAPER B12 | 110 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS004602 VDI40 RADIAL BORING BAR HOLDER ID=20 mm L=110 mm FOR MAZAK SQT100 SQT150 SQT10 SQT15A | ||||||
| ANGLE 90 DEGREE | 20 mm | 110 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS004609 VDI40 RADIAL BORING BAR HOLDER ID=(1)" L=140 mm FOR MAZAK QTN200 QTN250 SQT15 SQT18 | ||||||
| ANGLE 90 DEGREE | TAPER B12 | 140 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS004610 VDI40 RADIAL BORING BAR HOLDER ID=25 mm L=140 mm FOR MAZAK QTN200 QTN250 SQT15 SQT18 | ||||||
| ANGLE 90 DEGREE | 25 mm | 140 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS004615 VDI50 RADIAL BORING BAR HOLDER ID=(1-1/4)" L=175 mm FOR MAZAK SQT28M SQT30M | ||||||
| ANGLE 90 DEGREE | TAPER B12 | 175 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
| THS004616 VDI50 RADIAL BORING BAR HOLDER ID=32 mm L=180 mm FOR MAZAK SQT28M SQT30M | ||||||
| ANGLE 90 DEGREE | 32 mm | 180 mm |
STATIC STATIC |
STRIGHT | EXTERNAL COOLANT | STRIGHT |
