$ USD USD 91500
SKU Bolt
Pattern

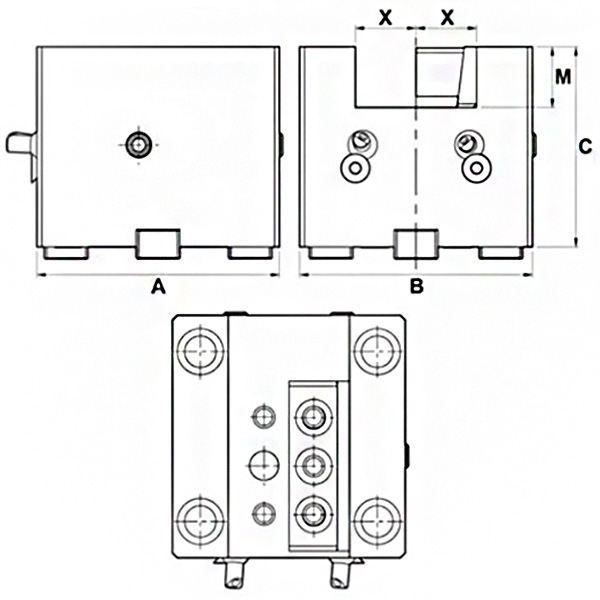

X A B C M
THS006069 BMT45 20 86 75 80 20
THS006068 3/4" 3/4"
THS006563 BMT55 20 95 86 70 20
THS007159 3/4" 3/4"
THS006564 25 95 92 60 25
THS006562 1" 1"
THS007160 1" 95 92 70 1"
THS007161 25 95 92 80 25
THS007162 25 90 90 108 25
THS006590 BMT65 25 100 96 82.5 25
THS006588 1" 1"
THS007163 1" 100 96 105 1"
THS006589 25 100 94 120 25
THS006587 1" 1"
THS006164 BMT75 25 120 112 122 25
THS006033 1" 1"
THS006165 32 120 120 122 32
THS006166 1-1/4" 1-1/4"
THS006612 BMT85 32 168.5 124 107 32
THS006610 1-1/4" 1-1/4"
THS006613 32 168.5 124 138 32
THS006611 1-1/4" 1-1/4"
.
DIRECTION CAPACITY PROJECTION ROTATION HAND COOLANT OFFSET
THS006033 BMT75 BOLT PATTERN 90x90 FACING HOLDER H=( 1)" L=122 mm FOR DAEWOO
STRAIGHT ( 1)" 122 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006068 BMT45 BOLT PATTERN 58x58 FACING HOLDER H=( 3/ 4)" L=80 mm FOR DAEWOO
STRAIGHT ( 3/ 4)" 80 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006069 BMT45 BOLT PATTERN 58x58 FACING HOLDER H=20 mm L=80 mm FOR DAEWOO
STRAIGHT 20 mm 80 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006164 BMT75 BOLT PATTERN 90x90 FACING HOLDER H=25 mm L=122 mm FOR DAEWOO
STRAIGHT 25 mm 122 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006165 BMT75 BOLT PATTERN 90x90 FACING HOLDER H=32 mm L=122 mm FOR DAEWOO
STRAIGHT 32 mm 122 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006166 BMT75 BOLT PATTERN 90x90 FACING HOLDER H=( 1- 1/ 4)" L=122 mm FOR DAEWOO
STRAIGHT ( 1- 1/ 4)" 122 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006562 BMT55 BOLT PATTERN 64x64 FACING HOLDER H=( 1)" L=60 mm FOR DAEWOO
STRAIGHT ( 1)" 60 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006563 BMT55 BOLT PATTERN 64x64 FACING HOLDER H=20 mm L=70 mm FOR DAEWOO
STRAIGHT 20 mm 70 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006564 BMT55 BOLT PATTERN 64x64 FACING HOLDER H=25 mm L=60 mm FOR DAEWOO
STRAIGHT 25 mm 60 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006587 BMT65 BOLT PATTERN 70x73 FACING HOLDER H=( 1)" L=120 mm FOR DAEWOO
STRAIGHT ( 1)" 120 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006588 BMT65 BOLT PATTERN 70x73 FACING HOLDER H=( 1)" L=83 mm FOR DAEWOO
STRAIGHT ( 1)" 83 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006589 BMT65 BOLT PATTERN 70x73 FACING HOLDER H=25 mm L=120 mm FOR DAEWOO
STRAIGHT 25 mm 120 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006590 BMT65 BOLT PATTERN 70x73 FACING HOLDER H=25 mm L=83 mm FOR DAEWOO
STRAIGHT 25 mm 83 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006610 BMT85 BOLT PATTERN 100x100 FACING HOLDER H=( 1- 1/ 4)" L=107 mm FOR DAEWOO
STRAIGHT ( 1- 1/ 4)" 107 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT

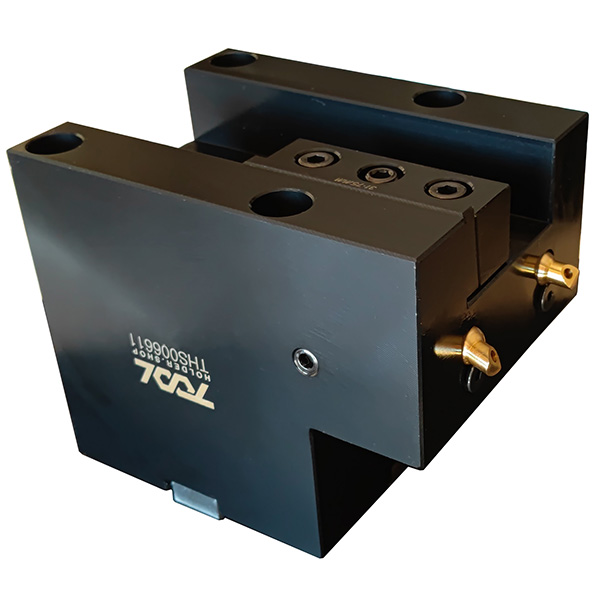

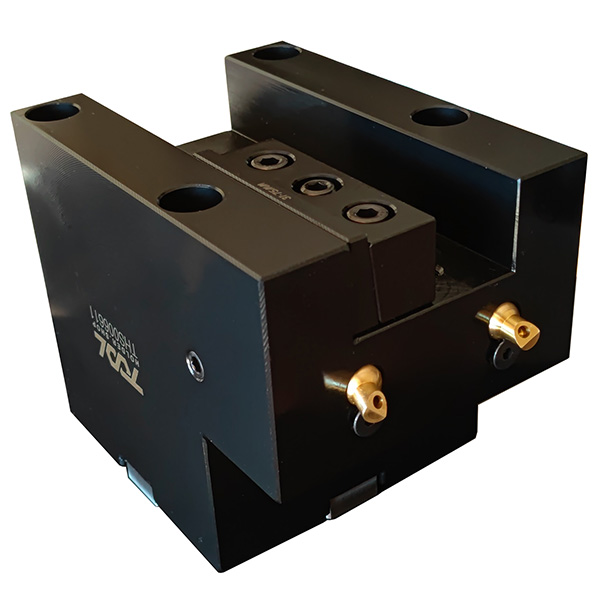

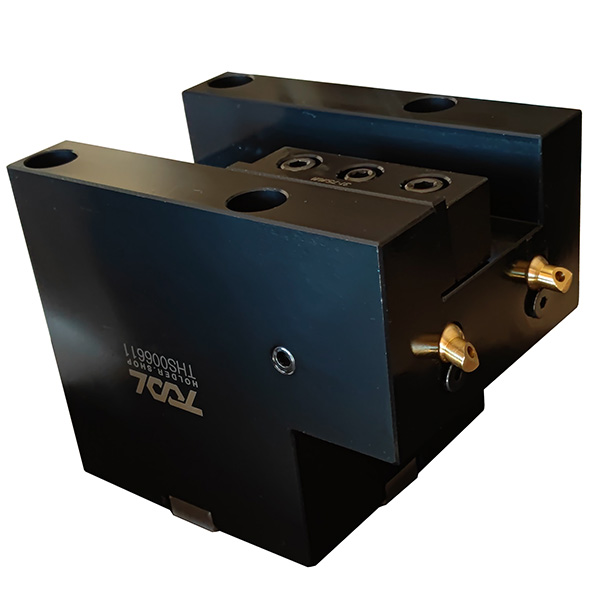

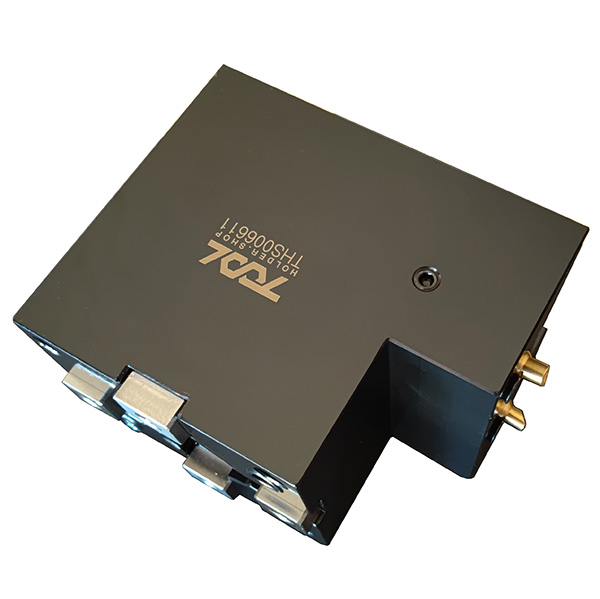

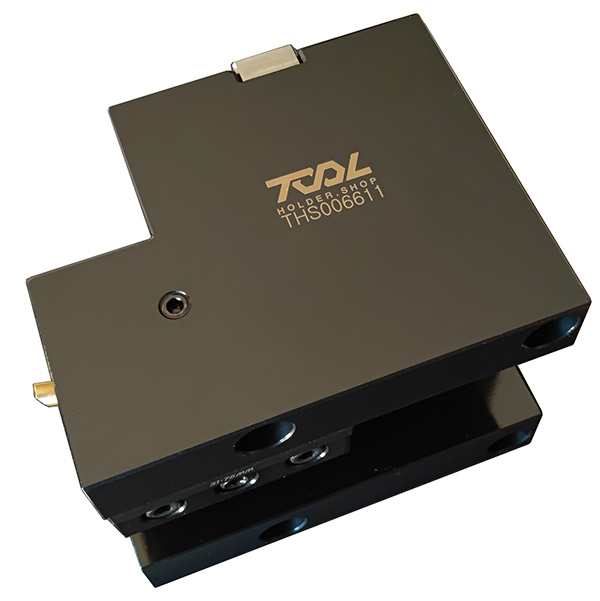

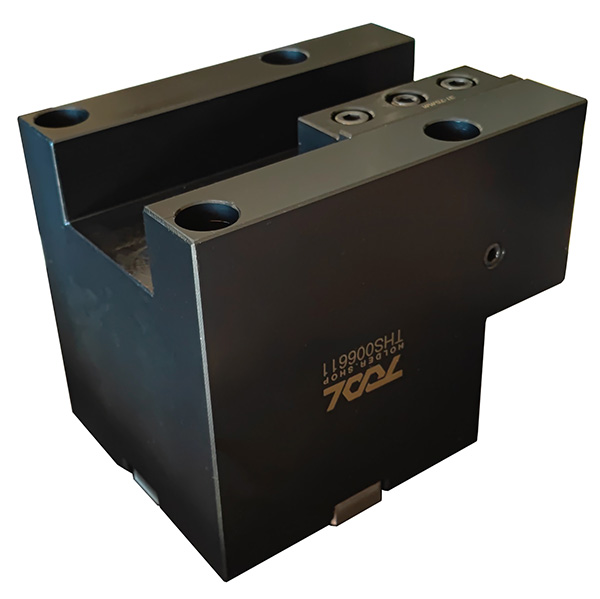

THS006611 BMT85 BOLT PATTERN 100x100 FACING HOLDER H=( 1- 1/ 4)" L=138 mm FOR DAEWOO
STRAIGHT ( 1- 1/ 4)" 138 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006612 BMT85 BOLT PATTERN 100x100 FACING HOLDER H=32 mm L=107 mm FOR DAEWOO
STRAIGHT 32 mm 107 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006613 BMT85 BOLT PATTERN 100x100 FACING HOLDER H=32 mm L=138 mm FOR DAEWOO
STRAIGHT 32 mm 138 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS007159 BMT55 BOLT PATTERN 64x64 FACING HOLDER H=( 3/ 4)" L=70 mm FOR DAEWOO
STRAIGHT ( 3/ 4)" 70 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS007160 BMT55 BOLT PATTERN 64x64 FACING HOLDER H=( 1)" L=70 mm FOR DAEWOO
STRAIGHT ( 1)" 70 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS007161 BMT55 BOLT PATTERN 64x64 FACING HOLDER H=25 mm L=80 mm FOR DAEWOO
STRAIGHT 25 mm 80 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS007162 BMT55 BOLT PATTERN 64x64 FACING HOLDER H=25 mm L=108 mm FOR DAEWOO
STRAIGHT 25 mm 108 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS007163 BMT65 BOLT PATTERN 70x73 FACING HOLDER H=( 1)" L=105 mm FOR DAEWOO
STRAIGHT ( 1)" 105 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS013824 BMT75 BOLT PATTERN 90x90 FACING HOLDER H=( 1- 1/ 4)" L=122 mm FOR DAEWOO
STRAIGHT ( 1- 1/ 4)" 122 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS016513 BMT55 BOLT PATTERN 64x64 FACING HOLDER H=20 mm L= 90 mm FOR DAEWOO
STRAIGHT 20 mm 90 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS017209 BMT55 BOLT PATTERN 64x64 FACING HOLDER H=( 3/ 4)" L= 90 mm FOR DAEWOO
STRAIGHT ( 3/ 4)" 90 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS017856 BMT75 BOLT PATTERN 90x90 FACING HOLDER H=( 1- 1/ 4)" L= 70 mm FOR DAEWOO
STRAIGHT ( 1- 1/ 4)" 70 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT

Updated 202405

COMPATIBLE LATHES

DAEWOO PUMA PA-350M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DAEWOO PUMA PA-350 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, STATIC, ;   DAEWOO PUMA-400M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DAEWOO PUMA-350 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 90x90 BMT75, STATIC, ANY;   DAEWOO PUMA PA-350LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI L-400MA TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HWACHEON HI-TECH-550 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE PUMA-400 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE PUMA-400LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE PUMA-400M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE PUMA-400XLM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE PUMA-480 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, STATIC, ;   DOOSAN INFRACORE PUMA-480LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE PUMA-480M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE PUMA-480XLM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE VT-750M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE VT-750-2SP TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE VT-750TM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI SKT-V80M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI L-400LMA TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI SKT-400LMC TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, STATIC, ;   HYUNDAI SKT-400M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI LV-500LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI LV-500RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   LEADWELL LTC-45D BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   NAKAMURA SC-450M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   ROMI G-550M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   SAMSUNG SL-45MC TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   SAMSUNG SL-V80M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   LEADWELL LTC-50M TURRET RADIAL EWS BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   LEADWELL LTC-60M TURRET EWS RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   LEADWELL LTC-60CXXLY BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   LEADWELL LTC-60CXLM TURRET EWS BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   LEADWELL LTC-35M TURRET EWS RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   LEADWELL LTC-45M BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   YOU JI YH-36+C-75 BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   NAKAMURA STS-40 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HWACHEON HI-TECH-550B TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 90x90 BMT75, STATIC, ;   HWACHEON HI-TECH-550MC TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HWACHEON VT-650M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HWACHEON VT-650RMC TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ANY;   APEX PT-25 12-TLS TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, STATIC, ;   JOHNFORD SL-80L TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-40A TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD SL-100L TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD SL-70L TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD SL-120L TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-70C TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-40B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-60A TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-70A TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-60C TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-60B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-40C TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-70B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-240B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-100B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-160B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-80B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-130B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   JOHNFORD ST-200B TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   SAMSUNG PL-45MC TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   TONGTAI THL-620M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   TONGTAI THL-620LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   TONGTAI THL-620LMX TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   KIA SUPER KIA TURN SKT-V5LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   KIA SUPER KIA TURN SKT-V80M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   KIA SUPER KIA TURN SKT-400M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DAEWOO PUMA-480LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   LEADWELL LTC-35MY TURRET EWS RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   LEADWELL LTC-50MY TURRET RADIAL DUPLOMATIC BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   LEADWELL LTC-60MY TURRET DUPLOMATIC RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   DAEWOO PUMA-480XLM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DAEWOO PUMA VT-750 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, STATIC, ;   DAEWOO PUMA-480M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DAEWOO PUMA VT-750TM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   WIA L-400MA TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI SKT-V80RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI SKT-V80LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   WIA LV-500RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   WIA LV-500LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   WIA LV-800RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   WIA LV-800LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN INFRACORE PUMA-5100LY TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   DUPLOMATIC DM-TR25 TURRET BMT75 DIN1809 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   ALEX-TECH VT-40 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DAEWOO PUMA-400LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DAEWOO PUMA V-550 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DMC DL-45M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DMC DL-55M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI LV-800RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI LV-800LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   WIA L-400LMA TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   NAKAMURA TW-30MMY 12-TLS TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   NAKAMURA TW-30M 12-TLS TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   NAKAMURA TW-30MM 12-TLS TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   NAKAMURA TMC-400M TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   NAKAMURA STW-400 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   NAKAMURA TW-30MY 12-TLS TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   NAKAMURA TW-30MMYY 12-TLS TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   MTRENT MTCUT T-36FLMC TURRET RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   MTRENT MTCUT T-36FMC TURRET RADIAL BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN PUMA-400C TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ANY;   HYUNDAI LV-450RM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   HYUNDAI LV-450LM TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   SAMSUNG SL-45BB TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   SAMSUNG SL-45LY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ;   DOOSAN PUMA-400MB TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 90x90 BMT75, STATIC, ;   LEADWELL LTC-35Y TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   LEADWELL LTC-35LY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   LEADWELL LTC-35XLY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   LEADWELL LTC-35XXLY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   LEADWELL LTC-35LVY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   SAMSUNG SL-45MC-2200BB Mill-Turn TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ANY;   SAMSUNG SL-4500CLM TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 90x90 BMT75, STATIC, ANY;   ALEX-TECH VT-36 BLMC 3000 TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 90x90 BMT75, STATIC, ANY;   HYUNDAI L-400LMC TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, ANY;   SMART NL-5000Y TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   SMART NL-5000LY TURRET RADIAL (STAR TYPE), BMT 75, DIN1809, Y-AXIS;   HYUNDAI KIA SKT-V5L TURRET BMT75 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 90x90 BMT75, STATIC, ;
