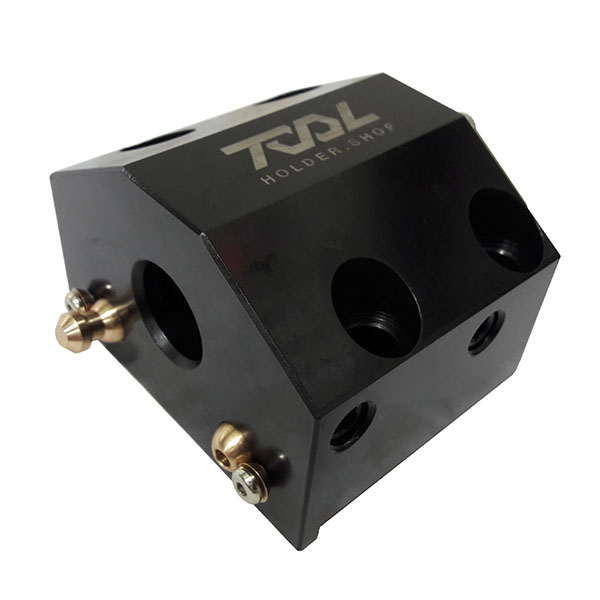

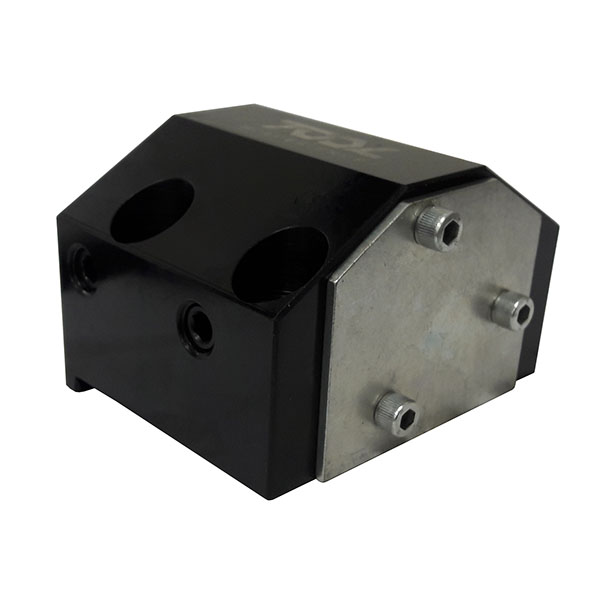

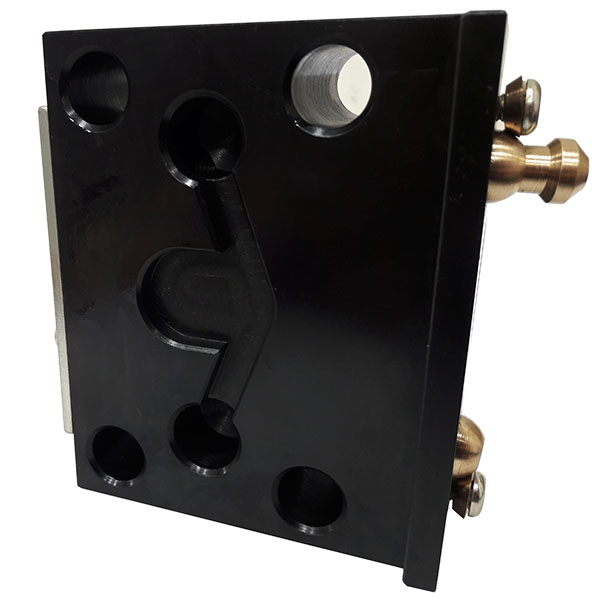

BMT BOLT PATTERN 45x80 BORING BAR HOLDER ID=( 1)" L=( 1- 1/ 4)" FOR HAAS SL20 SL30
THS003883
Compatible lathes
- HAAS SL-30 HYBRID-TURRET AXIAL HAAS VDI40 1-STEP-MEDIUM TURRET AXIAL, VDI 40, HAAS 117.55,
- HAAS TL-15 HYBRID-TURRET AXIAL HAAS VDI40 1-STEP-MEDIUM TURRET AXIAL, VDI 40, HAAS 117.55,
- HAAS TL-25 HYBRID-TURRET AXIAL HAAS VDI40 1-STEP-MEDIUM TURRET AXIAL, VDI 40, HAAS 117.55,
- HAAS SL-20 HYBRID-TURRET AXIAL HAAS VDI40 1-STEP-MEDIUM TURRET AXIAL, VDI 40, HAAS 117.55,
- OKUMA CAPTAIN L-370 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 45x80 HAAS ST20 SHL20/30, STATIC, ANY
- HAAS ST-20Y HYBRID VDI/BOT HAAS TURRET TURRET ANY, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-30 HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- HAAS ST-30Y HYBRID-TURRET AXIAL HAAS VDI40 TURRET AXIAL, VDI 40, HAAS-GEAR, Y-AXIS
- HAAS ST-30SS HYBRID-TURRET HAAS VDI40 TURRET ANY, VDI 40, HAAS-GEAR,
- OKUMA LNC-8 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 45x80 HAAS ST20 SHL20/30, STATIC,
- HAAS ST-31 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 45x80 HAAS ST20 SHL20/30, STATIC,
- HAAS SL-30TB TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 45x80 HAAS ST20 SHL20/30, STATIC, ANY
- HURCO TM-10 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 45x80 HAAS ST20 SHL20/30, STATIC,
- OKUMA ESL-10 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 45x80 HAAS ST20 SHL20/30, STATIC, ANY
- OKUMA ESL-8 TURRET RADIAL (STAR TYPE), BMT BOLT PATTERN 45x80 HAAS ST20 SHL20/30, STATIC, ANY
$ USD
46000
In stock 3
46000
In stock 3

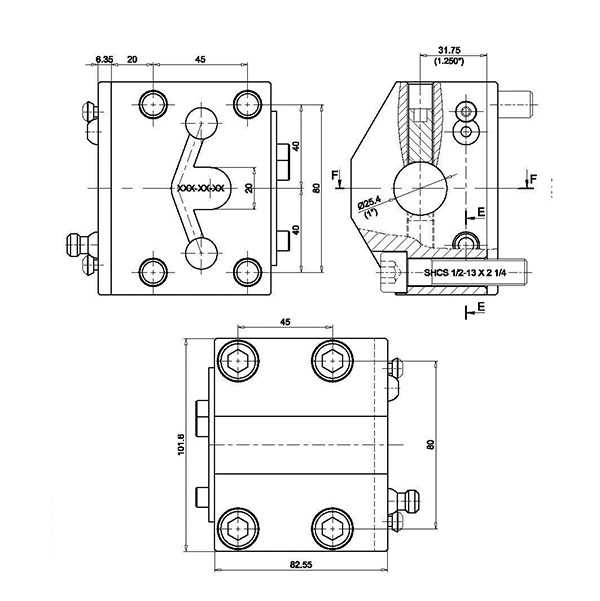

| SKU | Ø D | A | B | C | M | HAAS Lathe |
| THS004880 | 1" | 77 | 90 | 55 | 25 | HAAS SL10 HAAS ST10 HAAS HT10 |
| THS003883 | 82.6 | 101.6 | - | 1-1/4" | HAAS SL20 HAAS SL30 | |
| THS003892 | 86 | 102 | 90 | 61.4 | HAAS ST20 HAAS SL30 | |
| THS004881 | 1-1/4" | 77 | 90 | 55 | 25 | HAAS SL10 HAAS ST10 HAAS HT10 |
| THS004873 | - | - | - | 1-1/4" | HAAS ST20 HAAS SL30 | |
| THS004879 | 86 | 102 | 94 | 61.4 | HAAS ST20 HAAS SL30 | |
| THS003884 | 1-1/2" | 82.6 | 101.6 | - | 1-1/4" | HAAS SL20 HAAS SL30 |
| THS003893 | 86 | 102 | 94 | 61.4 | HAAS ST20 HAAS SL30 | |
| THS006535 | 1-3/4" | 82.6 | 101.6 | 64.8 | 1-1/4" | HAAS SL20 HAAS SL30 |
| THS006508 | - | - | - | - | HAAS SL20 | |
| THS006537 | 2" | 82.6 | 101.6 | 68.02 | 35 | HAAS SL20 HAAS SL30 |
| THS006509 | - | - | - | 61.4 | HAAS ST20 |
Updated 2022-02-09
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS003883 BMT BOLT PATTERN 45x80 BORING BAR HOLDER ID=( 1)" L=( 1- 1/ 4)" FOR HAAS SL20 SL30 | ||||||
| STRAIGHT | ( 1)" | ( 1- 1/ 2)" |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS003884 BMT BOLT PATTERN 45x80 BORING BAR HOLDER ID=( 1- 1/ 2)" L=( 1- 1/ 4)" FOR HAAS ST20 SL30 | ||||||
| STRAIGHT | ( 1- 1/ 2)" | ( 1- 1/ 2)" |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS003892 BMT BOLT PATTERN 45x80 BORING BAR HOLDER ID=( 1)" L=62 mm INT EXT CLNT HAAS ST20 SL30 | ||||||
| STRAIGHT | ( 1)" | 62 mm |
STATIC STATIC |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS003893 BMT BOLT PATTERN 45x80 BORING BAR HOLDER ID=( 1- 1/ 2)" L=62 mm INT EXT COOL HAAS ST20 | ||||||
| STRAIGHT | ( 1- 1/ 2)" | 62 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004873 BMT BOLT PATTERN 45x80 BORING BAR HOLDER ID=( 1- 1/ 4)" L=32 mm FOR HAAS ST20 | ||||||
| STRAIGHT | ( 1- 1/ 4)" | 32 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004879 BMT BOLT PATTERN 45x80 BORING BAR HOLDER ID=( 1- 1/ 4)" L=61.4 mm INT CLNT HAAS ST20 SL30 | ||||||
| STRAIGHT | ( 1- 1/ 4)" | 61.4 mm |
STATIC STATIC |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS004880 BMT BOLT PATTERN 45x70 BORING BAR HOLDER ID=( 1)" L=25 mm FOR HAAS SL10 ST10 HT10 | ||||||
| STRAIGHT | ( 1)" | 25 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004881 BMT BOLT PATTERN 45x70 BORING BAR HOLDER ID=( 1- 1/ 4)" L=25 mm IC HAAS SL10 ST10 HT10 | ||||||
| STRAIGHT | ( 1- 1/ 4)" | 25 mm |
STATIC STATIC |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS006508 BMT BOLT PATTERN 45x80 BORING BAR HOLDER ID=( 1- 3/ 4)" L=32 mm INT EXT CLNT FOR HAAS SL20 | ||||||
| STRAIGHT | ( 1- 3/ 4)" | 32 mm |
STATIC STATIC |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS006509 BMT BOLT PATTERN 45x80 BORING BAR HOLDER ID=( 2)" L=61 mm FOR HAAS SL20 INT EXT COOLANT | ||||||
| STRAIGHT | ( 2)" | 61 mm |
STATIC STATIC |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS006535 BMT BOLT PATTERN 45x80 BORING BAR HOLDER ID=( 1- 3/ 4)" L=( 1- 1/ 4)" IC FOR HAAS SL20 | ||||||
| STRAIGHT | ( 1- 3/ 4)" | ( 1- 1/ 2)" |
STATIC STATIC |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS006537 BMT BOLT PATTERN 45x80 BORING BAR HOLDER ID=( 2)" L=35 mm INT COOLANT FOR HAAS SL10 SL20 | ||||||
| STRAIGHT | ( 2)" | 35 mm |
STATIC STATIC |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS017140 BMT BOLT PATTERN 45x70 BORING BAR HOLDER ID=32 mm L=25 mm INT CLNT HAAS SL10 ST10 HT10 | ||||||
| STRAIGHT | 32 mm | 25 mm |
STATIC STATIC |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS017143 BMT BOLT PATTERN 45x70 BORING BAR HOLDER ID=( 1- 1/ 4)" L=( 1)" FOR HAAS ST10 HAAS ST15 | ||||||
| STRAIGHT | ( 1- 1/ 4)" | ( 1)" |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS017148 BMT BOLT PATTERN 45x70 BORING BAR HOLDER ID=( 1)" L=( 1)" FOR HAAS ST10 HAAS ST15 | ||||||
| STRAIGHT | ( 1)" | ( 1)" |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS017149 BMT BOLT PATTERN 45x70 BORING BAR HOLDER ID=32 mm L=( 1)" INT CLNT HAAS ST10 HAAS ST15 | ||||||
| STRAIGHT | DC11T3 | ( 1)" |
STATIC STATIC |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
Updated 202505.11
Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-BOLT PATTERN 45x80 HAAS ST20 SHL20/30, STATIC, ANY
