$ USD USD 99200

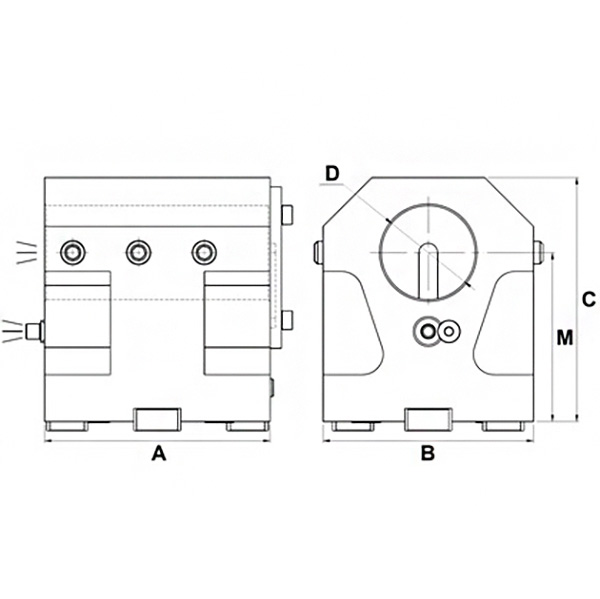

SKU D A B C M Bolt
pattern
THS006257 50 120 112 130 90 BMT75
THS003875 2" 4.72" 4.41" 5.12" 3.54"
THS006595 50 145 112 130 90
THS006255 50 120 112 151 110
THS006240 2" 4.72" 4.41" 5.94" 4.33"
THS006256 50 120 112 166 125
THS006239 2" 4.72" 4.41" 6.53" 4.92"
THS001099 2" 4.72" 4.41" 8.11" 6.50"
THS003954 2.5" 5.32" 4.41" 4.61" 2.76"
THS006260 60 120 112 137 90
THS003804 2.5" 4.72" 4.41" 5.39" 3.54"
THS006258 60 120 112 160 110
THS006241 2.5" 4.72" 4.41" 6.30" 4.33"
THS006259 60 120 112 172 125
THS006242 2.5" 4.72" 4.41" 6.77" 4.92"
THS003961 3" 5.51" 4.41" 6.70" 4.33"
THS006261 50 161.5 124 157 110 BMT85
THS006262 2" 6.36" 4.88" 6.18" 4.33"
THS006263 60 161.5 124 157 110
THS006266 2.5" 6.36" 4.88" 6.18" 4.33"
THS006264 80 161.5 130 162 110
THS006267 3" 6.36" 5.12" 6.38" 4.33"
THS006265 80 161.5 130 170 115
THS006268 3" 6.36" 5.12" 6.69" 4.53"
...

DIRECTION CAPACITY PROJECTION ROTATION HAND COOLANT OFFSET
THS001099 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=( 2)" L=165 mm INT EXT COOLANT FOR DAEWOO
STRAIGHT ( 2)" 165 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS003804 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=( 2- 1/ 2)" L=90 mm INT EXT CLNT FOR DAEWOO
STRAIGHT ( 2- 1/ 2)" 90 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS003875 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=( 2)" L=90 mm INT EXT COOLANT FOR DAEWOO
STRAIGHT ( 2)" 90 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT

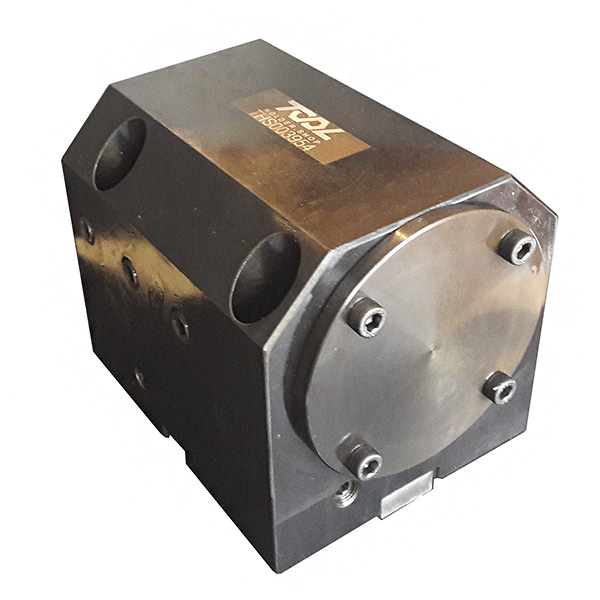

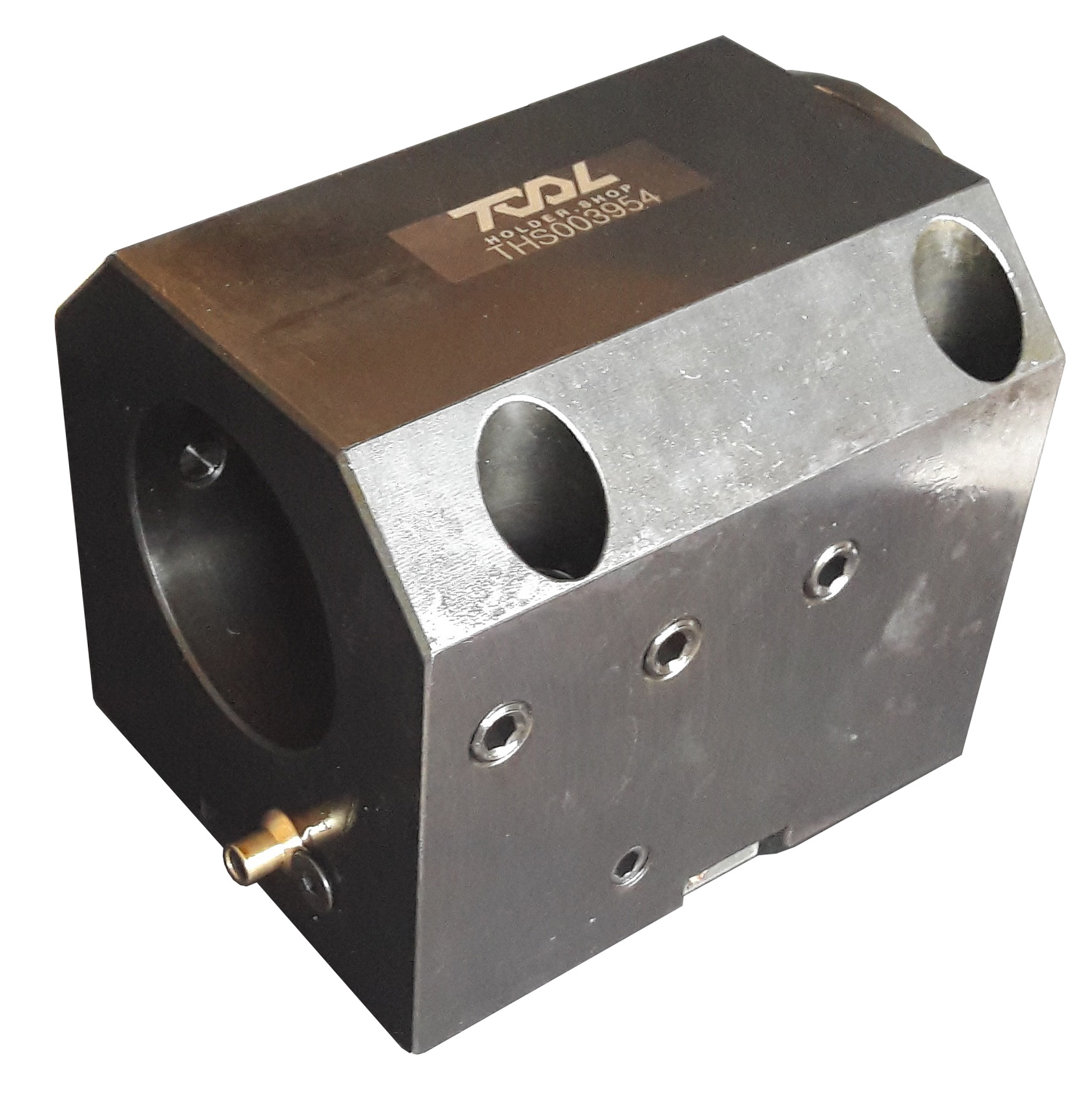

THS003954 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=( 2- 1/ 2)" L=70 mm INT EXT CLNT FOR DAEWOO
STRAIGHT ( 2- 1/ 2)" 70 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS003961 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=( 3)" L=110 mm W=140 mm INT CLNT FOR DAEWOO
STRAIGHT ( 3)" 110 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS006239 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=( 2)" L=125 mm INT EXT COOLANT FOR DAEWOO
STRAIGHT ( 2)" 125 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS006240 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=( 2)" L=110 mm INT EXT COOLANT FOR DAEWOO
STRAIGHT ( 2)" 110 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS006241 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=( 2- 1/ 2)" L=110 mm INT EXT CLNT FOR DAEWOO
STRAIGHT ( 2- 1/ 2)" 110 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS006242 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=( 2- 1/ 2)" L=125 mm INT EXT CLNT FOR DAEWOO
STRAIGHT ( 2- 1/ 2)" 125 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS006255 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=50 mm L=110 mm INT EXT COOLANT FOR DAEWOO
STRAIGHT 50 mm 110 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS006256 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=50 mm L=125 mm INT EXT COOLANT FOR DAEWOO
STRAIGHT 50 mm 125 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS006257 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=50 mm L=90 mm INT EXT COOLANT FOR DAEWOO
STRAIGHT 50 mm 90 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS006258 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=60 mm L=110 mm INT EXT COOLANT FOR DAEWOO
STRAIGHT 60 mm 110 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS006259 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=60 mm L=125 mm INT EXT COOLANT FOR DAEWOO
STRAIGHT 60 mm 125 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS006260 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=60 mm L=90 mm INT EXT COOLANT FOR DAEWOO
STRAIGHT 60 mm 90 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS006261 BMT85 BORING BAR HOLDER ID=50 mm L=110 mm FOR DAEWOO
STRAIGHT 50 mm 110 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006262 BMT85 BORING BAR HOLDER ID=( 2)" L=110 mm INTERNAL COOLANT FOR DAEWOO
STRAIGHT ( 2)" 110 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS006263 BMT85 BORING BAR HOLDER ID=60 mm L=110 mm FOR DAEWOO
STRAIGHT 60 mm 110 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006264 BMT85 BORING BAR HOLDER ID=80 mm L=110 mm FOR DAEWOO
STRAIGHT 80 mm 110 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006265 BMT85 BORING BAR HOLDER ID=80 mm L=115 mm FOR DAEWOO
STRAIGHT 80 mm 115 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006266 BMT85 BORING BAR HOLDER ID=( 2- 1/ 2)" L=110 mm FOR DAEWOO
STRAIGHT ( 2- 1/ 2)" 110 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006267 BMT85 BORING BAR HOLDER ID=( 3)" L=110 mm FOR DAEWOO
STRAIGHT ( 3)" 110 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006268 BMT85 BORING BAR HOLDER ID=( 3)" L=115 mm FOR DAEWOO
STRAIGHT ( 3)" 115 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS006595 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=50 mm L=90 mm W=145 INT EXT CLNT FOR DAEWOO
STRAIGHT 50 mm 90 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS014566 BMT85 BORING BAR HOLDER ID=( 2- 1/ 2)" mm L=110 mm A=240 mm SLOT FOR DAEWOO
STRAIGHT ( 2- 1/ 2)" 110 mm STATIC
STATIC
STRAIGHT EXTERNAL COOLANT STRAIGHT
THS017363 BMT85 BORING BAR HOLDER ID= 80 mm L=95 mm INTERNAL COOLANT FOR DAEWOO
STRAIGHT 80 mm 95 mm STATIC
STATIC
STRAIGHT INTERNAL COOLANT THROUGH STRAIGHT
THS019270 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=40 mm L=125 mm INT EXT COOLANT FOR DAEWOO

THS019271 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=50 mm L= 70 mm INT EXT COOLANT FOR DAEWOO

THS019272 BMT75 BOLT PATTERN 90x90 BORING BAR HOLDER ID=50 mm L=165 mm INT EXT COOLANT FOR DAEWOO

THS019273 BMT85 BORING BAR HOLDER ID=( 3)" L=165 mm FOR DAEWOO


Updated 202411

Tool holder machine interface: RADIAL (STAR TYPE) turret, BMT-75, STATIC, ANY
