SHANK OD50 BAR PULLER H=125 mm L=114 mm
THS004163
$ USD
106700
106700

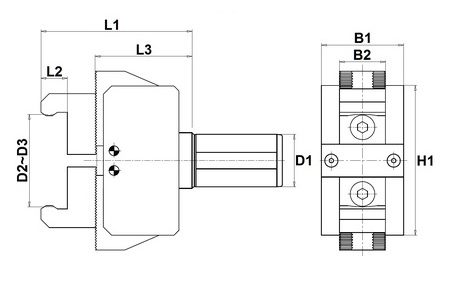

| SKU | D1 | D2 ~ D3 Range |
B1 | B2 | H1 | L1 | L2 | L3 |
| THS002913 | 32 | 8 ~ 60 | 50 | 28 | 72 | 92 | 16 | 59 |
| THS004160 | 54 ~ 110 | |||||||
| THS004161 | 40 | 8 ~ 66 | 60 | 28 | 110 | 94 | 16 | 61 |
| THS004160 | 54 ~ 110 | |||||||
| THS004162 | 50 | 8 ~ 75 | 65 | 28 | 130 | 114 | 16 | 81 |
| THS004163 | 60 ~ 125 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS002913 SHANK OD=25 mm BAR PULLER H=50 mm L=51 mm | ||||||
| STRAIGHT | 50 mm | 51 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS002914 SHANK OD=32 mm BAR PULLER H=50 mm L=51 mm | ||||||
| STRAIGHT | 50 mm | 51 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004159 SHANK OD32 BAR PULLER H=110 mm L=84 mm | ||||||
| STRAIGHT | 110 mm | 84 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004160 SHANK OD40 BAR PULLER H=110 mm L=92 mm | ||||||
| STRAIGHT | 110 mm | 92 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004161 SHANK OD40 BAR PULLER H=66 mm L=94 mm | ||||||
| STRAIGHT | 66 mm | 94 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004162 SHANK OD50 BAR PULLER H=75 mm L=114 mm | ||||||
| STRAIGHT | 75 mm | 114 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004163 SHANK OD50 BAR PULLER H=125 mm L=114 mm | ||||||
| STRAIGHT | 125 mm | 114 mm |
STATIC STATIC |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
COMPATIBLE LATHES
