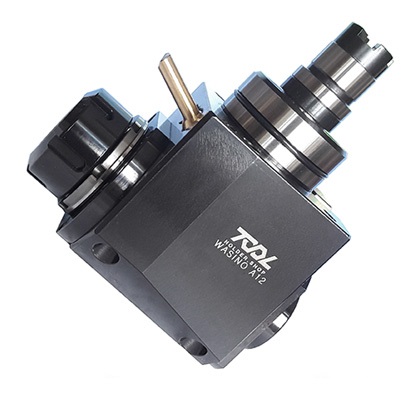

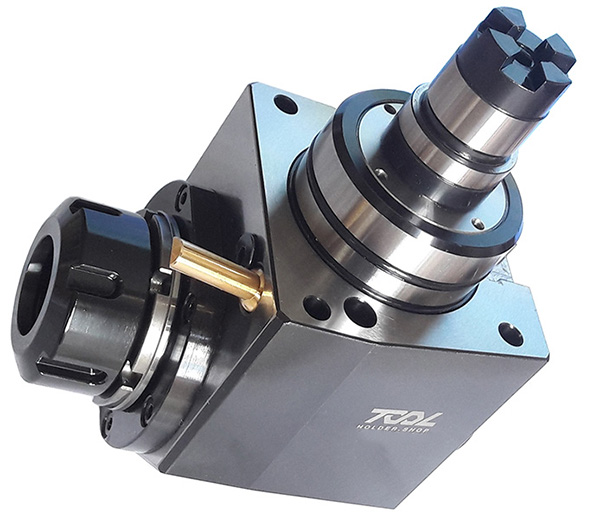

WASINO A12 RADIAL DRILLING MILLING HEAD ER32 L= 55 mm
THS004328
Compatible lathes
$ USD
266200
266200

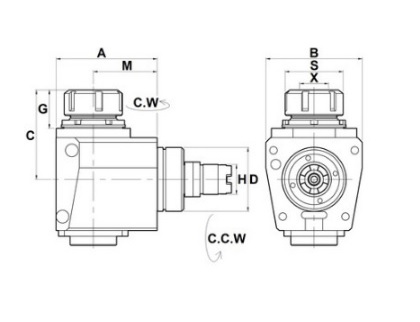

| SKU | D | X ER size |
RPM | A | B | C | G | M | H | WASINO AMADA LATHE |
| THS004327 | 55 | 1~13 ER20 | 5000 | 87 | 83 | 78 | 34 | 55 | 25.8 | AMADA WASINO A-12 BIG DAISHOWA MZW-20A compatible |
| THS015651 | 55 | 1~16 ER25 | 5000 | 87 | 83 | 78 | 34 | 55 | 25.8 | |
| THS004328 | 55 | 2~20 ER32 | 5000 | 87 | 83 | 80 | 36 | 55 | 25.8 |
Updated 2022-01-02
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004327 WASINO A12 RADIAL DRILLING MILLING HEAD ER20 L= 55 mm MZW-20A COMPATIBLE | ||||||
| ANGLE 90 DEGREE | ER20 | 55 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004328 WASINO A12 RADIAL DRILLING MILLING HEAD ER32 L= 55 mm | ||||||
| ANGLE 90 DEGREE | ER32 | 55 mm |
N/D 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS015651 WASINO A12 RADIAL DRILLING MILLING HEAD ER25 L= 55 mm FOR WASINO A12 | ||||||
| ANGLE 90 DEGREE | ER25 | 55 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: ANY turret, WASINO A12-55, SPUR-IT, ANY
COMPATIBLE LATHES
WASINO A-12 DIA.55 TURRET ; WASINO JJ-3M TURRET DIA.55 TURRET ; MIYANO A-12 TURRET ;
