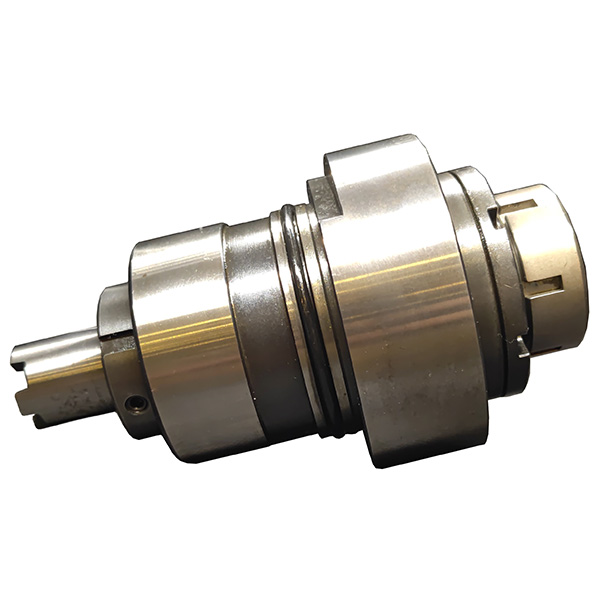

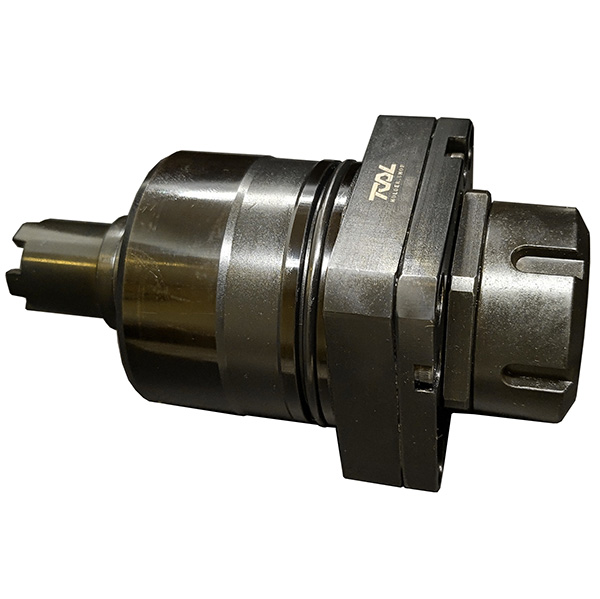

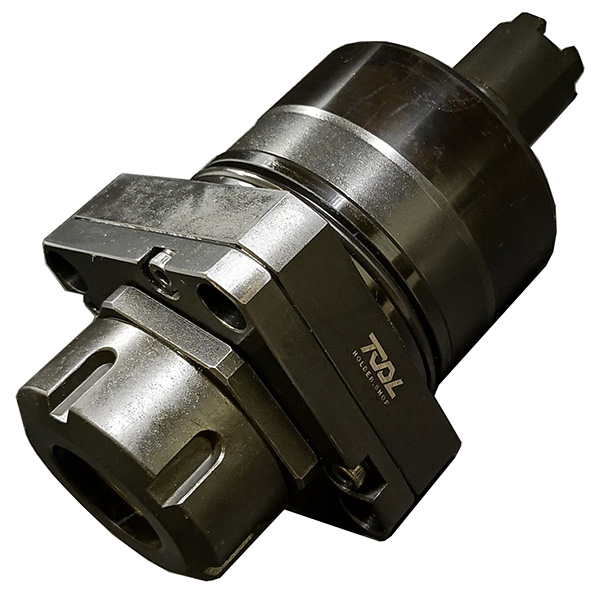

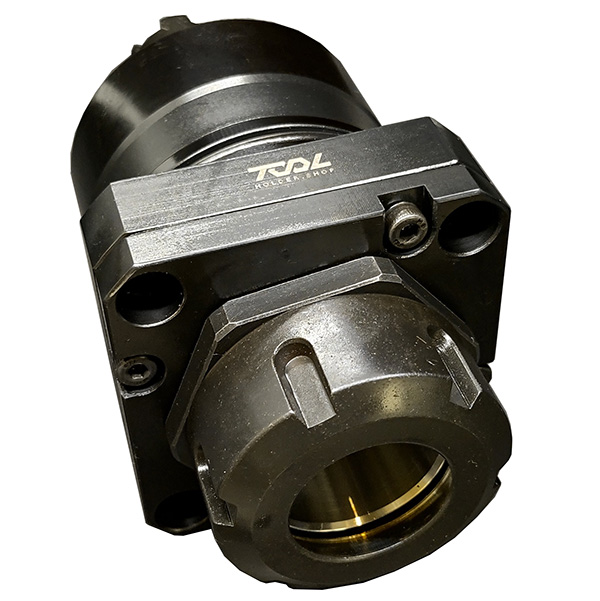

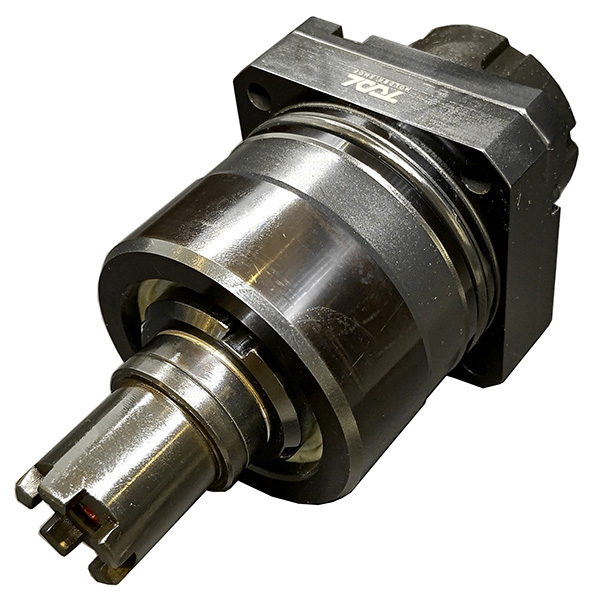

WASINO A18 AXIAL DRILLING MILLING HEAD ER32 L= 80 mm
THS004296

Compatible lathes

$ USD USD 175400
SKU D X

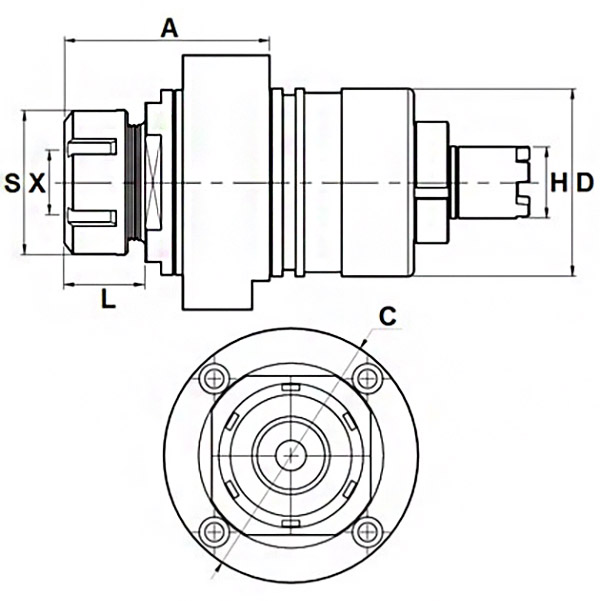

Capacity		 S RPM A C H L WASINO LATHE
THS004294 65 1~16 ER25 40 6000 110 88 24.8 70 WASINO A-18
THS004290 140 100
THS004293 2~20 ER32 50 80 41
THS004296 120 80
...

DIRECTION CAPACITY PROJECTION ROTATION HAND COOLANT OFFSET
THS004290 WASINO A18 AXIAL DRILLING MILLING HEAD ER25 L=140 mm
STRAIGHT ER25 140 mm CW-CW
1:1		 STRAIGHT EXTERNAL COOLANT STRAIGHT
THS004293 WASINO A18 53x53 AXIAL DRILLING MILLING HEAD ER32 L= 80 mm FOR AMADA WASINO A18
STRAIGHT ER32 80 mm CW-CW
1:1		 STRAIGHT EXTERNAL COOLANT STRAIGHT
THS004294 WASINO A18 AXIAL DRILLING MILLING HEAD ER25 L= 70 mm
STRAIGHT ER25 70 mm CW-CW
1:1		 STRAIGHT EXTERNAL COOLANT STRAIGHT
THS004296 WASINO A18 AXIAL DRILLING MILLING HEAD ER32 L= 80 mm
STRAIGHT ER32 80 mm CW-CW
1:1		 STRAIGHT EXTERNAL COOLANT STRAIGHT

Updated 202410

Tool holder machine interface: ANY turret, WASINO A18-65, SPUR-IT, ANY
