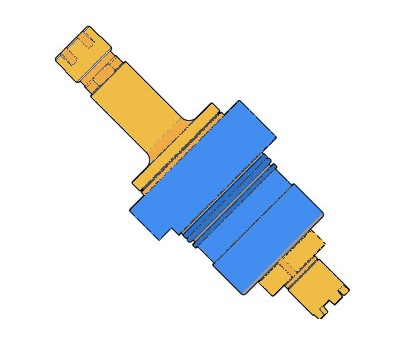

WASINO A18 AXIAL DRILLING MILLING HEAD ER20M L=140 mm
THS004291

Compatible lathes

$ USD USD 183000
SKU D X
Capacity		 S RPM A B C H WASINO LATHE
THS004297 65 1~10 ER16M 22 6000 40 90 88 24.8 WASINO A-18
THS004292 100
THS004295 65 1~13 ER20M 28 6000 40 80 88 24.8
THS004291 100
...

DIRECTION CAPACITY PROJECTION ROTATION HAND COOLANT OFFSET
THS004291 WASINO A18 AXIAL DRILLING MILLING HEAD ER20M L=140 mm
STRAIGHT ER20 140 mm CW-CW
1:1		 STRAIGHT EXTERNAL COOLANT STRAIGHT
THS004292 WASINO A18 AXIAL DRILLING MILLING HEAD ER16M L=140 mm
STRAIGHT ER16 140 mm CW-CW
1:1		 STRAIGHT EXTERNAL COOLANT STRAIGHT
THS004295 WASINO A18 AXIAL DRILLING MILLING HEAD ER20M L=120 mm
STRAIGHT ER20 120 mm CW-CW
1:1		 STRAIGHT EXTERNAL COOLANT STRAIGHT
THS004297 WASINO A18 AXIAL DRILLING MILLING HEAD ER16M L=115 mm
STRAIGHT ER16 115 mm CW-CW
1:1		 STRAIGHT EXTERNAL COOLANT STRAIGHT

Updated 202410

Tool holder machine interface: ANY turret, WASINO A18-65, SPUR-IT, ANY
