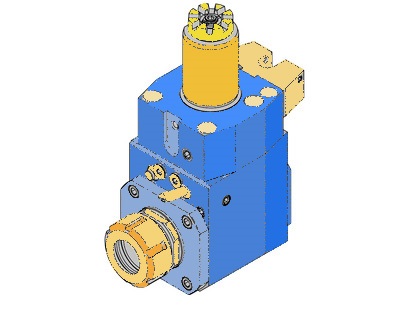

VDI60 SPUR-MT RADIAL DRILLING MILLING HEAD RIGHT HAND ER50 L=106 mm CW-CW
THS001501
Compatible lathes
- BARUFFALDI TBMA-400 TURRET AXIAL VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- MATRA STM-700B TURRET VDI60 SPUR-MT TURRET ANY, VDI 60, SPUR-MT,
- BARUFFALDI TBMA-320 TURRET AXIAL VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- LAGUN TURNMASTER SBA-890-35 TBMA-400 TURRET VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- LAGUN TURNMASTER SBS-890-31 TBMA-320 TURRET VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- LAGUN TURNMASTER SBA-1020-40 TBMA-400 TURRET VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- LAGUN TURNMASTER SBS-790-35 TBMA-320 TURRET VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- CLAUSING CL-SERIES TURRET TBMA-320 BARUFFALDI VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- CLAUSING CB-SERIES TURRET TBMA-320 BARUFFALDI VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- CLAUSING CC-SERIES TURRET TBMA-320 BARUFFALDI VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- CLAUSING CK-SERIES TURRET TBMA-400 BARUFFALDI VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD LC-50 TURRET VDI60 SPUR-MT TURRET ANY, VDI 60, SPUR-MT,
- JOHNFORD GT-40 TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD GT-80 TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD LC-40 TURRET VDI60 SPUR-MT TURRET ANY, VDI 60, SPUR-MT,
- JOHNFORD LC-60 TURRET VDI60 SPUR-MT TURRET ANY, VDI 60, SPUR-MT,
- JOHNFORD ST-80C TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD ST-80D TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD ST-130D TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD ST-130C TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD ST-100D TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD ST-100C TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD ST-160C TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD ST-200C TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD ST-240C TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD ST-160D TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD ST-240D TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD ST-200D TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD GT-120 TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD GT-160 TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD GT-275 TURRET TBMA-400 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD GT-320 TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD GT-355 TURRET TBMA-400 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD GT-240 TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD GT-395 TURRET TBMA-400 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- JOHNFORD GT-200 TURRET TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- DUGARD MEGATURN SS-31 TURRET BARUFFALDI TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- DUGARD MEGATURN SS-35 TURRET BARUFFALDI TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- DUGARD MEGATURN SS-27 TURRET BARUFFALDI TBMA-320 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- DUGARD MEGATURN SA-35 TURRET BARUFFALDI TBMA-400 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- DUGARD MEGATURN SA-40 TURRET BARUFFALDI TBMA-400 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
- DUGARD MEGATURN SA-45 TURRET BARUFFALDI TBMA-400 VDI60 SPUR-MT TURRET AXIAL, VDI 60, SPUR-MT,
$ USD
488900
488900

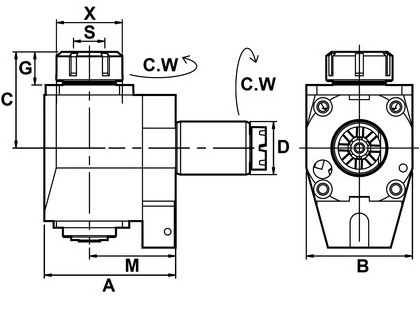

| SKU | D DIN 69880 |
X Capacity |
S | RPM | Gear Ratio |
A | B | C | G | M |
| THS001488 | 40 | 2~20 ER32 | 50 | 5000 | 1 : 1 | 99 | 80 | 85 | 34 | 65 |
| THS001485 | 119 | 80 | 85 | 34 | 85 | |||||
| THS001486 | 134 | 80 | 85 | 34 | 100 | |||||
| THS001487 | 158 | 80 | 95 | 37 | 120 | |||||
| THS001498 | 50 | 3~26 ER40 | 63 | 5000 | 1 : 1 | 115 | 88 | 103 | 40 | 75 |
| THS007052 | 123 | 88 | 118 | 51 | 75 | |||||
| THS001501 | 60 | 10~34 ER50 | 78 | 5000 | 1 : 1 | 156 | 104 | 139 | 56.5 | 106 |
Clockwise Input to Clockwise Output Rotation: THS001488
Coolant-Through Spindle: THS007052
Coolant-Through Spindle: THS007052
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS001485 VDI40 SPUR-MT RADIAL DRILLING MILLING HEAD RIGHT HAND ER32 L=85 mm CW-CW | ||||||
| ANGLE 90 DEGREE | ER32 | 85 mm |
CW-CW 1:1 |
RIGHT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001486 VDI40 SPUR-MT RADIAL DRILLING MILLING HEAD RIGHT HAND ER32 L=100 mm CW-CW | ||||||
| ANGLE 90 DEGREE | ER32 | 100 mm |
CW-CW 1:1 |
RIGHT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001487 VDI40 SPUR-MT RADIAL DRILLING MILLING HEAD RIGHT HAND ER32 L=120 mm CW-CW | ||||||
| ANGLE 90 DEGREE | ER32 | 120 mm |
CW-CW 1:1 |
RIGHT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001488 VDI40 SPUR-MT RADIAL DRILLING MILLING HEAD RIGHT HAND ER32 L=65 mm CW-CW | ||||||
| ANGLE 90 DEGREE | ER32 | 65 mm |
CW-CW 1:1 |
RIGHT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001498 VDI50 SPUR-MT RADIAL DRILLING MILLING HEAD RIGHT HAND ER40 L=75 mm CW-CW | ||||||
| ANGLE 90 DEGREE | ER40 | 75 mm |
CW-CW 1:1 |
RIGHT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001501 VDI60 SPUR-MT RADIAL DRILLING MILLING HEAD RIGHT HAND ER50 L=106 mm CW-CW | ||||||
| ANGLE 90 DEGREE | ER50 | 106 mm |
CW-CW 1:1 |
RIGHT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS007052 VDI50 SPUR-MT RADIAL DRILLING MILLING HEAD RIGHT HAND ER40 L= 75 mm CW-CW COOLANT THROUGH | ||||||
| ANGLE 90 DEGREE | ER40 | 75 mm |
CW-CW 1:1 |
RIGHT HAND | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS015594 VDI50 SPUR MT RADIAL DRILLING MILLING HEAD RIGHT HAND ER40A L= 75 mm INT CLNT CW-CW | ||||||
| ANGLE 90 DEGREE | ER40 | 75 mm |
CW-CW 1:1 |
RIGHT HAND | INTERNAL COOLANT THROUGH | STRAIGHT |
Updated 202506.21
Tool holder machine interface: ANY turret, VDI-60, SPUR-MT, ANY
