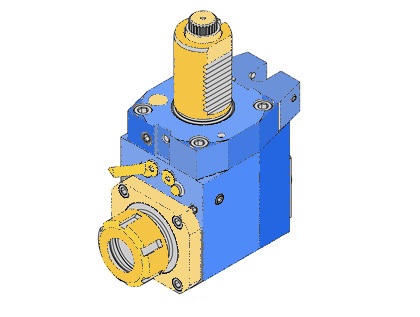

VDI40 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER32 L=120 mm
THS006666
$ USD
313800
313800

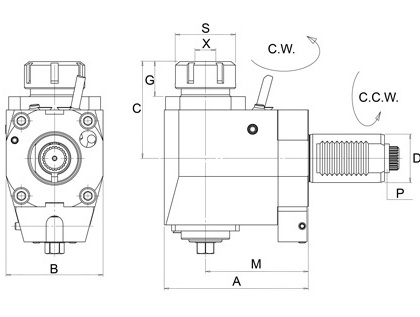

| SKU | D DIN 69880 |
X Capacity |
S | RPM | i | A | B | C | G | M | P DIN 5480 |
| THS001310 | 20 | 1~10 ER16 | 30 | 5000 | 1 : 1 | 72 | 50 | 65 | 26.5 | 50 | W11x0.8 |
| THS001316 | 30 | 1~10 ER16 | 30 | 5000 | 1 : 1 | 117 | 64 | 75 | 23 | 85 | W11x0.8 |
| THS001318 | 30 | 1~16 ER25 | 42 | 5000 | 1 : 1 | 97 | 64 | 74.5 | 26 | 55 | W16x0.8 |
| THS001318 | 30 | 1~16 ER25 | 42 | 5000 | 1 : 1 | 117 | 64 | 74.5 | 26 | 85 | W16x0.8 |
| THS001317 | 30 | 1~16 ER25 | 42 | 5000 | 1 : 1 | 127 | 64 | 74.5 | 26 | 100 | W16x0.8 |
| THS001335 | 40 | 2~20 ER32 | 50 | 5000 | 1 : 1 | 99 | 80 | 80 | 29 | 65 | W20x0.8 |
| THS001335 | 40 | 2~20 ER32 | 50 | 5000 | 1 : 1 | 103 | 76 | 89.5 | 36.5 | 65 | W20x0.8 |
| THS001337 | 40 | 2~20 ER32 | 50 | 5000 | 1 : 1 | 119 | 80 | 80 | 29 | 85 | W20x0.8 |
| THS001338 | 40 | 2~20 ER32 | 50 | 5000 | 1 : 1 | 123 | 76 | 89.5 | 36.5 | 85 | W20x0.8 |
| THS001334 | 40 | 2~20 ER32 | 50 | 5000 | 1 : 1 | 134 | 80 | 80 | 29 | 100 | W20x0.8 |
| THS001372 | 40 | 2~20 ER32 | 50 | 5000 | 1 : 1 | 138 | 76 | 89.5 | 36.5 | 100 | W20x0.8 |
| THS006666 | 40 | 2~20 ER32 | 50 | 5000 | 1 : 1 | 154 | 80 | 80 | 29 | 120 | W20x0.8 |
THS001335, THS001338 and THS001372: Coolant-Through Spindle
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS001310 VDI20 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER16 L=50 mm | ||||||
| ANGLE 90 DEGREE | ER16 | 50 mm |
CW-CW 1:1 |
LEFT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001316 VDI30 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER16 L=85 mm | ||||||
| ANGLE 90 DEGREE | ER16 | 85 mm |
CW-CW 1:1 |
LEFT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001317 VDI30 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER25 L=100 mm | ||||||
| ANGLE 90 DEGREE | ER25 | 100 mm |
CW-CW 1:1 |
LEFT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001318 VDI30 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER25 L=55 mm | ||||||
| ANGLE 90 DEGREE | ER25 | 55 mm |
CW-CW 1:1 |
LEFT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001319 VDI30 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER25 L=85 mm | ||||||
| ANGLE 90 DEGREE | ER25 | 85 mm |
CW-CW 1:1 |
LEFT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001334 VDI40 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER32 L=100 mm | ||||||
| ANGLE 90 DEGREE | ER32 | 100 mm |
CW-CW 1:1 |
LEFT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001335 VDI40 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER32 L= 65 mm | ||||||
| ANGLE 90 DEGREE | ER32 | 65 mm |
CW-CW 1:1 |
LEFT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001336 VDI40 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER32 L= 65 mm INTERNAL COOLANT | ||||||
| ANGLE 90 DEGREE | ER32 | 65 mm |
CW-CW 1:1 |
LEFT HAND | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS001337 VDI40 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER32 L= 85 mm | ||||||
| ANGLE 90 DEGREE | ER32 | 85 mm |
CW-CW 1:1 |
LEFT HAND | EXTERNAL COOLANT | STRAIGHT |
| THS001338 VDI40 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER32 L= 85 mm INTERNAL COOLANT | ||||||
| ANGLE 90 DEGREE | ER32 | 85 mm |
CW-CW 1:1 |
LEFT HAND | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS001372 VDI40 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER32 L=100 mm INTERNAL COOLANT | ||||||
| ANGLE 90 DEGREE | ER32 | 100 mm |
CW-CW 1:1 |
LEFT HAND | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS006666 VDI40 DIN5480 RADIAL DRILLING MILLING HEAD LEFT HAND ER32 L=120 mm | ||||||
| ANGLE 90 DEGREE | ER32 | 120 mm |
CW-CCW 1:1 |
LEFT HAND | EXTERNAL COOLANT | STRAIGHT |
Updated 202505.11
