VDI40 DIN5482 AXIAL DRILLING MILLING HEAD ER32 L=128 mm INTERNAL COOLANT
THS004917
Compatible lathes
- MAGDEBURGER M-400U-2 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MONFORTS RNC-400MT MULTITURN TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- GRAZIANO CTX-500 NO SUBSP TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-400S-4 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- HEYLIGENSTAEDT HEYNUMAT HN-5 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- NILES-SIMMONS N-20 AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MONFORTS MNC-500 DOUBLE-TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- NILES-SIMMONS N-10 DBL-TURRET AXIAL SAUTER VDI30 DIN5482 TURRET AXIAL, VDI 30, DIN5482,
- MONFORTS RNC-600MT MULTITURN AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MONFORTS RNC-400Y TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, Y-AXIS
- MONFORTS RNC-500Y TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, Y-AXIS
- NILES-SIMMONS N-10 AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- ANGELINI DG-13CNC TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- COLCHESTER TORNADO-T220M TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG GILDEMEISTER CTX-500 TURRET RADIAL VDI40 DIN5482 TURRET RADIAL (STAR TYPE), VDI 40, DIN5482,
- LARU B20x17 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MONFORTS RNC-4 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MONFORTS RNC-5 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MONFORTS RNC-500MT MULTITURN TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- SAEILO CONTUR-TSL-500 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- SAUTER TURRET AXIAL VDI40 DIN5482 B17x14(40) TURRET AXIAL, VDI 40, DIN5482,
- SAUTER TURRET VDI40 DIN5482 B20x17(40) TURRET AXIAL, VDI 40, DIN5482,
- TRAUB TNA-400 TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- COLCHESTER STORM II-220M TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DOOSAN MECATEC S-390LM TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-120 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-160S-4 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-160U-2 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-160U-4 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- MAGDEBURGER M-300 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- HARDINGE TALENT 8/52A TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- HARDINGE TALENT 10/78 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- WFL MILLTURN M-30 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- GRAZIANO GT-400 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- COLCHESTER TORNADO-22M SAUTER TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- COLCHESTER TORNADO-T8M TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG GILDEMEISTER CTX-510ECO HYBRID-TURRET SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, Y-AXIS
- DMG GILDEMEISTER CTX-500-SERIE2 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG GILDEMEISTER CTX-400-SERIE2 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG GILDEMEISTER CTX-500E TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- GITAL GT-500 TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- GRAZIANO 400C TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- HARDINGE TALENT 8/66 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- HYUNDAI SKT-21LMS TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- HYUNDAI SKT-15LMS TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-15LM TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-15LMS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-21 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-21L TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-21LM TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-21LMS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- KIA SUPER KIA TURN SKT-21LS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WIA SKT-15LMS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WIA SKT-21LMS TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- VICTOR VTURN-V560CV TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- VICTOR VTURN-V560 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- ANGELINI BRAVO TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WFL WNC-300 TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- HEID S-300 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- GRAZIANO GT-500 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- GRAZIANO CTX-400 NO SUBSP TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- GRAZIANO GR-400C TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- DMG GILDEMEISTER CTX-400S2 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG GILDEMEISTER CTX-600E AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DMG GILDEMEISTER CTX-600S2 AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- VOEST-ALPINE WNC-500S TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- CLAUSING TORNADO T-8M TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- CLAUSING TORNADO T-10M TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- CLAUSING TORNADO T-8MS TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- VOEST-ALPINE WNC-400 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- VOEST-ALPINE WNC-300 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WFL WNC-400 TURRET RADIAL VDI40 DIN5482 TURRET RADIAL (STAR TYPE), VDI 40, DIN5482,
- FAT TUR-630AMN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT TUR-630MN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT TUR-560MN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT TUR-710MN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT TUR-710AMN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT FCT-700 12-TLS TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- FAT FCT-700A 12-TLS TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- KIA SUPER TURN ST-21LMS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- KIA KIA TURN KT-15LMS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WIA L-210LMSA TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- WIA L-150LMSA TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DAEWOO PUMA-10S3A TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- DAEWOO PUMA-8HC3A TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- COLCHESTER TORNADO-T10M TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- DOOSAN DOOTURN S-390LM TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- KERN CD-480 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- FAT TUR-630MN-2000 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MAHO GR-400 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- HEYLIGENSTAEDT HEYNUTWIN HT TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MONFORTS RNC-600AC TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- KERN CD-650 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MAHO GR-500 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- DMG GILDEMEISTER CT-60 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- HEYLIGENSTAEDT HEYNUMAT HN-5UK TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- HEYLIGENSTAEDT HEYNUMAT HN-5FK TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MONFORTS KNC-8 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MONFORTS RNC-400AC TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MONFORTS RNC-500AC TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MAHO MT-500C TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- STOREBRO STM-4000 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- MONFORTS MNC-5Y TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, Y-AXIS
- STOREBRO STB-4000 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- VOEST-ALPINE WNC-300S TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- NILES-SIMMONS N-10LT DBL-TURRET AXIAL SAUTER VDI30 DIN5482 TURRET AXIAL, VDI 30, DIN5482,
- HESSAPP DVT-300 DBL-TURRET RADIAL VDI40 DIN5482 TURRET RADIAL (STAR TYPE), VDI 40, DIN5482,
- MAHO 500T TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- HESSAPP DVT-200 DBL-TURRET RADIAL VDI40 TURRET RADIAL (STAR TYPE), VDI 40, DIN5482,
- WEISSER SOEHNE UNIVERTOR A-90L TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WEISSER SOEHNE VK C1-CNC TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WAGNER WDST-780X1200 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WAGNER WDST-780X700 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WAGNER WDST-600X600 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WAGNER WDST-780X1700 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WAGNER WDST-600X1000 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482,
- WAGNER WDS-560A TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- WAGNER WDS-560 TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- WAGNER WDS-480 8-TLS TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482,
- DAINICHI DIN5482 B17x14 (40) TURRET RADIAL (STAR TYPE), VDI 40, DIN5482, ANY
189900

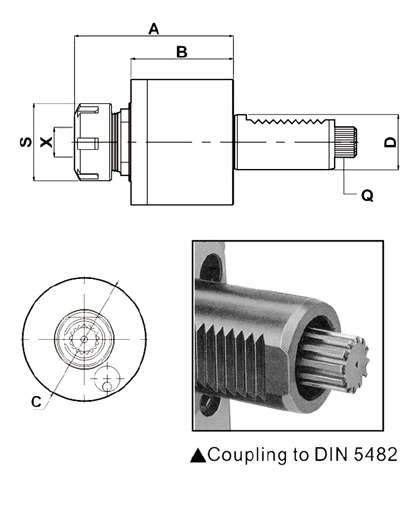

| SKU | D DIN 69880 |
X Capacity |
S | RPM | Gear Ratio |
A | B | C | Q DIN 5482 |
| THS001190 | 30 | 1~16 ER25 | 42 | 6000 | 1 : 1 | 101 | 70 | 68 | B15x12 |
| THS001191 | 1 : 1 | 101.5 | 72.5 | 68 | |||||
| THS001195 | 40 | 1~16 ER25 | 42 | 6000 | 1 : 1 | 108.5 | 73.5 | 86 | B17x14 |
| THS001196 | 2~20 ER32 | 50 | 1 : 1 | 110 | 73.5 | 86 | |||
| THS004917 | 1 : 1 | 128 | 83.6 | 86 | |||||
| THS001200 | 50 | 3~26 ER40 | 63 | 6000 | 1 : 1 | 120 | 81.5 | 96 | B20x17 |
| THS001201 | 1 : 1 | 136.5 | 94.5 | 96 | |||||
| THS001204 | 60 | 10~34 ER50 | 78 | 6000 | 1 : 1 | 140 | 88.5 | 116 | B25x22 |
| THS006675 | 1 : 1 | 143.8 | 89.8 | 116 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS001190 VDI30 DIN5482 AXIAL DRILLING MILLING HEAD ER25 L=101 mm | ||||||
| STRAIGHT | ER25 | 101 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001191 VDI30 DIN5482 AXIAL DRILLING MILLING HEAD ER25 L=102 mm INTERNAL COOLANT | ||||||
| STRAIGHT | ER25 | 102 mm |
CW-CW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS001195 VDI40 DIN5482 AXIAL DRILLING MILLING HEAD ER25 L=109 mm | ||||||
| STRAIGHT | ER25 | 109 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001196 VDI40 DIN5482 AXIAL DRILLING MILLING HEAD ER32 L=110 mm | ||||||
| STRAIGHT | ER32 | 110 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001200 VDI50 DIN5482 AXIAL DRILLING MILLING HEAD ER40 L=120 mm | ||||||
| STRAIGHT | ER40 | 120 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS001201 VDI50 DIN5482 AXIAL DRILLING MILLING HEAD ER40 L=137 mm INTERNAL COOLANT | ||||||
| STRAIGHT | ER40 | 137 mm |
CW-CW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS001204 VDI60 DIN5482 AXIAL DRILLING MILLING HEAD ER50 L=143 mm | ||||||
| STRAIGHT | ER50 | 143 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004917 VDI40 DIN5482 AXIAL DRILLING MILLING HEAD ER32 L=128 mm INTERNAL COOLANT | ||||||
| STRAIGHT | ER32 | 128 mm |
CW-CW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS006675 VDI60 DIN5482 AXIAL DRILLING MILLING HEAD ER50 L=144 mm | ||||||
| STRAIGHT | ER50 | 144 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS018309 VDI30 DIN5482 AXIAL DRILLING MILLING HEAD ER32 L=121 mm | ||||||
| STRAIGHT | ER32 | 121 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: ANY turret, VDI-40, DIN5482, ANY
COMPATIBLE LATHES
MAGDEBURGER M-400U-2 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; MONFORTS RNC-400MT MULTITURN TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; GRAZIANO CTX-500 NO SUBSP TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; MAGDEBURGER M-400S-4 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; HEYLIGENSTAEDT HEYNUMAT HN-5 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; NILES-SIMMONS N-20 AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; MONFORTS MNC-500 DOUBLE-TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; NILES-SIMMONS N-10 DBL-TURRET AXIAL SAUTER VDI30 DIN5482 TURRET AXIAL, VDI 30, DIN5482, ; MONFORTS RNC-600MT MULTITURN AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; MONFORTS RNC-400Y TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, Y-AXIS; MONFORTS RNC-500Y TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, Y-AXIS; NILES-SIMMONS N-10 AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; ANGELINI DG-13CNC TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; COLCHESTER TORNADO-T220M TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; DMG GILDEMEISTER CTX-500 TURRET RADIAL VDI40 DIN5482 TURRET RADIAL (STAR TYPE), VDI 40, DIN5482, ; LARU B20x17 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; MONFORTS RNC-4 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; MONFORTS RNC-5 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; MONFORTS RNC-500MT MULTITURN TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; SAEILO CONTUR-TSL-500 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; SAUTER TURRET AXIAL VDI40 DIN5482 B17x14(40) TURRET AXIAL, VDI 40, DIN5482, ; SAUTER TURRET VDI40 DIN5482 B20x17(40) TURRET AXIAL, VDI 40, DIN5482, ; TRAUB TNA-400 TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; COLCHESTER STORM II-220M TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; DOOSAN MECATEC S-390LM TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; MAGDEBURGER M-120 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; MAGDEBURGER M-160S-4 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; MAGDEBURGER M-160U-2 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; MAGDEBURGER M-160U-4 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; MAGDEBURGER M-300 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; HARDINGE TALENT 8/52A TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; HARDINGE TALENT 10/78 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; WFL MILLTURN M-30 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; GRAZIANO GT-400 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; COLCHESTER TORNADO-22M SAUTER TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; COLCHESTER TORNADO-T8M TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; DMG GILDEMEISTER CTX-510ECO HYBRID-TURRET SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, Y-AXIS; DMG GILDEMEISTER CTX-500-SERIE2 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; DMG GILDEMEISTER CTX-400-SERIE2 TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; DMG GILDEMEISTER CTX-500E TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; GITAL GT-500 TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; GRAZIANO 400C TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; HARDINGE TALENT 8/66 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; HYUNDAI SKT-21LMS TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; HYUNDAI SKT-15LMS TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; KIA SUPER KIA TURN SKT-15LM TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; KIA SUPER KIA TURN SKT-15LMS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; KIA SUPER KIA TURN SKT-21 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; KIA SUPER KIA TURN SKT-21L TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; KIA SUPER KIA TURN SKT-21LM TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; KIA SUPER KIA TURN SKT-21LMS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; KIA SUPER KIA TURN SKT-21LS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; WIA SKT-15LMS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; WIA SKT-21LMS TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; VICTOR VTURN-V560CV TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; VICTOR VTURN-V560 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; ANGELINI BRAVO TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; WFL WNC-300 TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; HEID S-300 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; GRAZIANO GT-500 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; GRAZIANO CTX-400 NO SUBSP TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; GRAZIANO GR-400C TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; DMG GILDEMEISTER CTX-400S2 TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; DMG GILDEMEISTER CTX-600E AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; DMG GILDEMEISTER CTX-600S2 AXIAL SAUTER TURRET VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; VOEST-ALPINE WNC-500S TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; CLAUSING TORNADO T-8M TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; CLAUSING TORNADO T-10M TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; CLAUSING TORNADO T-8MS TURRET SAUTER VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; VOEST-ALPINE WNC-400 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; VOEST-ALPINE WNC-300 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; WFL WNC-400 TURRET RADIAL VDI40 DIN5482 TURRET RADIAL (STAR TYPE), VDI 40, DIN5482, ; FAT TUR-630AMN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; FAT TUR-630MN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; FAT TUR-560MN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; FAT TUR-710MN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; FAT TUR-710AMN TURRET AXIAL SAUTER VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; FAT FCT-700 12-TLS TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; FAT FCT-700A 12-TLS TURRET SAUTER AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; KIA SUPER TURN ST-21LMS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; KIA KIA TURN KT-15LMS TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; WIA L-210LMSA TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; WIA L-150LMSA TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; DAEWOO PUMA-10S3A TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; DAEWOO PUMA-8HC3A TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; COLCHESTER TORNADO-T10M TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; DOOSAN DOOTURN S-390LM TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; KERN CD-480 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; FAT TUR-630MN-2000 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; MAHO GR-400 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; HEYLIGENSTAEDT HEYNUTWIN HT TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; MONFORTS RNC-600AC TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; KERN CD-650 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; MAHO GR-500 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; DMG GILDEMEISTER CT-60 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; HEYLIGENSTAEDT HEYNUMAT HN-5UK TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; HEYLIGENSTAEDT HEYNUMAT HN-5FK TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; MONFORTS KNC-8 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; MONFORTS RNC-400AC TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; MONFORTS RNC-500AC TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; MAHO MT-500C TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; STOREBRO STM-4000 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; MONFORTS MNC-5Y TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, Y-AXIS; STOREBRO STB-4000 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; VOEST-ALPINE WNC-300S TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; NILES-SIMMONS N-10LT DBL-TURRET AXIAL SAUTER VDI30 DIN5482 TURRET AXIAL, VDI 30, DIN5482, ; HESSAPP DVT-300 DBL-TURRET RADIAL VDI40 DIN5482 TURRET RADIAL (STAR TYPE), VDI 40, DIN5482, ; MAHO 500T TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; HESSAPP DVT-200 DBL-TURRET RADIAL VDI40 TURRET RADIAL (STAR TYPE), VDI 40, DIN5482, ; WEISSER SOEHNE UNIVERTOR A-90L TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; WEISSER SOEHNE VK C1-CNC TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; WAGNER WDST-780X1200 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; WAGNER WDST-780X700 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; WAGNER WDST-600X600 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; WAGNER WDST-780X1700 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; WAGNER WDST-600X1000 TURRET VDI40 DIN5482 TURRET ANY, VDI 40, DIN5482, ; WAGNER WDS-560A TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; WAGNER WDS-560 TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; WAGNER WDS-480 8-TLS TURRET AXIAL VDI40 DIN5482 TURRET AXIAL, VDI 40, DIN5482, ; DAINICHI DIN5482 B17x14 (40) TURRET RADIAL (STAR TYPE), VDI 40, DIN5482, ANY;
