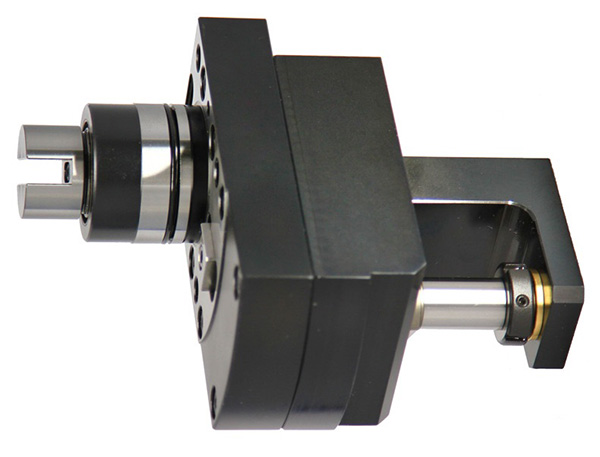

BMT BOLT PATTERN 70x70 AXIAL DRILLING MILLING HEAD OD=22 mm OFFSET L= 75 mm TAKISAWA EX308
THS013607
Compatible lathes
- TAKISAWA EX-910 TURRET RADIAL (STAR TYPE), TAKISAWA EX308 TAKISAWA LA250 60, TAKISAWA EX-LA SLOT,
- TAKISAWA EX-308 TURRET RADIAL (STAR TYPE), TAKISAWA EX308 TAKISAWA LA250 60, TAKISAWA EX-LA SLOT,
- TAKISAWA EX-310 TURRET RADIAL (STAR TYPE), TAKISAWA EX308 TAKISAWA LA250 60, TAKISAWA EX-LA SLOT,
- TAKISAWA EX-508 TURRET RADIAL (STAR TYPE), TAKISAWA EX308 TAKISAWA LA250 60, TAKISAWA EX-LA SLOT,
- TAKISAWA EX-510 TURRET RADIAL (STAR TYPE), TAKISAWA EX308 TAKISAWA LA250 60, TAKISAWA EX-LA SLOT,
- TAKISAWA LA-200Y TURRET RADIAL (STAR TYPE), TAKISAWA EX308 TAKISAWA LA250 60, TAKISAWA EX-LA SLOT, Y-AXIS
- TAKISAWA LA-250YH TURRET DIA.60 TURRET RADIAL (STAR TYPE), TAKISAWA EX308 TAKISAWA LA250 60, TAKISAWA EX-LA SLOT, Y-AXIS
- TAKISAWA LA-250Y TURRET RADIAL (STAR TYPE), TAKISAWA EX308 TAKISAWA LA250 60, TAKISAWA EX-LA SLOT, Y-AXIS
- TAKISAWA LA-250MH TURRET RADIAL (STAR TYPE), TAKISAWA EX308 TAKISAWA LA250 60, TAKISAWA EX-LA SLOT,
- TAKISAWA NEX-908 TURRET RADIAL (STAR TYPE), TAKISAWA EX308 TAKISAWA LA250 60, TAKISAWA EX-LA SLOT, ANY
- TAKISAWA LA-200M TURRET DIA.60 TURRET
- TAKISAWA EX-708 TURRET RADIAL (STAR TYPE), TAKISAWA EX308 TAKISAWA LA250 60, TAKISAWA EX-LA SLOT, ANY
- TAKISAWA EX-710 TURRET RADIAL (STAR TYPE), TAKISAWA EX308 TAKISAWA LA250 60, TAKISAWA EX-LA SLOT, ANY
- TAKISAWA LA-250M TURRET RADIAL (STAR TYPE), TAKISAWA EX308 TAKISAWA LA250 60, TAKISAWA EX-LA SLOT, ANY
- TAKISAWA TT-350MC TURRET RADIAL (STAR TYPE), TAKISAWA EX308 TAKISAWA LA250 60, TAKISAWA EX-LA SLOT, ANY
$ USD
266800
266800

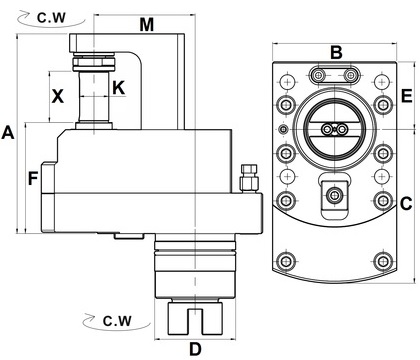

| SKU | D | X Capacity |
RPM | Gear Ratio |
A | B | C | E | F | K | M | TAKISAWA LATHE |
| THS013607 | 60 | 38 | 3000 | 2 : 1 | 148 | 92 | 114 | 50 | 82 | 22 | 75 | TAKISAWA EX308 TAKISAWA LA200M TAKISAWA LA250MH TAKISAWA LA200Y TAKISAWA LA250Y TAKISAWA LA250YH |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS013607 BMT BOLT PATTERN 70x70 AXIAL DRILLING MILLING HEAD OD=22 mm OFFSET L= 75 mm TAKISAWA EX308 | ||||||
| STRAIGHT | 22 mm | 75 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | OFFSET |
Updated 202505.11
Tool holder machine interface: RADIAL (STAR TYPE) turret, TAKISAWA EX308 TAKISAWA LA250-60, TAKISAWA EX-LA SLOT, ANY
