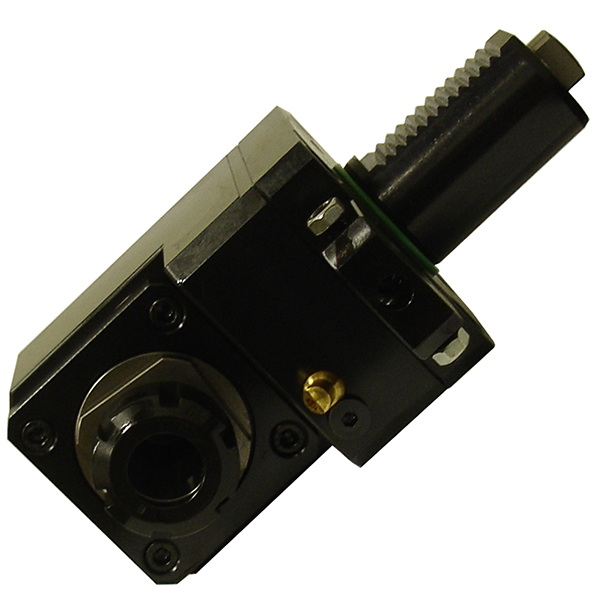

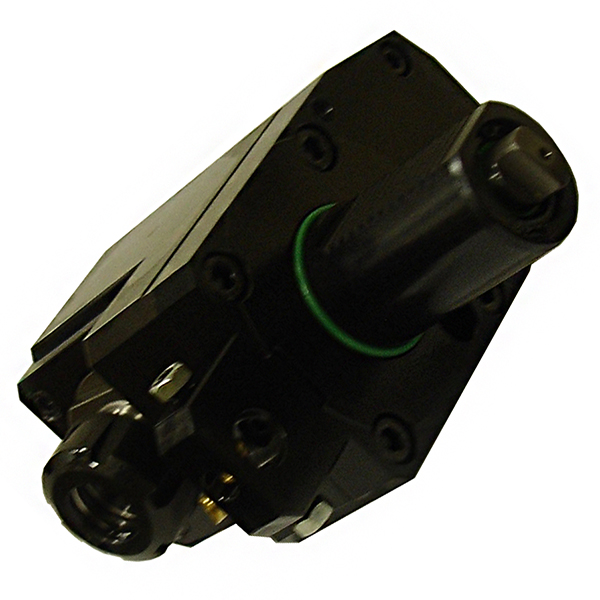

Name: TAKAMAZ XY2000 RADIAL DRILLING MILLING HEAD ER25 L=90 mm BACK SET 43 mm
Price: 3722 USD
Availability: InStock

Home >> Tool Holder Driven (Live Tooling) >> TAKAMAZ Drilling-Milling Heads >> TAKAMAZ XY2000 RADIAL DRILLING MILLING HEAD ER25 L=90 mm BACK SET 43 mm

$ USD

3722⁰⁰

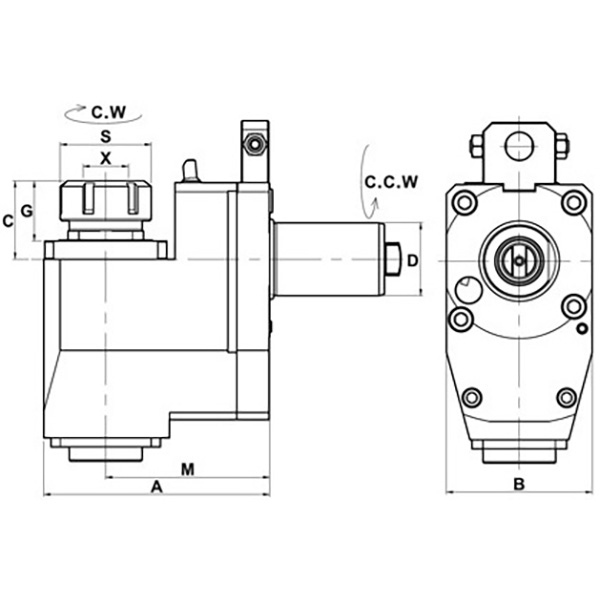

SKU	D	X Capacity	S	RPM	A	B	C	G	M	TAKAMAZ LATHE
THS001476	40	1~16 ER25	42	5000	124	80	33	27	90	TAKAMAZ XY-2000
THS001477	40	2~20 ER32	50	5000	124	80	43	33	90	TAKAMAZ XY-2000

Updated 2022-02-23

DIRECTION	CAPACITY	PROJECTION	ROTATION	HAND	COOLANT	OFFSET
THS001476 TAKAMAZ XY2000 RADIAL DRILLING MILLING HEAD ER25 L=90 mm BACK SET 43 mm
ANGLE 90 DEGREE	ER25	90 mm	CW-CW 1:1	STRAIGHT	EXTERNAL COOLANT	BACK SET
THS001477 TAKAMAZ XY2000 RADIAL DRILLING MILLING HEAD ER32 L=90 mm BACK SET 43 mm
ANGLE 90 DEGREE	ER32	90 mm	CW-CW 1:1	STRAIGHT	EXTERNAL COOLANT	BACK SET

Updated 202507.03

Tool holder machine interface: ANY turret, TAKAMAZ XY2000-40, DIN1809, ANY

TAKAMAZ XY2000 RADIAL DRILLING MILLING HEAD ER25 L=90 mm BACK SET 43 mm

THS001476

Compatible lathes

TAKAMAZ XY2000 RADIAL DRILLING MILLING HEAD ER25 L=90 mm BACK SET 43 mm THS001476

Compatible lathes

TAKAMAZ XY2000 RADIAL DRILLING MILLING HEAD ER25 L=90 mm BACK SET 43 mm

THS001476
