BMT BOLT PATTERN 40x55 AXIAL FACE MILLING HEAD OD=22 mm L=67 mm FOR NAKAMURA WT100 NTJ100
THS004943
Compatible lathes
- NAKAMURA WT-100 TURRET DIA.44 TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809,
- NAKAMURA SUPER-NTMX TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809,
- NAKAMURA NTJ-100 TURRET PCD-300 DIA.44 TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809,
- NAKAMURA WY-100 TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809, Y-AXIS
- NAKAMURA NTY3-250 3 TURRETS TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809, ANY
$ USD
144900
144900

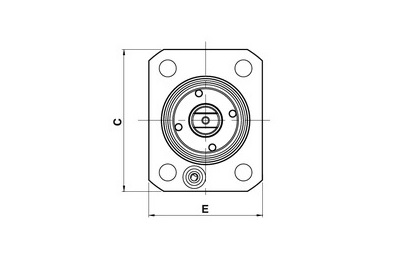

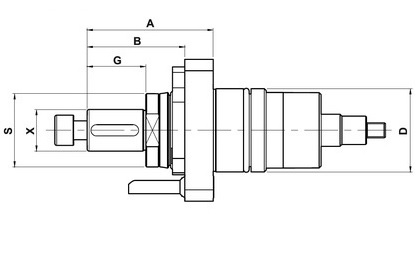

| SKU | NAKAMURA LATHE | D | X DIN 6358 |
S | RPM | A | B | C | E | G |
| THS004943 | WT-100 | 44 | 22 | 40 | 3000 | 67 | 45 | 75 | 60 | 31 |
| THS005803 | WT-150 | 55 | 22 | 40 | 3000 | 64.5 | 50.5 | 84 | 79 | 31 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004943 BMT BOLT PATTERN 40x55 AXIAL FACE MILLING HEAD OD=22 mm L=67 mm FOR NAKAMURA WT100 NTJ100 | ||||||
| STRAIGHT | 22 mm | 67 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS005803 BMT BOLT PATTERN 50x60 AXIAL FACE MILLING HEAD OD=22 mm L=65 mm FOR NAKAMURA WT150 | ||||||
| STRAIGHT | 22 mm | 65 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: RADIAL (STAR TYPE) turret, NAKAMURA WT100 NAKAMURA NTJ100 BMT44-44, DIN1809, ANY
COMPATIBLE LATHES
NAKAMURA WT-100 TURRET DIA.44 TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809, ; NAKAMURA SUPER-NTMX TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809, ; NAKAMURA NTJ-100 TURRET PCD-300 DIA.44 TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809, ; NAKAMURA WY-100 TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809, Y-AXIS; NAKAMURA NTY3-250 3 TURRETS TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809, ANY;
