NAKAMURA 69x71 AXIAL DRILLING MILLING HEAD ER32 L= 76 mm IC NAKAMURA R2390 NAKAMURA WT300
THS006308
Compatible lathes
- NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809,
- NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
$ USD
204300
204300

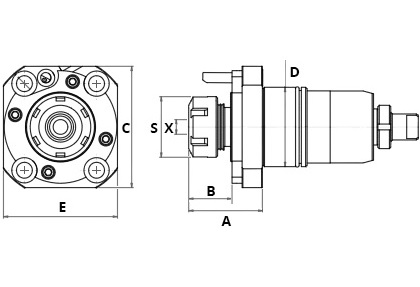

| SKU | D | ER size | S | RPM | A | B | C | E | NAKAMURA LATHE | NAKAMURA OEM |
| THS004306 | 44 | 1~13 ER20 | 35 | 6000 | 52 | 30 | 75 | 60 | NAKAMURA WT-100 | |
| - | 1~16 ER25 | 42 | 58 | 37 | 75 | 60 | ||||
| - | 55 | 1~10 ER16M | 22 | 6000 | 91 | 77 | 84 | 79 | NAKAMURA WT-150 | |
| THS005807 | 1~16 ER25 | 42 | 51 | 30 | 84 | 79 | NAKAMURA AC1310 | |||
| THS005808 | 2~20 ER32 | 50 | 62 | 41 | 84 | 79 | ||||
| THS003885 | 65 | 2~20 ER32 | 50 | 6000 | 57 | 35 | 100 | 96 | NAKAMURA WT-300 | |
| THS006308 | 2~20 ER32 | 50 | 75.7 | 40.2 | 100 | 96 |
* CTS - Coolant-
Updated 2022-02-23
Updated 202504.30
Tool holder machine interface: ANY turret, NAKAMURA WT300-65, DIN1809, ANY
Updated 2022-02-23
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS003885 NAKAMURA 69x71 AXIAL DRILLING MILLING HEAD ER32 L=57 mm NAKAMURA R2390 NAKAMURA WT300 | ||||||
| STRAIGHT | ER32 | 57 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS004306 BMT BOLT PATTERN 40x55 AXIAL DRILLING MILLING HEAD ER20 L= 52 mm FOR NAKAMURA WT100 | ||||||
| STRAIGHT | ER20 | 52 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |

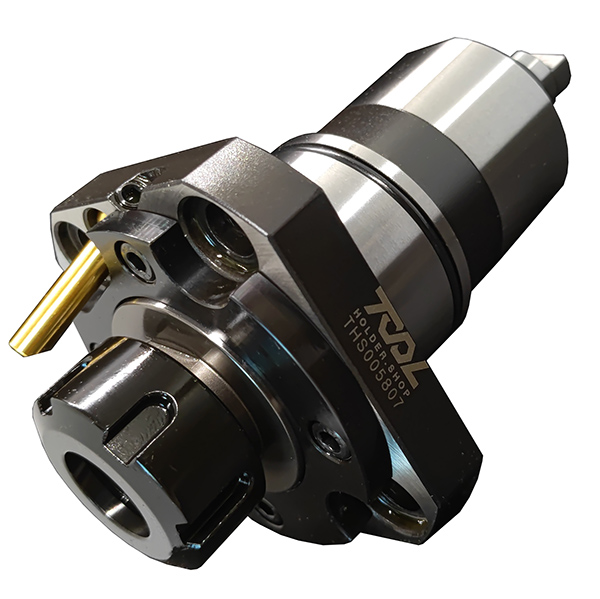

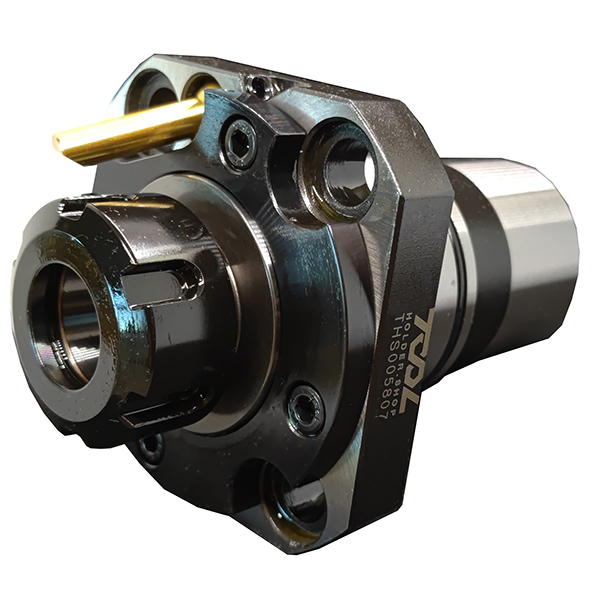

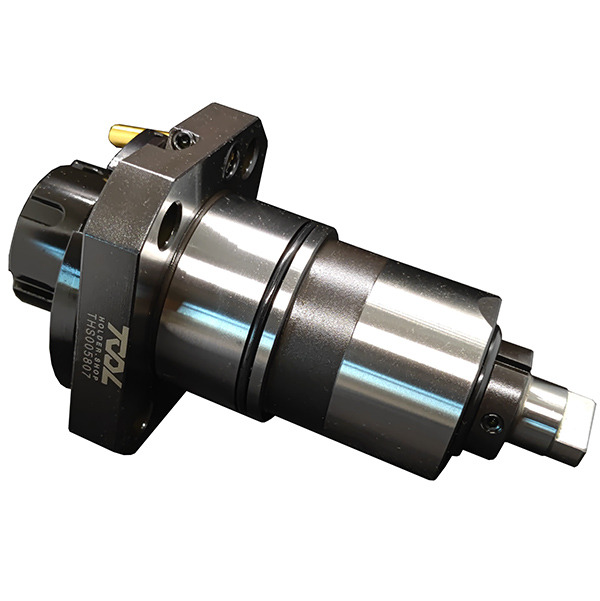

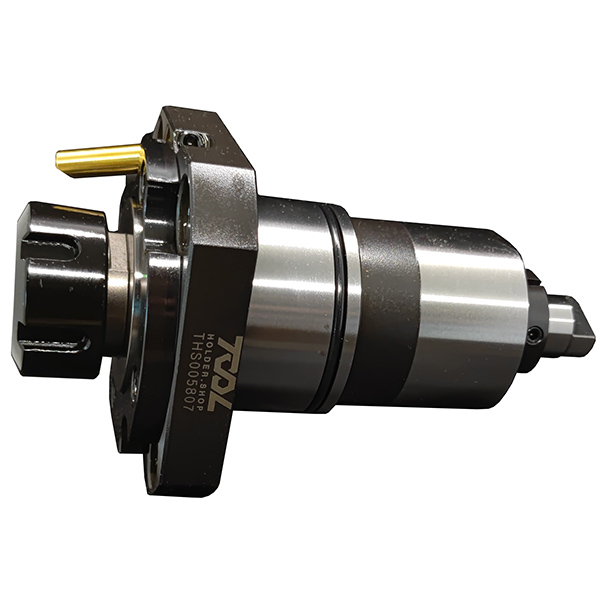

| THS005807 BMT BOLT PATTERN 50x60 AXIAL DRILLING MILLING HEAD ER25 L= 51 mm NAKAMURA WT150 | ||||||
| STRAIGHT | ER25 | 51 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS005808 BMT BOLT PATTERN 50x60 AXIAL DRILLING MILLING HEAD ER32 L= 62 mm FOR NAKAMURA WT150 | ||||||
| STRAIGHT | ER32 | 62 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS006308 NAKAMURA 69x71 AXIAL DRILLING MILLING HEAD ER32 L= 76 mm IC NAKAMURA R2390 NAKAMURA WT300 | ||||||
| STRAIGHT | ER32 | 76 mm |
CW-CW 1:1 |
STRAIGHT | INTERNAL COOLANT THROUGH | STRAIGHT |
| THS006789 BMT BOLT PATTERN 40x55 AXIAL DRILLING MILLING HEAD ER25 L= 58 mm FOR NAKAMURA WT100 | ||||||
| STRAIGHT | ER25 | 58 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS006790 BMT BOLT PATTERN 50x60 AXIAL DRILLING MILLING HEAD ER16M L= 91 mm FOR NAKAMURA WT100 | ||||||
| STRAIGHT | ER16 | 91 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS007283 BMT BOLT PATTERN 50x60 AXIAL DRILLING MILLING HEAD ER16A L= 61 mm SPEEDER 1:2.25 WT150 | ||||||
| STRAIGHT | ER16 | 61 mm |
CW-CW SPEEDER |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS007284 BMT BOLT PATTERN 50x60 AXIAL DRILLING MILLING HEAD ER16 L= 61 mm FOR NAKAMURA WT150 | ||||||
| STRAIGHT | ER16 | 61 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
| THS015667 BMT BOLT PATTERN 50x60 AXIAL DRILLING MILLING HEAD ER25A L= 53 mm FOR NAKAMURA WT150 | ||||||
| STRAIGHT | ER25 | 53 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202504.30
Tool holder machine interface: ANY turret, NAKAMURA WT300-65, DIN1809, ANY
