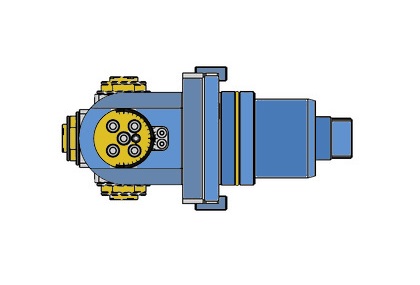

BMT BOLT PATTERN 69x71 UNIVERSAL DRILLING MILLING HEAD ER16 L=109 NAKAMURA SUPERMILL WT150
THS005784
Compatible lathes
- NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809,
- NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
$ USD
874100
874100

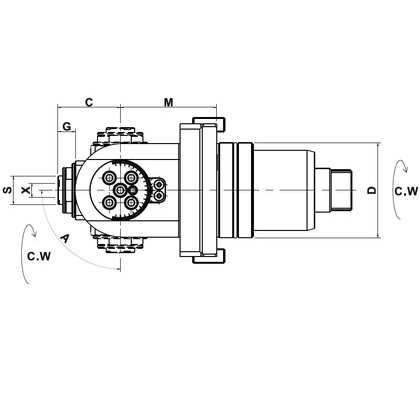

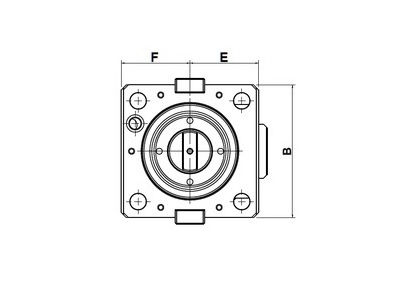

| SKU | SUPER LATHE | D | X Capacity |
S | RPM | A | B | C | E | F | G | M |
| THS005784 | SUPER WT-150 | 65 | 1~10 ER16 | 19.5 | 4000 | ±90° | 91 | 43 | 47 | 47 | 12 | 66 |
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS005784 BMT BOLT PATTERN 69x71 UNIVERSAL DRILLING MILLING HEAD ER16 L=109 NAKAMURA SUPERMILL WT150 | ||||||
| UNIVERSAL | ER16 | 109 mm |
CW-CW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: RADIAL (STAR TYPE) turret, NAKAMURA WT300-65, DIN1809, ANY
COMPATIBLE LATHES
NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, ; NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS;
