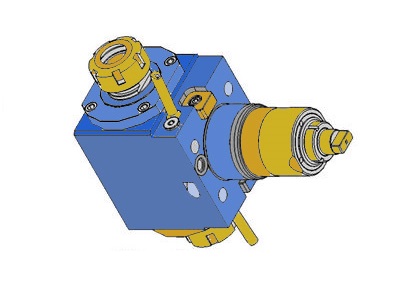

BMT BOLT PATTERN 69x71 RADIAL DRILLING MILLING HEAD DOUBLE 2xER32 L=65 FOR NAKAMURA WT300
THS004324
Compatible lathes
- NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809,
- NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
- NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS
$ USD
508800
508800

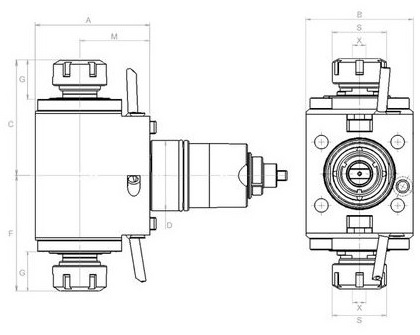

| SKU | NAKAMURA LATHE | D | X Capacity |
S | RPM | A | B | C | F | G | M |
| THS004319 | NAKAMURA WT-150 | 55 | 1~16 ER25 | 42 | 4000 | 90 | 84 | 91 | 91 | 31 | 55 |
| THS004324 | NAKAMURA WT-300 | 65 | 2~20 ER32 | 50 | 4000 | 108 | 96 | 96 | 96 | 33 | 65 |
Updated 2022-02-23
| SKU | Interface | Direction | Capacity | Projection | Rotation | Hand | Coolant | Offset | |
| THS004324 | BMT BOLT PATTERN 69x71 RADIAL DRILLING MILLING HEAD DOUBLE 2xER32 L=65 FOR NAKAMURA WT300 | ||||||||
|
NAKAMURA WT300 65 DIN1809 |
|
||||||||
| THS004325 | BMT BOLT PATTERN 50x60 RADIAL DRILLING MILLING HEAD DOUBL 2xER25 L=55mm FOR NAKAMURA WT150 | ||||||||
|
NAKAMURA WT150 50x60 55 DIN1809 |
|
||||||||
Updated 202301
Tool holder machine interface: RADIAL (STAR TYPE) turret, NAKAMURA WT300-65, DIN1809, ANY
COMPATIBLE LATHES
NAKAMURA WT-300 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, ; NAKAMURA SUPERMILL WY-250L TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS; NAKAMURA SUPERMILL WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT300 65, DIN1809, Y-AXIS;
