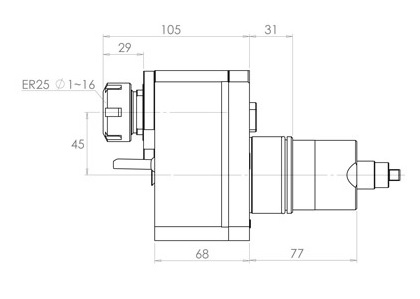

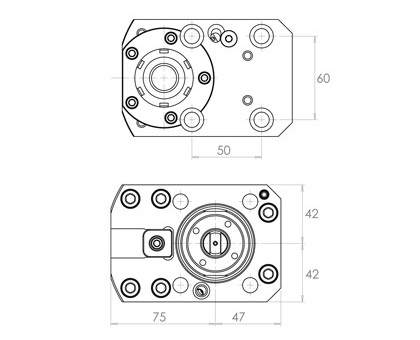

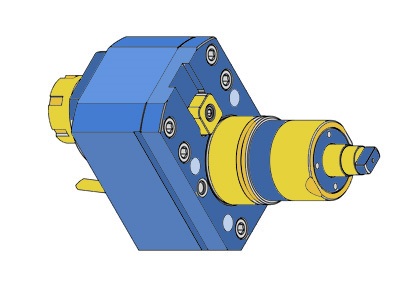

BMT BOLT PATTERN 50x60 AXIAL DRILLING MILLING HEAD ER25 OFFSET L= 45 mm 1:2 12000 WT150
THS005804
Compatible lathes
- NAKAMURA TW-10MMYY TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, Y-AXIS
- NAKAMURA SC-150 TURRET
- NAKAMURA WT-250II TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA WTW-150 TURRET BMT55 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA WTS-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA WT-150 24-TLS TURRET DIA. 55 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA SUPER-NTM3 TURRET BMT55 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA TW-10M TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA AS-200 15-TLS TURRET BMT55 TURRET
- NAKAMURA WT-150LB TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, Y-AXIS
- NAKAMURA SC-200MY TURRET
- NAKAMURA SC-250M TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA NTM-3 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
- NAKAMURA AS-200 12 TOOLS STAR TURRET BMT55 TURRET
- NAKAMURA SC-150M TURRET
- NAKAMURA TW-10MY TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, Y-AXIS
- NAKAMURA WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ANY
- NAKAMURA TW-10MMY TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, Y-AXIS
- NAKAMURA TW-10MM TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809,
221200
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS005804 BMT BOLT PATTERN 50x60 AXIAL DRILLING MILLING HEAD ER25 OFFSET L= 45 mm 1:2 12000 WT150 | ||||||
| STRAIGHT | ER25 | 45 mm |
CW-CW SPEEDER |
STRAIGHT | EXTERNAL COOLANT | OFFSET |
Updated 202404
Tool holder machine interface: RADIAL (STAR TYPE) turret, NAKAMURA WT150 50x60-55, DIN1809, ANY
COMPATIBLE LATHES
NAKAMURA TW-10MMYY TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, Y-AXIS; NAKAMURA SC-150 TURRET ; NAKAMURA WT-250II TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA WTW-150 TURRET BMT55 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA WTS-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA WT-150 24-TLS TURRET DIA. 55 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA SUPER-NTM3 TURRET BMT55 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA TW-10M TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA AS-200 15-TLS TURRET BMT55 TURRET ; NAKAMURA WT-150LB TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA WT-150 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA WY-250 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, Y-AXIS; NAKAMURA SC-200MY TURRET ; NAKAMURA SC-250M TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA NTM-3 TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ; NAKAMURA AS-200 12 TOOLS STAR TURRET BMT55 TURRET ; NAKAMURA SC-150M TURRET ; NAKAMURA TW-10MY TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, Y-AXIS; NAKAMURA WT-150II TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ANY; NAKAMURA TW-10MMY TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, Y-AXIS; NAKAMURA TW-10MM TURRET RADIAL (STAR TYPE), NAKAMURA WT150 50x60 55, DIN1809, ;
