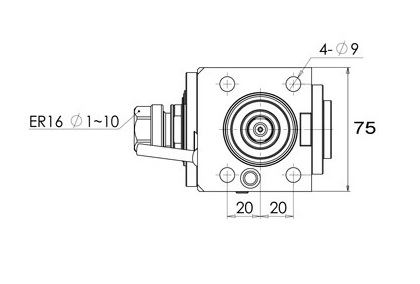

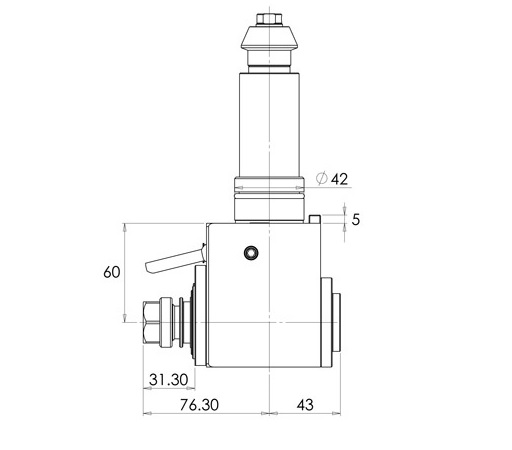

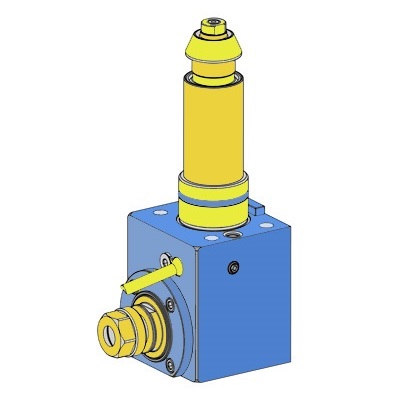

BMT BOLT PATTERN 40x55 RADIAL DRILLING MILLING HEAD ER16 L= 60 mm NAKAMURA GTS150 GLS150
THS013933
Compatible lathes
- GOODWAY GTS-260 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- GOODWAY GTS-150M TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- NAKAMURA TW-8MM TURRET DIA.42 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- NAKAMURA TW-10ALT TURRET DIA.42 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- GOODWAY GTS-200 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- NAKAMURA TW-8MR TURRET DIA.42 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- NAKAMURA TW-8ML TURRET DIA.42 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- GOODWAY GTS-200M TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- GOODWAY GTS-200MS TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- GOODWAY GTS-100 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
- GOODWAY GLS-150 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR, ANY
- GOODWAY GTS-150 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR,
228800
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS013933 BMT BOLT PATTERN 40x55 RADIAL DRILLING MILLING HEAD ER16 L= 60 mm NAKAMURA GTS150 GLS150 | ||||||
| ANGLE 90 DEGREE | ER16 | 60 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202404
Tool holder machine interface: RADIAL (STAR TYPE) turret, NAKAMURA TW8-42, BEVEL GEAR, ANY
COMPATIBLE LATHES
GOODWAY GTS-260 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR, ; GOODWAY GTS-150M TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR, ; NAKAMURA TW-8MM TURRET DIA.42 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR, ; NAKAMURA TW-10ALT TURRET DIA.42 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR, ; GOODWAY GTS-200 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR, ; NAKAMURA TW-8MR TURRET DIA.42 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR, ; NAKAMURA TW-8ML TURRET DIA.42 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR, ; GOODWAY GTS-200M TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR, ; GOODWAY GTS-200MS TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR, ; GOODWAY GTS-100 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR, ; GOODWAY GLS-150 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR, ANY; GOODWAY GTS-150 TURRET RADIAL (STAR TYPE), NAKAMURA TW8 42, BEVEL GEAR, ;
