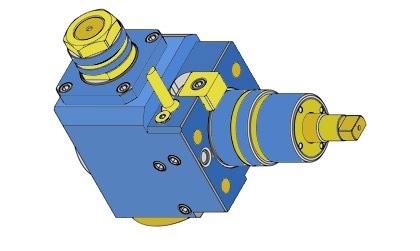

BMT BOLT PATTERN 40x55 RADIAL SIDE CUTTING HEAD OD=( 1)" L= 60 mm FOR NAKAMURA WT100
THS004312
Compatible lathes
- NAKAMURA WT-100 TURRET DIA.44 TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809,
- NAKAMURA SUPER-NTMX TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809,
- NAKAMURA NTJ-100 TURRET PCD-300 DIA.44 TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809,
- NAKAMURA WY-100 TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809, Y-AXIS
- NAKAMURA NTY3-250 3 TURRETS TURRET RADIAL (STAR TYPE), NAKAMURA WT100 NAKAMURA NTJ100 BMT44 44, DIN1809, ANY
$ USD
335700
335700
.
Updated 202505.11
Tool holder machine interface: RADIAL (STAR TYPE) turret, NAKAMURA WT100 NAKAMURA NTJ100 BMT44-44, DIN1809, ANY
| DIRECTION | CAPACITY | PROJECTION | ROTATION | HAND | COOLANT | OFFSET |
| THS004312 BMT BOLT PATTERN 40x55 RADIAL SIDE CUTTING HEAD OD=( 1)" L= 60 mm FOR NAKAMURA WT100 | ||||||
| ANGLE 90 DEGREE | ( 1)" | 60 mm |
CW-CCW 1:1 |
STRAIGHT | EXTERNAL COOLANT | STRAIGHT |
Updated 202505.11
Tool holder machine interface: RADIAL (STAR TYPE) turret, NAKAMURA WT100 NAKAMURA NTJ100 BMT44-44, DIN1809, ANY
